CRANKCASE COVER
DR600SU 1986 (G) GERMANY (E22)

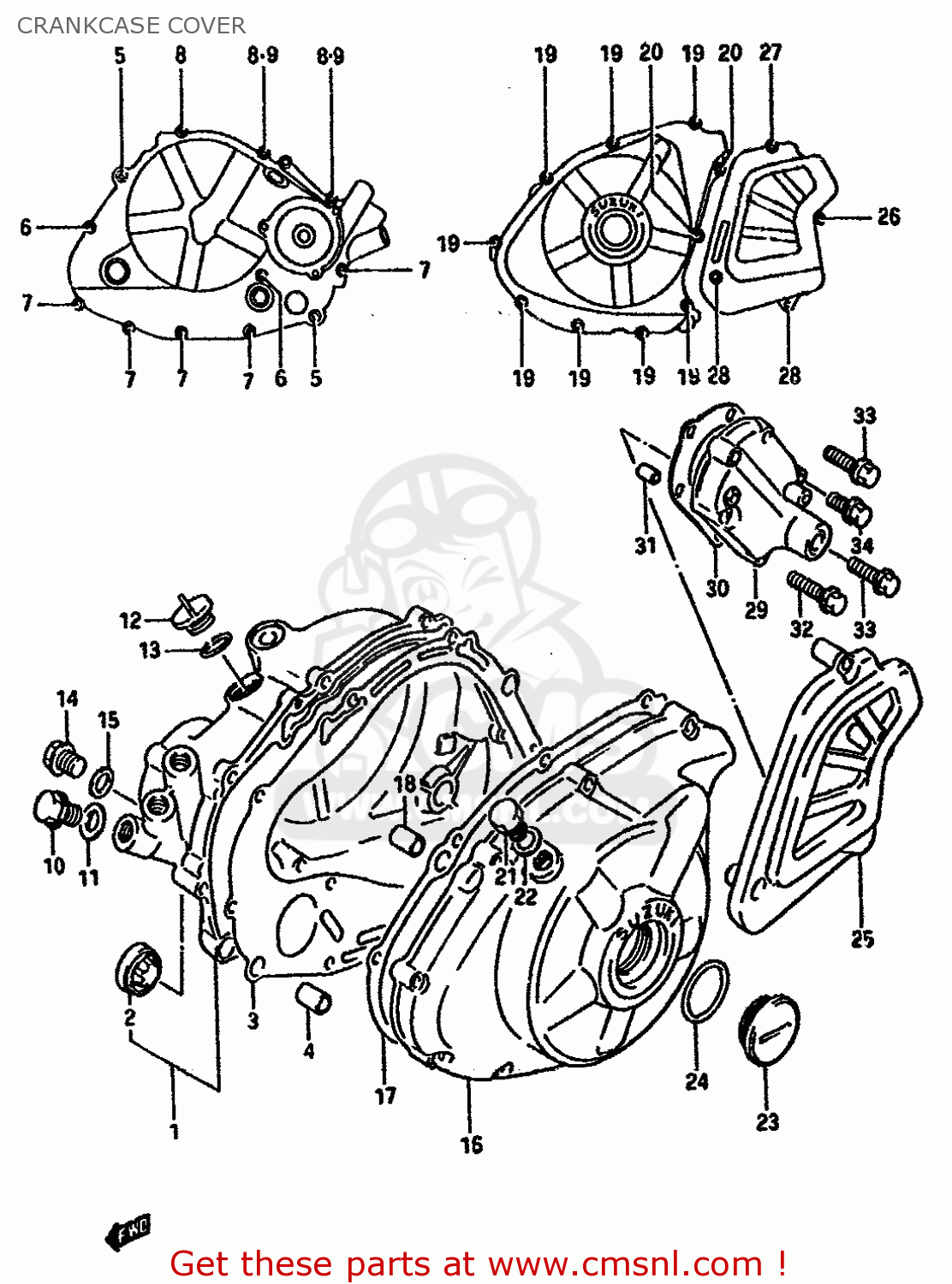

Crankcase cover diagram DR600SU 1986 (G) GERMANY (E22)
CRANKCASE COVER DR600SU 1986 (G) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134014A03
ref: 1-1
MODEL F/G/H TO 11340
COVER,CLUTCH
€ 186.50
1-2
1134014A04
ref: 1-2
MODEL J/K
COVER,CLUTCH
€ 186.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3-1
1148214A01
ref: 3-1
MODEL F/G/H TO 11482
GASKET,CLUTCH COVER
€ 29.50
3-2
1148214A03
ref: 3-2
MODEL J/K
GASKET,CLUTCH COVER (MCA)
€ 29.50
3-3
1148214A03H17
ref: 3-3
E17
GASKET,CLUTCH COVER (NAS)
€ 29.50
4
0920613001
ref: 4
PIN
€ 2.50
5
0154706505
ref: 5
BOLT 6X50
€ 3.50
6
0154706404
ref: 6
BOLT 6X40
€ 3.00
7
0154706354
ref: 7
BOLT 6X35
€ 3.00
8
0154706254
ref: 8
BOLT 6X25
€ 2.50
9
0916806023
ref: 9
FROM 09168-06015
GASKET(5.8X13X1.2) (NAS)
€ 2.00
10
0924714015
ref: 10
PLUG(14X12)
€ 2.50
11
0916814004
ref: 11
GASKET(14X19.2X2) (NAS)
€ 2.50
12-1
0925920008
ref: 12-1
MODEL F
PLUG
€ 6.50
12-2
0925920013
ref: 12-2
MODEL G/H/J/K
PLUG
€ 9.50
13
0928017003
ref: 13
O RING(D:3.1,ID:16.8)
€ 2.00
14
0924714015
ref: 14
PLUG(14X12)
€ 2.50
15
0916814004
ref: 15
GASKET(14X19.2X2) (NAS)
€ 2.50
16-1
1135114A00
ref: 16-1
MODEL F
COVER,MAGNETO
€ 143.50
16-2
1135114A10
ref: 16-2
MODEL G/H/J/K
COVER,MAGNETO
€ 129.00
17-1
1148314A00
ref: 17-1
GASKET,MAGNETO COVER (MCA)
€ 41.00
17-2
1148314A00H17
ref: 17-2
E17
GASKET,MAGNETO COVER (NA) (MCA)
€ 41.00
18
0920613001
ref: 18
PIN
€ 2.50
19
0154706304
ref: 19
BOLT 6X30
€ 2.50
20
0154706254
ref: 20
BOLT 6X25
€ 2.50
21
0924712103
ref: 21
PLUG(12X9)
€ 3.50
22
0916812002
ref: 22
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
23
0925936007
ref: 23
PLUG
€ 10.50
24
0928033004
ref: 24
O RING(D:3.1,ID:32.7)
€ 2.50
25
1136114A01
ref: 25
COVER,ENGINE SPROCKET
€ 48.50
26
0154706454
ref: 26
BOLT
€ 3.00
27
0154706354
ref: 27
BOLT 6X35
€ 3.00
28
0154706205
ref: 28
BOLT 6X20
€ 2.50
29
1137137400
ref: 29
COVER,GEAR SHIFT
€ 37.00
30-1
1148514A00
ref: 30-1
GASKET,GEAR SHIFT COVER (MCA)
€ 4.50
30-2
1148514A00H17
ref: 30-2
E17
GASKET,GEAR SHIFT COVER (NA) (MCA)
€ 4.50
31
0421109129
ref: 31
PIN
€ 2.00
32
0154706354
ref: 32
BOLT 6X35
€ 3.00
33
0154706304
ref: 33
BOLT 6X30
€ 2.50
34
0154706205
ref: 34
BOLT 6X20
€ 2.50
