STAND-REAR BRAKE
DR600SU 1986 (G) GERMANY (E22)

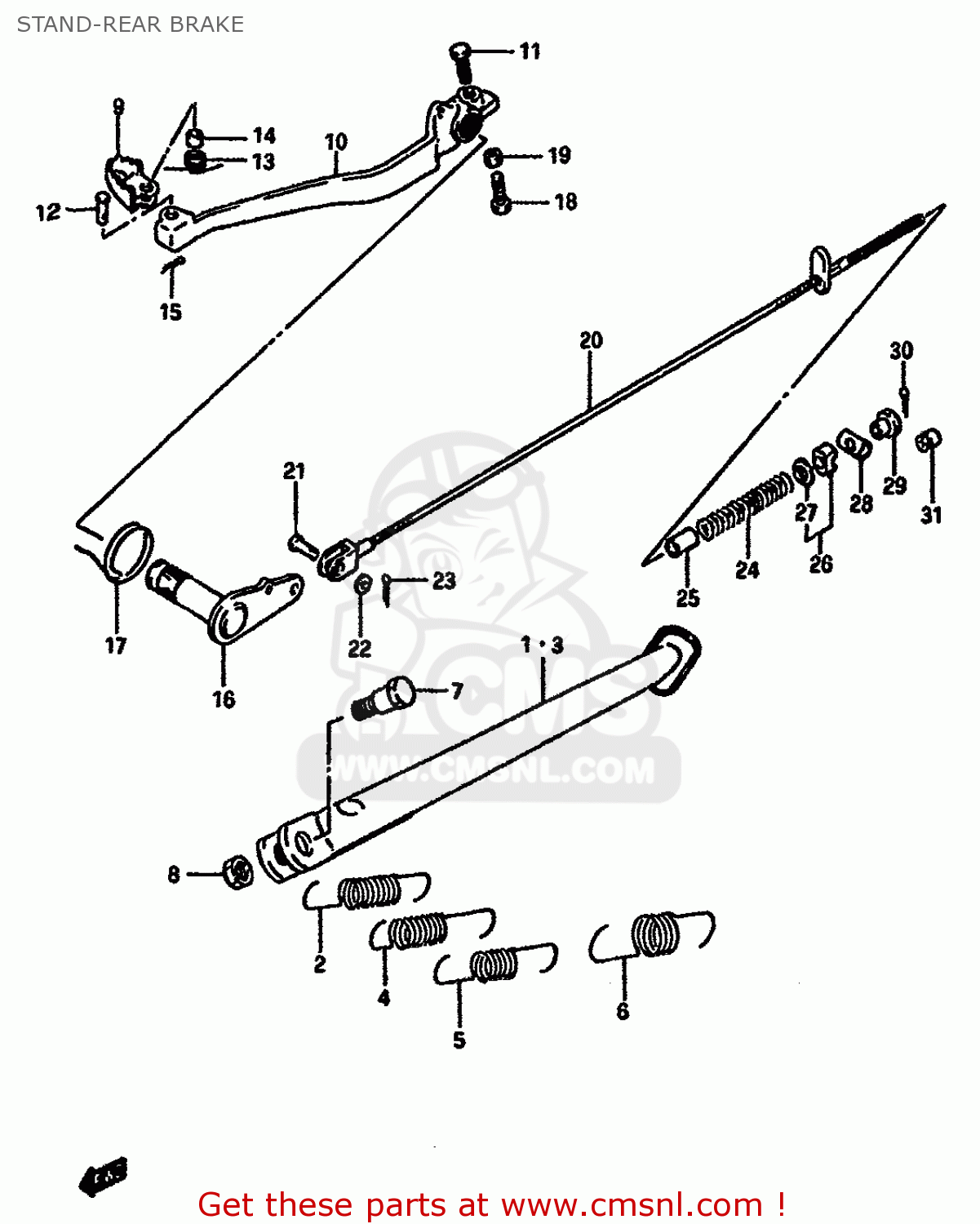

Stand-rear brake diagram DR600SU 1986 (G) GERMANY (E22)
STAND-REAR BRAKE DR600SU 1986 (G) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
4231014A00019
ref: 1-1
MODEL F/G/H FOR 14C,
STAND,SIDE
€ 64.50
1-2
4231014A0019F
ref: 1-2
MODEL F/G FOR 10V,21
STAND, PROP (BLUE)
€ 64.50
1-3
4231014A0034S
ref: 1-3
MODEL H FOR 14L,21C
STAND,PROP (BLUE)
€ 64.50
2
0944315015
ref: 2
MODEL F/G/H
SPRING
€ 5.50
3-1
4231014A10019
ref: 3-1
MODEL F/G/H E15,E16,
STAND, PROP (BLACK)
€ 43.00
3-2
4231014A1019F
ref: 3-2
MODEL F/G/H E15,E16,
STAND,PROP (BLUE)
€ 43.00
3-3
4231014A1034S
ref: 3-3
MODEL H E2,E39 FOR 1
STAND, PROP (BLUE)
€ 43.00
3-4
4231014A20019
ref: 3-4
MODEL J/K FOR 34S
STAND,SIDE
€ 662.50
3-5
4231014A2034S
ref: 3-5
MODEL J/K FOR 14L,21
STAND, PROP (BLUE)
€ 662.50
4
0944318015
ref: 4
MODEL F/G/H E15,E16,
SPRING
€ 5.50
5
0944314030
ref: 5
E22,MODEL J/K
SPRING
€ 6.00
6
0944322003
ref: 6
E22,MODEL J/K
SPRING
€ 7.00
7-1
0911110019
ref: 7-1
MODEL F/G/H
BOLT L:30
€ 4.50
7-2
0911110038
ref: 7-2
MODEL J/K
BOLT L:30
€ 4.50
8
0831022107
ref: 8
NUT
€ 2.50
9
4311014130
ref: 9
PEDAL,BRAKE
€ 6.00
10
4312014A00
ref: 10
ARM,BRAKE PEDAL
€ 41.50
11
0110706205
ref: 11
BOLT
€ 2.00
12
0920006038
ref: 12
PIN
€ 2.00
13
0944411004
ref: 13
SPRING
€ 3.00
14
0918006137
ref: 14
SPACER(9.2X9X6.5)
€ 2.50
15
0411120158
ref: 15
PIN
€ 1.50
16
4313014A00
ref: 16
ARM,BRAKE PEDAL ROD
€ 27.00
17
0944825005
ref: 17
SPRING
€ 3.50
18
0910006009
ref: 18
BOLT(6X23)
€ 1.50
19
0831011067
ref: 19
NUT 6MM
€ 2.50
20
5851014A00
ref: 20
CABLE,RR BRAKE
€ 13.00
21
0920005001
ref: 21
PIN(L:17.5)
€ 1.50
22
0832221066
ref: 22
WASHER, LOWER
€ 2.00
23
0411120158
ref: 23
PIN
€ 1.50
24
0944011012
ref: 24
SPRING
€ 3.00
25
6115579000
ref: 25
CUSHION,FR GRILLE,UPPER
€ 13.00
26
4337037300
ref: 26
CUSHION
€ 5.50
27
0916906010
ref: 27
WASHER
€ 3.00
28
4338037200
ref: 28
PIN,BRAKE CABLE ADJUSTER
€ 16.00
29
0915006009
ref: 29
NUT (6MM)
€ 3.50
30
0411120158
ref: 30
PIN
€ 1.50
31
1591853016
ref: 31
E22
CAP
€ 0.00
