LEFT HANDLE SWITCH
DR600SU 1986 (G) GERMANY (E22)

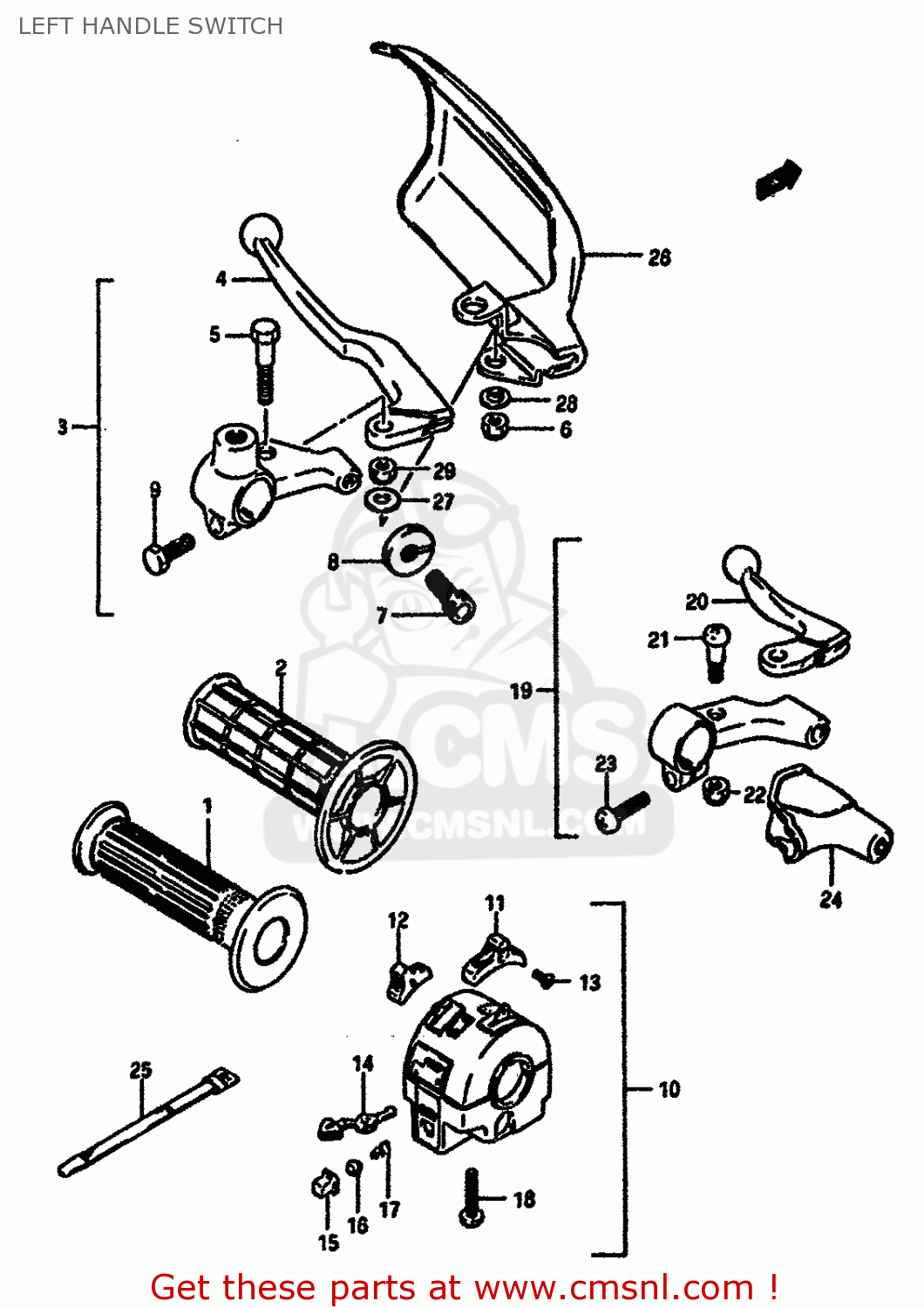

Left handle switch diagram DR600SU 1986 (G) GERMANY (E22)
LEFT HANDLE SWITCH DR600SU 1986 (G) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
5721145020
ref: 1
GRIP,L
€ 9.00
2
5721140201
ref: 2
MODEL H/J/K E18
GRIP,LEFT
€ 11.00
3
5750014A00
ref: 3
LEVER ASSY,CLUTCH
€ 52.00
4
5762049101
ref: 4
LEVER,CLUTCH
€ 28.50
5
5753114A00
ref: 5
BOLT,LEVER SET
€ 8.50
6
0831921065
ref: 6
NUT
€ 2.50
7
5744144400
ref: 7
ADJUSTER,CABLE
€ 5.50
8
5744244400
ref: 8
NUT,CABLE ADJUSTER LOCK
€ 4.00
9
0110706205
ref: 9
BOLT
€ 2.00
10-1
3740014A10
ref: 10-1
E1,E6,E24
SWITCH ASSY,HANDLE,LH
€ 0.00
10-2
3740001A00
ref: 10-2
E2,E4,E15,E16,E17,E1
SWITCH ASSY,HANDLE LH
€ 108.00
10-3
3740014A40
ref: 10-3
E34,E53
SWITCH ASSY,HANDLE,LH
€ 122.50
11
3741145012
ref: 11
KNOB,LIGHTING SWITCH
€ 4.50
12
3742145012
ref: 12
KNOB,DIMMER SWITCH
€ 5.50
13
0212203068
ref: 13
SCREW
€ 1.00
14
3751345011
ref: 14
KNOB,TURNSIGNAL
€ 6.50
15
5737145000
ref: 15
BUTTON,HORN
€ 3.00
16
5737245000
ref: 16
CONTACT
€ 3.00
17
5738245000
ref: 17
SPRING
€ 2.50
18
0211205257
ref: 18
SCREW
€ 2.00
19
5870038200
ref: 19
LEVER ASSEMBLY,DECOMPRESSION
€ 169.50
20
5873138200
ref: 20
LEVER,DECOMP
€ 42.00
21
5743101011
ref: 21
BOLT,LEVER
€ 5.00
22
5763338200
ref: 22
NUT
€ 2.00
23
0211206205
ref: 23
SCREW
€ 2.00
24
5734237101
ref: 24
COVER,DECOMP LEVER DUST
€ 9.50
25
0940712402
ref: 25
CLAMP(L:120)
€ 3.00
26-1
5754114A0021C
ref: 26-1
COVER,KNUCKLE,L
€ 15.50
26-2
5754114A0010Y
ref: 26-2
MODEL F/G
GUARD,KNUCKLE,LH (WHITE)
€ 0.00
26-3
5754114A0019F
ref: 26-3
MODEL F/G
GUARD, KNUCKLE, LH (BLUE)
€ 19.50
26-4
5754114A0014C
ref: 26-4
MODEL F/G
COVER,KNUCKLE,LEFT
€ 9.50
26-5
5754114A0014L
ref: 26-5
MODEL H/J
COVER,KNUCKLE,L
€ 13.50
26-6
5754114A0034S
ref: 26-6
MODEL H/J/K
GUARD, KNUCKLE, LH (BLUE)
€ 59.50
26-7
5754114A0030H
ref: 26-7
MODEL K
GUARD,KNUCKLE,LH (WHITE)
€ 19.50
27
0916006019
ref: 27
WASHER(6.5X16X1.2)
€ 1.50
28
0916906033
ref: 28
WASHER
€ 1.50
29
0831921068
ref: 29
NUT 6MM
€ 2.00
