AIR CLEANER

DR650R 1992 (N) (E02 E04 E17 E18 E21 E22 E24 E34 E53)

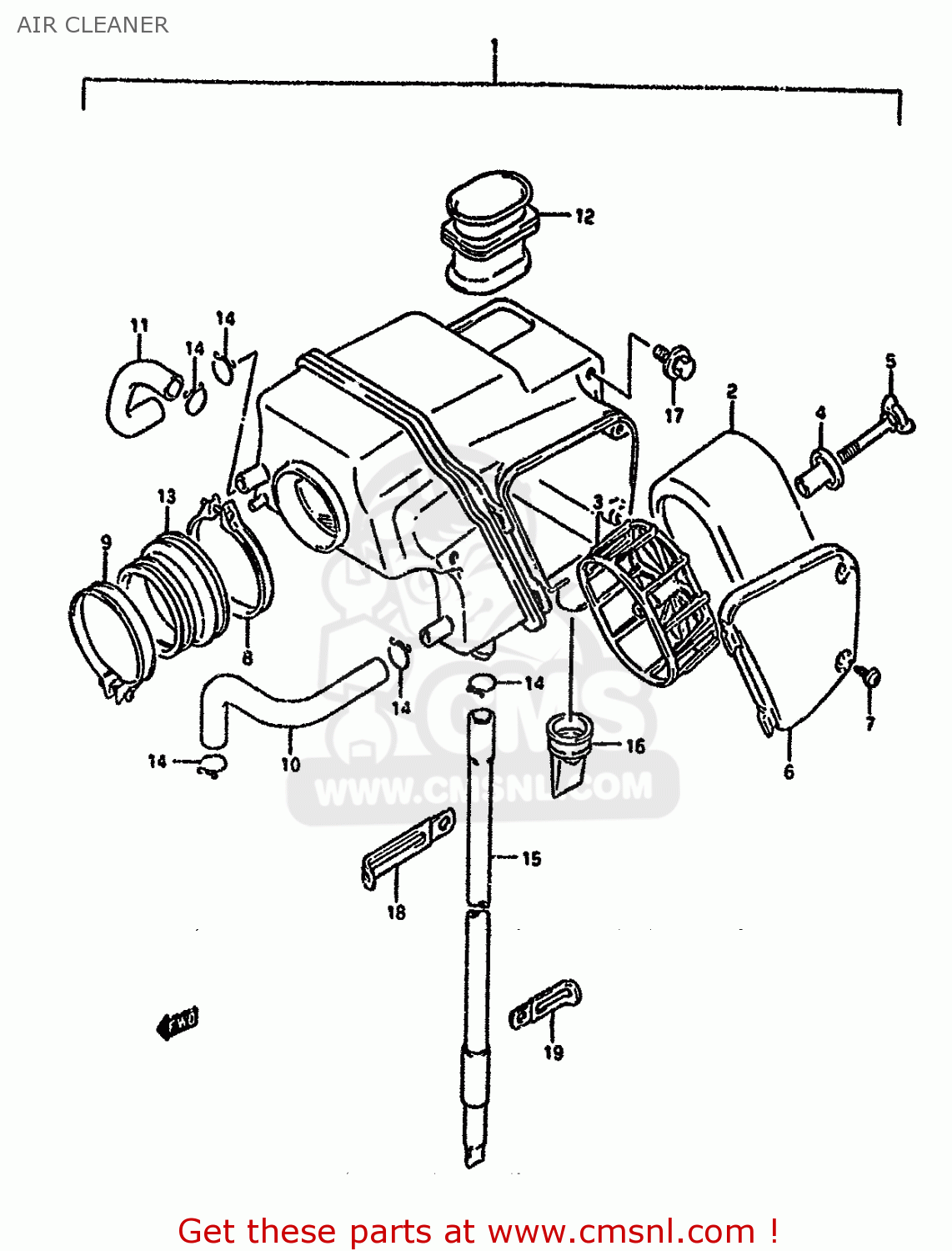

Air cleaner diagram DR650R 1992 (N) (E02 E04 E17 E18 E21 E22 E24 E34 E53)

prices are in EUR

ref

part #

description

quantity

1-1

1370012D40
ref: 1-1
MODEL N

CLEANER ASSY,AIR

€ 242.00

1-2

1370012D41
ref: 1-2
MODEL P/R

CLEANER ASSY,AIR

€ 242.00

1378012D00
ref: 2

FILTER

€ 24.50

1379112D00
ref: 3

HOLDER,FILTER

€ 13.00

1379612D00
ref: 4

SPACER

€ 2.50

1374579120
ref: 5

BOLT,WING

€ 2.00

1374012D00
ref: 6

CAP,AIR CLEANER

€ 17.00

0214205164
ref: 7

SCREW

€ 2.50

0940274207
ref: 8

CLAMP

€ 3.50

0940264208
ref: 9

CLAMP

€ 6.00

1385112D10
ref: 10

TUBE,BREATHER

€ 26.00

1377112D00
ref: 11

TUBE,CONNECTING

€ 18.00

1389112D10
ref: 12

TUBE,INLET

€ 16.50

1388112D00
ref: 13

TUBE,OUTLET

€ 18.00

0940114301
ref: 14

CLIP

€ 2.00

1387012D00
ref: 15

DRAIN TUBE

€ 13.50

1387812D00
ref: 16

CAP,DRAIN

€ 4.50

0911606151
ref: 17

BOLT(6X14)

€ 3.00

0940408404
ref: 18
-09404-08403

CLAMP

€ 3.00

0940406402
ref: 19
-09404-06401

CLAMP

€ 2.50

AIR CLEANER

all assemblies
