CYLINDER

DR650R 1992 (N) (E02 E04 E17 E18 E21 E22 E24 E34 E53)

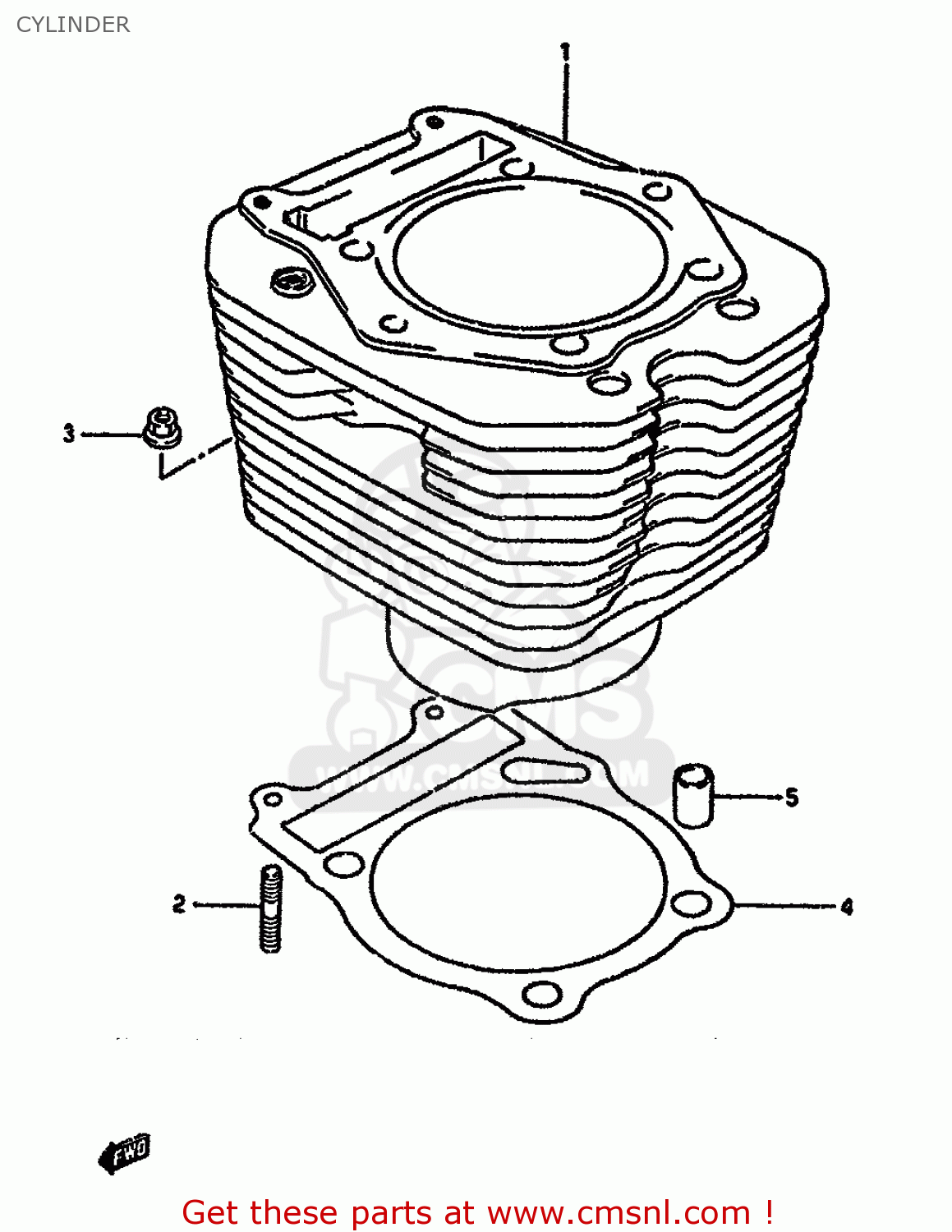

Cylinder diagram DR650R 1992 (N) (E02 E04 E17 E18 E21 E22 E24 E34 E53)

CYLINDER DR650R 1992 (N) (E02 E04 E17 E18 E21 E22 E24 E34 E53)

CYLINDER DR650R 1992 (N) (E02 E04 E17 E18 E21 E22 E24 E34 E53)

prices are in EUR

ref

part #

description

quantity

1

1121012D230F0
ref: 1
-11210-12D23-0E0

CYLINDER

€ 697.00

2

0142106208
ref: 2

STUD 6X20

€ 2.50

3-1

0915906017
ref: 3-1
MODEL N/P

NUT

€ 2.50

3-2

0831610067
ref: 3-2
MODEL R

NUT

€ 2.00

4

1124114A03H17
ref: 4

GASKET,CYLINDER (NAS)

€ 27.00

5

0920613001
ref: 5

PIN

€ 2.50
