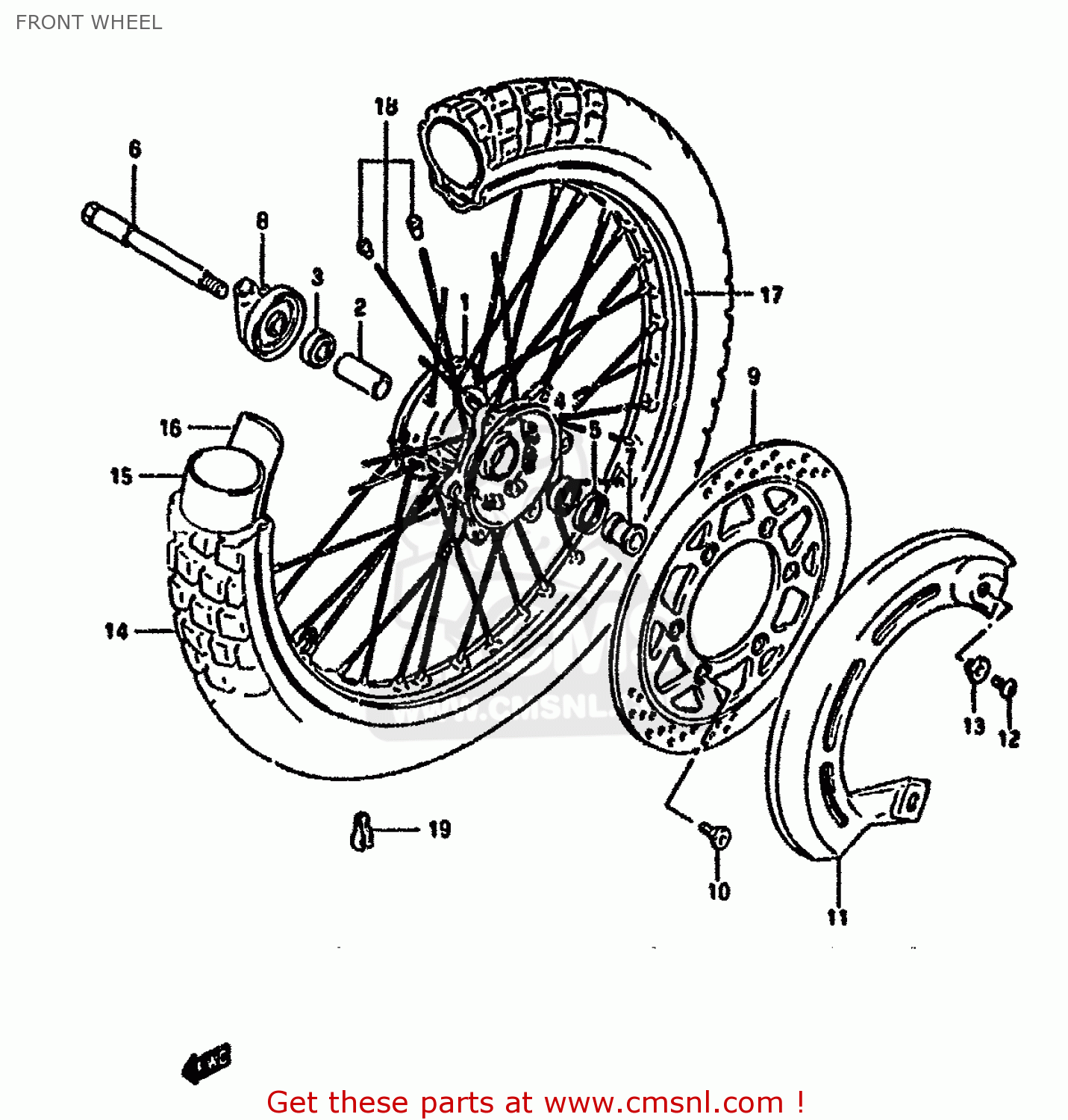

FRONT WHEEL

ref

part #

description

quantity

1

5411131D00
ref: 1

HUB,FRONT WHEEL

€ 175.50

2

5473144B00
ref: 2

SPACER,FR HUB BEARING

€ 11.50

3

0811362027
ref: 3

BEARING

€ 14.50

4

0812362027
ref: 4

BEARING

€ 14.50

5

0926422004
ref: 5

SEAL,HUB LH

€ 0.00

6-1

5471114D00
ref: 6-1
MODEL N

AXLE,FR

€ 66.50

6-2

5471114D10
ref: 6-2
MODEL P/R

AXLE,FRONT

€ 66.50

7

5475114D00
ref: 7

SPACER,FR AXLE,L

€ 18.50

8

5460014D00
ref: 8

BOX ASSY,SPEEDOMETER GEAR

€ 87.50

9

5922112D00
ref: 9

DISC,FR BRAKE

€ 147.50

10

5942103A10
ref: 10

BOLT,BRAKE DISC

€ 4.00

11-1

5923131D1030H
ref: 11-1
MODEL N FOR 28X,29X

COVER,FRONT BRAKE DISC

€ 79.00

11-2

5923131D100NF
ref: 11-2
MODEL P,FOR 28X MODE

COVER,FR BRAKE DISC

€ 68.50

11-3

5923131D1028V
ref: 11-3
MODEL P,FOR 29X

COVER,BRAKE DISC (RED)

€ 79.00

11-4

5923131D10
ref: 11-4
MODEL R,FOR 019

COVER,FRONT BRAKE DISC

€ 79.00

12

0214206127
ref: 12

SCREW 6X12

€ 1.50

13

0916906028
ref: 13

WASHER

€ 2.00

14

5510012E00
ref: 14

TIRE,FRONT 90/90-21 54

€ 0.00

15

5520044B10
ref: 15

TUBE,INNER

€ 32.50

16

5526116510
ref: 16

PROTECTOR,WHEEL,INNER

€ 5.00

17

5531144B00
ref: 17

RIM,FR WHEEL(21X1.85)

€ 336.50

18

5532031D00
ref: 18

SPOKE SET,FR WHEEL

€ 46.50

19-1

5541238A00
ref: 19-1

BALANCER,WHEEL

€ 6.50

19-2

5541338A00
ref: 19-2

BALANCER,WHEEL (30G)

€ 8.00
