MUFFLER

DR650R 1992 (N) (E02 E04 E17 E18 E21 E22 E24 E34 E53)

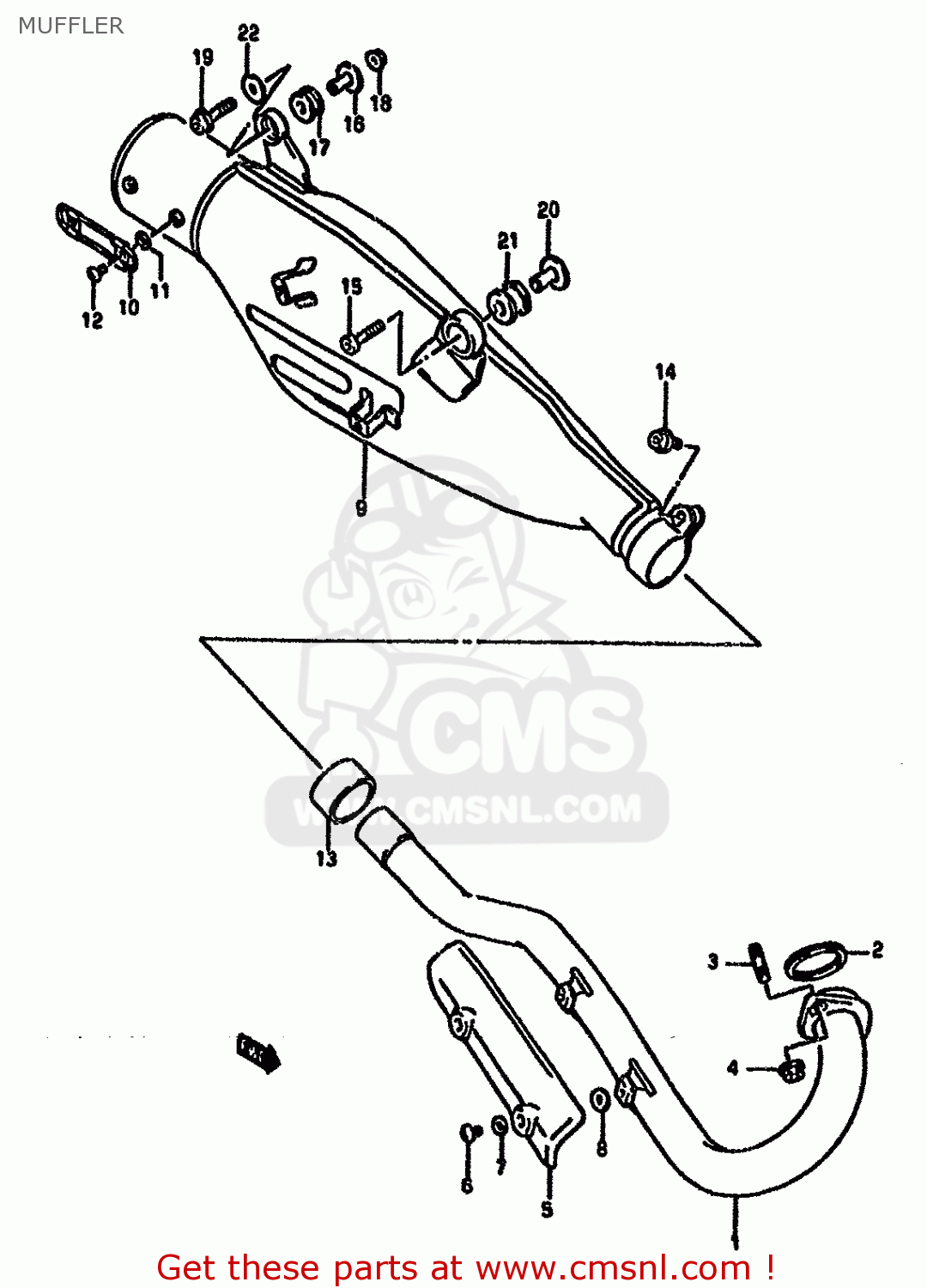

Muffler diagram DR650R 1992 (N) (E02 E04 E17 E18 E21 E22 E24 E34 E53)

MUFFLER DR650R 1992 (N) (E02 E04 E17 E18 E21 E22 E24 E34 E53)
MUFFLER DR650R 1992 (N) (E02 E04 E17 E18 E21 E22 E24 E34 E53)
MUFFLER DR650R 1992 (N) (E02 E04 E17 E18 E21 E22 E24 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
1415014A22
ref: 1
PIPE,EXHAUST
1415014A22
€ 149.00
2
1418101D00
ref: 2
GASKET,EXHAUST PIPE (NAS)
1418101D00
€ 8.00
3
0910808106
ref: 3
BOLT,STUD(8X20)
0910808106
€ 3.00
4
0915908085
ref: 4
NUT
0915908085
€ 1.50
5
1418012D00
ref: 5
COVER,EXHAUST PIPE
1418012D00
€ 38.00
6
0913906076
ref: 6
SCREW(6X10)
0913906076
€ 2.50
7
0916006082
ref: 7
WASHER(6.5X13X1.0)
0916006082
€ 1.50
8
0916806122
ref: 8
GASKET(6X16X1.4) (NAS)
0916806122
€ 2.50
9-1
1431012E00
ref: 9-1
MODEL N
BODY,MUFFLER
€ 804.00
9-2
1431012E01
ref: 9-2
MODEL P
BODY,MUFFLER
€ 804.00
9-3
1431012E02
ref: 9-3
MODEL R
BODY,MUFFLER
€ 804.00
10
1478012E00
ref: 10
COVER,MUFFLER
€ 23.50
11
0916806121
ref: 11
GASKET(5.8X13X1.8) (NAS)
0916806121
€ 3.00
12
0913906076
ref: 12
SCREW(6X10)
0913906076
€ 2.50
13
1477144B00
ref: 13
CONNECTOR,MUFFLER
1477144B00
€ 19.50
14-1
0712008405
ref: 14-1
MODEL N/P
BOLT
0712008405
€ 3.50
14-2
0712008403
ref: 14-2
MODEL R
BOLT
€ 3.50
15
0910608074
ref: 15
FR
BOLT(8X40)
0910608074
€ 3.50
16
0918008151
ref: 16
SPACER(8.6X12X17.5)
0918008151
€ 6.00
17
0932012043
ref: 17
CUSHION
0932012043
€ 8.00
18
0831931085
ref: 18
NUT
€ 2.50
19-1
0712008455
ref: 19-1
RR,MODEL N/P
BOLT 8X45
€ 3.50
19-2
0712008453
ref: 19-2
RR,MODEL R
BOLT
0712008453
€ 3.50
20
0918008152
ref: 20
SPACER(8.6X12X24.2)
0918008152
€ 6.00
21
0932012048
ref: 21
CUSHION
0932012048
€ 5.00
22
0916008057
ref: 22
WASHER (8.5X20X1.6)
0916008057
€ 2.00
