CRANKSHAFT
DR650RSE 1996 (T) (E04 E18 E22 E34 E37)

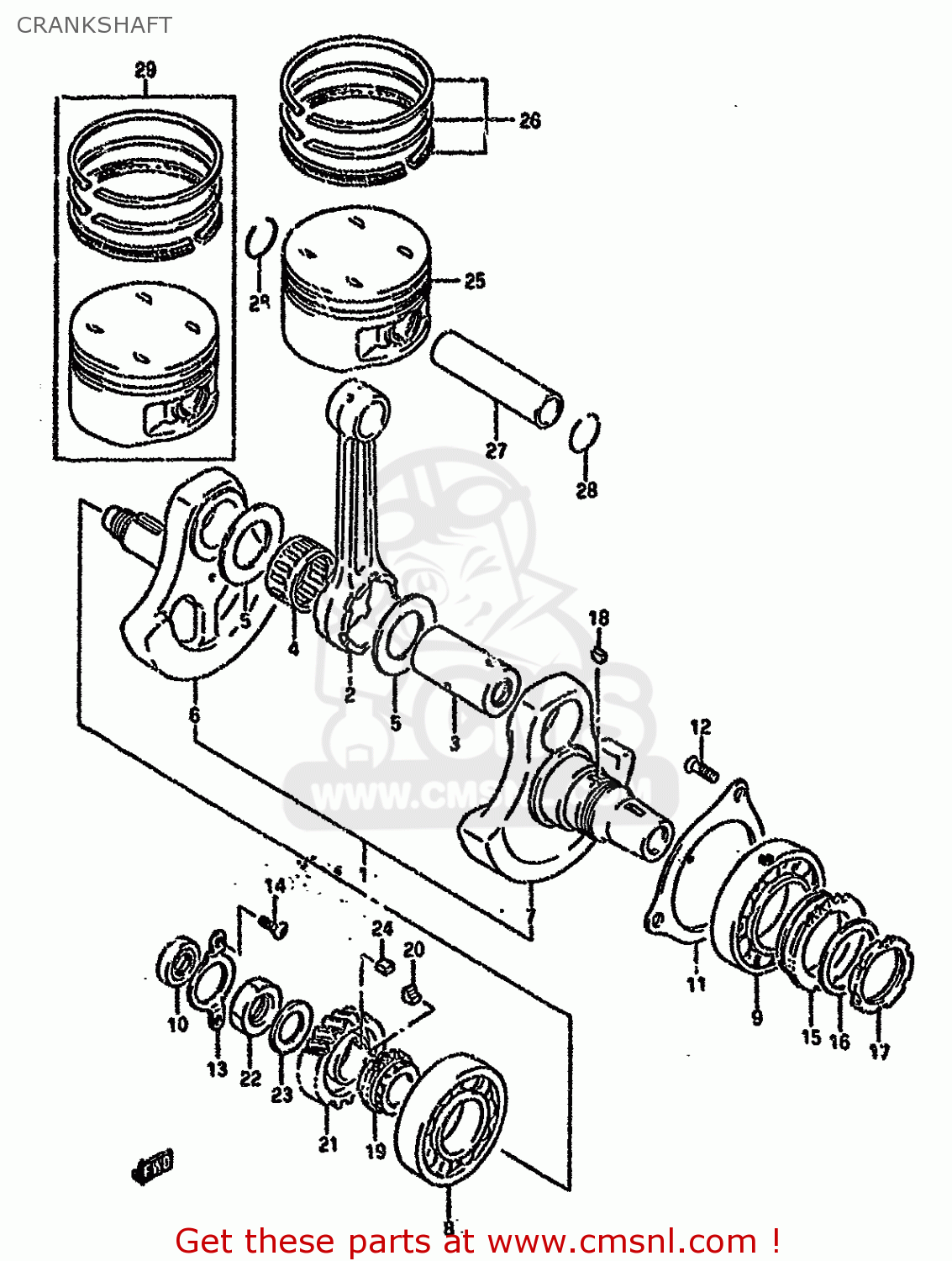

Crankshaft diagram DR650RSE 1996 (T) (E04 E18 E22 E34 E37)
CRANKSHAFT DR650RSE 1996 (T) (E04 E18 E22 E34 E37)
×
prices are in EUR
ref
part #
description
quantity
1-1
1220012D10
ref: 1-1
MODEL M/N/P/R/S
CRANKSHAFT ASSEMBLY
€ 870.50
1-2
1220012D20
ref: 1-2
MODEL T
CRANKSHAFT ASSEMBLY
€ 870.50
2
1216112D00
ref: 2
ROD,CONNECTING
€ 129.00
3-1
1221012D00
ref: 3-1
MODEL M/N/P/R/S
PIN,CRANK
€ 82.50
3-2
1221012D10
ref: 3-2
MODEL T
PIN,CRANK
€ 82.50
4-1
0926335031
ref: 4-1
MODEL M/N/P/R/S
BEARING
€ 70.50
4-2
0926335032
ref: 4-2
MODEL T
BEARING(35X45X24.8)
€ 70.50
5
0916035005
ref: 5
WASHER(35X55X1)
€ 8.00
6
1222112D11
ref: 6
CRANKSHAFT,R
€ 222.00
7
1226112D10
ref: 7
CRANKSHAFT,L
€ 184.50
8
0926235009
ref: 8
BEARING(35X80X21)
€ 68.50
9
0926245003
ref: 9
BEARING
€ 50.00
10
0928216002
ref: 10
SEAL,OIL(16X30X6)
€ 8.50
11
1254137400
ref: 11
RETAINER,CRANKSHAFT BEARING,L
€ 13.50
12-1
0212206167
ref: 12-1
MODEL M/N/P
SCREW
€ 2.00
12-2
0212206163
ref: 12-2
MODEL R/S/T
SCREW ,6X16
€ 2.00
13
1254837400
ref: 13
RETAINER,CRANKSHAFT BEARING,R
€ 6.50
14-1
0211205087
ref: 14-1
MODEL M/N/P
SCREW
€ 2.00
14-2
0211205083
ref: 14-2
MODEL R/S/T
SCREW
€ 2.00
15
1266237402
ref: 15
NT:25
SPROCKET,BALANCER DRIVE
€ 161.00
16
0916440003
ref: 16
WASHER
€ 3.50
17
1266444B00
ref: 17
NUT,BAL DRIVE SPRKT
€ 26.00
18
0834131039
ref: 18
KEY
€ 2.00
19
1273137400
ref: 19
SPROCKET,CAM CHAIN DRIVE
€ 91.00
20
1274932400
ref: 20
KEY,SPROCKET
€ 13.50
21
2111112D00
ref: 21
GEAR,PRIMARY DRIVE
€ 28.50
22
0914020008
ref: 22
NUT (20MM)
€ 4.00
23
0916420003
ref: 23
WASHER
€ 2.50
24
0942107002
ref: 24
KEY
€ 4.00
25-1
1211112D080F0
ref: 25-1
MODEL M/N/P/R/S
PISTON
€ 111.50
25-2
1211112D090F0
ref: 25-2
MODEL T
PISTON
€ 111.50
26
1214012D11
ref: 26
RING SET,PISTON
€ 68.50
27
1215114A01
ref: 27
PIN,PISTON
€ 18.00
28
0938123003
ref: 28
CIRCLIP
€ 1.50
29-1
1210012D01050
ref: 29-1
OPT
PISTON SET(OS:0.5)
€ 152.00
29-2
1210012D01100
ref: 29-2
OPT
PISTON SET (OS:1.0)
€ 149.50
