REAR CALIPER
DR650RSE 1996 (T) (E04 E18 E22 E34 E37)

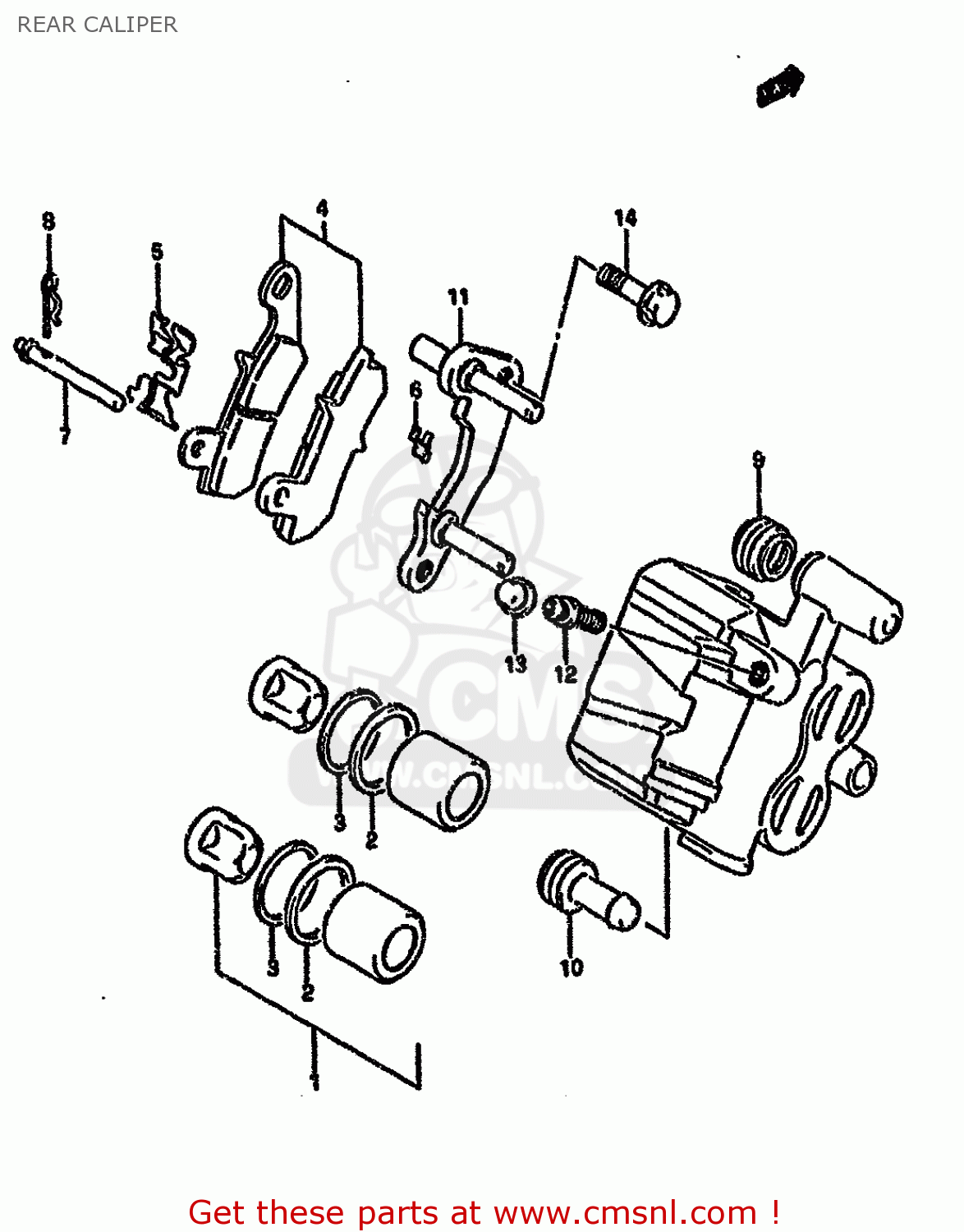

Rear caliper diagram DR650RSE 1996 (T) (E04 E18 E22 E34 E37)
REAR CALIPER DR650RSE 1996 (T) (E04 E18 E22 E34 E37)
×
prices are in EUR
ref
part #
description
quantity
0
6910012D00
ref: 0
MODEL M/N-69100-12D0
CALIPER ASSEMBLY,REAR
€ 545.00
0
6910012D01
ref: 0
MODEL P/R/S/T
CALIPER ASSY,RR
€ 545.00
1
6910044850
ref: 1
BRAKE PISTON SET
€ 71.50
2
5910704A00
ref: 2
SEAL,PISTON
€ 12.00
3
5910804A00
ref: 3
SEAL,WIPER
€ 10.50
4
6910012810
ref: 4
PAD SET (NAS)
€ 49.00
5
6911544B00
ref: 5
SPRING,PAD
€ 6.50
6
6911644B00
ref: 6
GUIDE,PAD
€ 8.00
7
6914144B02
ref: 7
PIN,PAD
€ 8.00
8
6914245000
ref: 8
CLIP,PAD PIN
€ 4.50
9
5931236500
ref: 9
BOOT,AXLE
€ 4.00
10
5931336500
ref: 10
INSULATOR,AXLE
€ 5.50
11
6915044B00
ref: 11
CARRIER
€ 62.50
12
5912118410
ref: 12
BLEEDER
€ 8.00
13
5515666310
ref: 13
CAP,BLEEDER PLUG
€ 6.00
14
0910308259
ref: 14
BOLT(8X22)
€ 4.50
