FUEL COCK

DR650RSE 1996 (T) (E04 E18 E22 E34 E37)

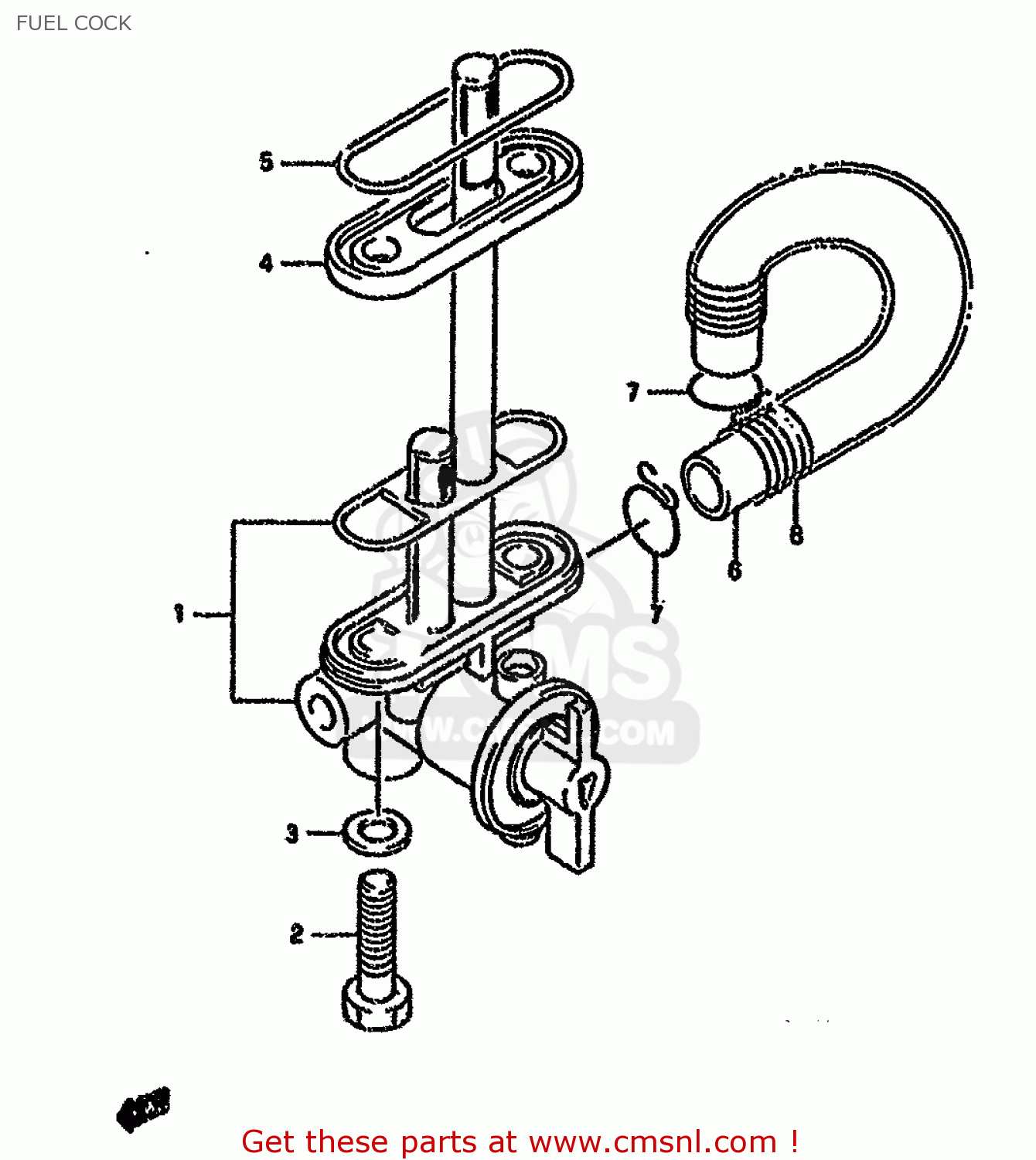

Fuel cock diagram DR650RSE 1996 (T) (E04 E18 E22 E34 E37)

FUEL COCK DR650RSE 1996 (T) (E04 E18 E22 E34 E37)
FUEL COCK DR650RSE 1996 (T) (E04 E18 E22 E34 E37)
FUEL COCK DR650RSE 1996 (T) (E04 E18 E22 E34 E37)
prices are in EUR
ref
part #
description
quantity
1
4430012D00
ref: 1
COCK ASSY,FUEL
4430012D00
€ 83.50
2
0912806057
ref: 2
BOLT(6X20)
0912806057
€ 2.00
3
0916806026
ref: 3
GASKET(6.4X11.5X0.8) (NAS)
0916806026
€ 3.50
4
4436514A00
ref: 4
SPACER,FUEL COCK
4436514A00
€ 12.00
5
4436614A00
ref: 5
GASKET,FUEL COCK (NAS)
4436614A00
€ 2.50
6
0935270103600
ref: 6
HOSE(7X10.2X600)
0935270103600
€ 8.00
7
0940110401
ref: 7
CLIP
0940110401
€ 1.50
8
0944013036
ref: 8
(CA) SPRING
€ 2.50
