AIR CLEANER
DR650RSEU 1995 (S) GERMANY (E22)

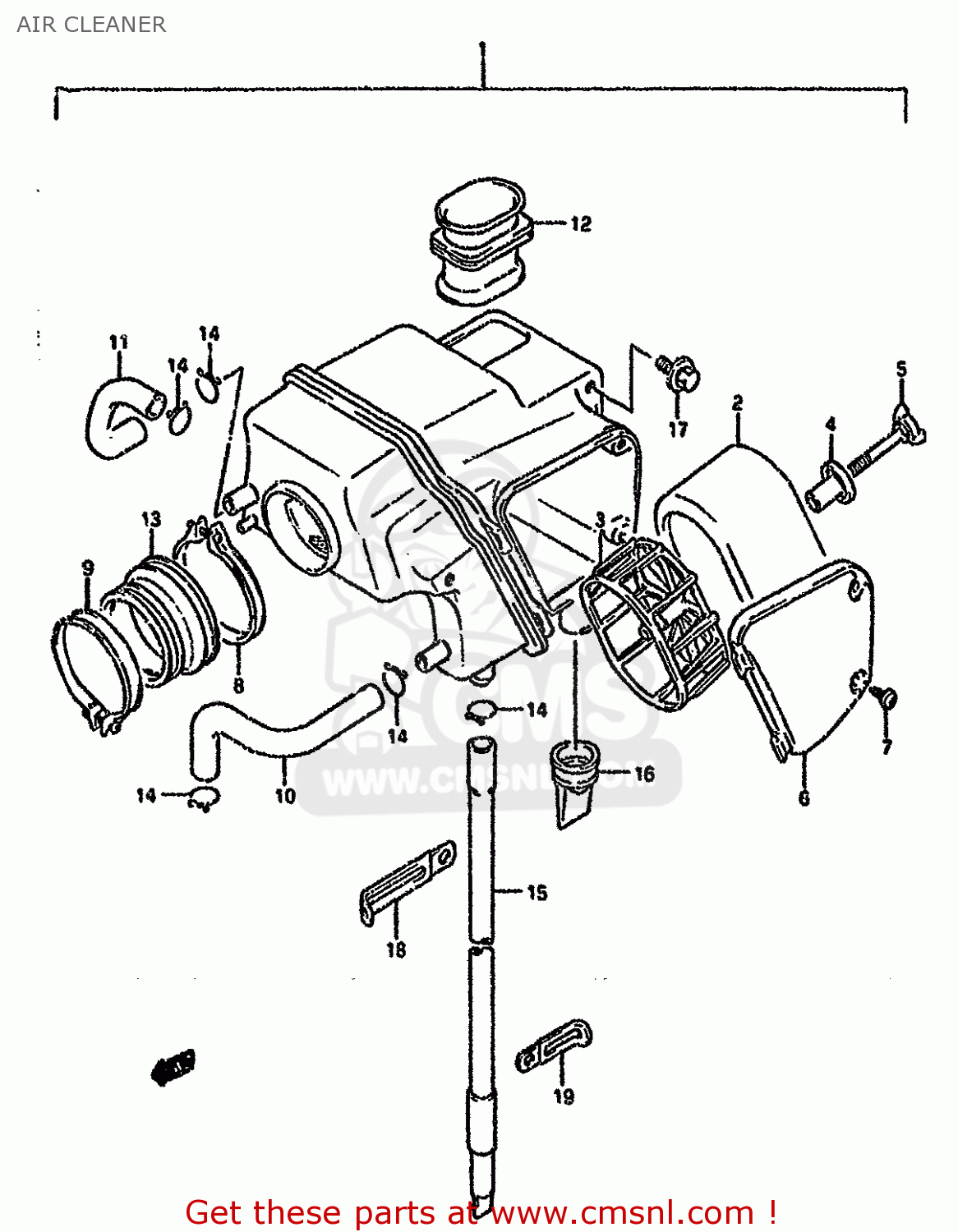

Air cleaner diagram DR650RSEU 1995 (S) GERMANY (E22)
AIR CLEANER DR650RSEU 1995 (S) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370012D20
ref: 1-1
MODEL M/N
CLEANER ASSEMBLY,AIR
€ 157.00
1-2
1370012D41
ref: 1-2
MODEL P/R/S/T
CLEANER ASSY,AIR
€ 242.00
2
1378012D00
ref: 2
FILTER
€ 24.50
3
1379112D00
ref: 3
HOLDER,FILTER
€ 13.00
4
1379612D00
ref: 4
SPACER
€ 2.50
5
1374579120
ref: 5
BOLT,WING
€ 2.00
6
1374012D00
ref: 6
CAP,AIR CLEANER
€ 17.00
7
0214205163
ref: 7
SCREW
€ 2.50
8
0940274207
ref: 8
CLAMP
€ 3.50
9
0940264203
ref: 9
-09402-64208
CLAMP
€ 6.00
10-1
1385112D10
ref: 10-1
MODEL M/N
TUBE,BREATHER
€ 26.00
10-2
1385112D10
ref: 10-2
MODEL P/R/S/T
TUBE,BREATHER
€ 26.00
11
1377112D00
ref: 11
TUBE,CONNECTING
€ 18.00
12-1
1389112D00
ref: 12-1
MODEL M/N
TUBE,INLET
€ 13.50
12-2
1389112D10
ref: 12-2
MODEL P/R/S/T
TUBE,INLET
€ 16.50
13
1388112D00
ref: 13
TUBE,OUTLET
€ 18.00
14
0940114301
ref: 14
CLIP
€ 2.00
15
1387011458
ref: 15
TUBE,DRAIN
€ 13.50
16
1387812D00
ref: 16
CAP,DRAIN
€ 4.50
17
0911606151
ref: 17
BOLT(6X14)
€ 3.00
18-1
0940408420
ref: 18-1
MODEL M/N/P/R
CLAMP(L:120 T:1.0)
€ 3.50
18-2
0940408418
ref: 18-2
MODEL S/T
CLAMP(L:65)
€ 3.50
19-1
0940406402
ref: 19-1
MODEL M/N/P/R
CLAMP
€ 2.50
19-2
0940406429
ref: 19-2
MODEL S/T
CLAMP(L:45)
€ 2.50
