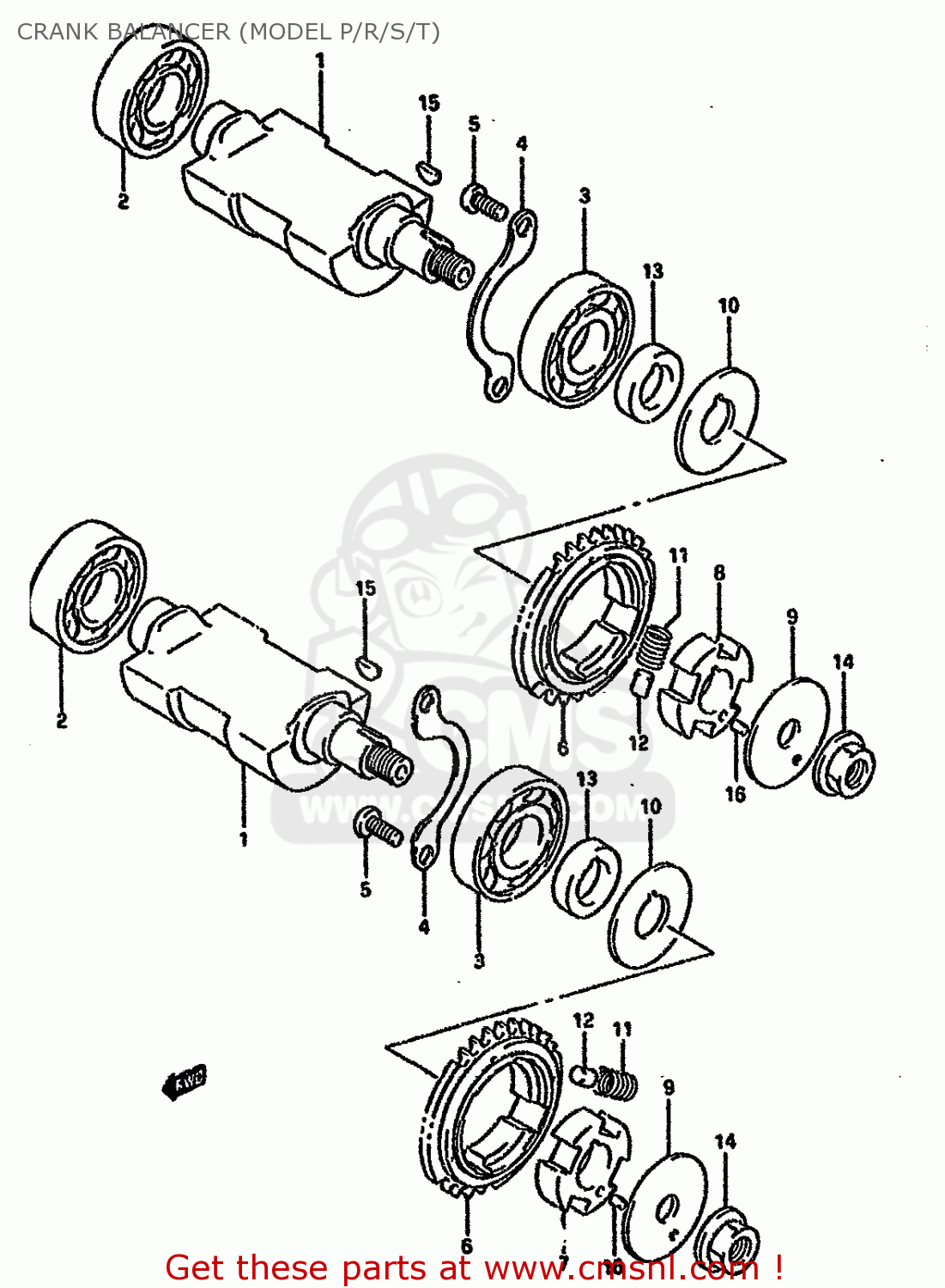

CRANK BALANCER (MODEL P/R/S/T)

ref

part #

description

quantity

1-1

1265112D11
ref: 1-1
MODEL P/R/S

BALANCER,CRANK

€ 119.50

1-2

1265112D20
ref: 1-2
MODEL T

BALANCER,CRANK

€ 0.00

2

0926220106
ref: 2

BEARING(20X42X12)

€ 20.50

3

0926220122
ref: 3

BEARING(20X47X12)

€ 27.00

4

1265937400
ref: 4

RETAINER,CRANK BAL BEARING

€ 2.00

5

0211206123
ref: 5

SCREW

€ 1.50

6

1266512D01
ref: 6
-12665-12D00

SPROCKET,CRANK BAL DRIVEN

€ 96.50

7

1266612E00
ref: 7
-12666-12D00

RACE,BALANCER DRIVER SPOCKET,INNER

€ 80.50

8

1266612E00
ref: 8
-12676-12D00

RACE,BALANCER DRIVER SPOCKET,INNER

€ 80.50

9-1

0916610003
ref: 9-1
MODEL P/R/S

WASHER (10X39X1.6)

€ 6.50

9-2

0916612009
ref: 9-2
MODEL T

WASHER,DRIVEN SPROCKET

€ 0.00

10

0916616019
ref: 10

WASHER

€ 6.50

11

0944009036
ref: 11

SPRING

€ 3.50

12

0926106004
ref: 12

PIN(6X8.8)

€ 1.50

13

0918016047
ref: 13

SPACER (16X26X7.5)

€ 10.00

14-1

0915910046
ref: 14-1
MODEL P/R/S

NUT (M10X1.25X9)

€ 2.00

14-2

0915912048
ref: 14-2
MODEL T

NUT

€ 6.00

15

0834131039
ref: 15

KEY

€ 2.00

16

0926103018
ref: 16
MODEL P/R/S

PIN(3X11.3)

€ 2.00
