CARBURETOR (MODEL T)
DR650RSEU 1995 (S) GERMANY (E22)

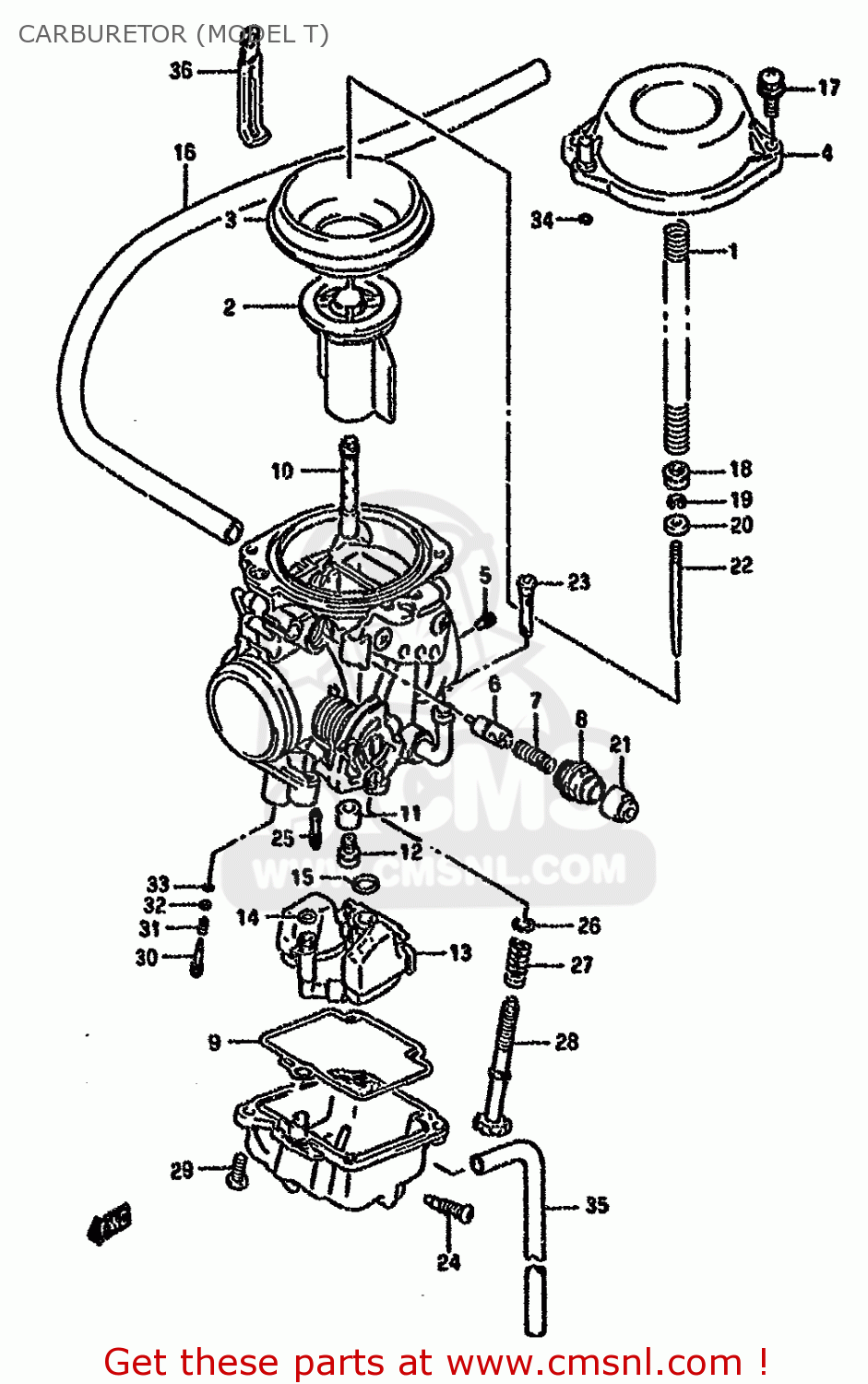

Carburetor (model t) diagram DR650RSEU 1995 (S) GERMANY (E22)
CARBURETOR (MODEL T) DR650RSEU 1995 (S) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
0
1320013DC0
ref: 0
CARBURETOR ASSY
€ 0.00
0
1320013D70
ref: 0
E18
CARBURETOR ASSY
€ 677.50
0
1320013DD0
ref: 0
E22
CARBURETOR ASSY
€ 765.00
0
1320013DE0
ref: 0
DR650RSEUT E22
CARBURETOR ASSY
€ 765.00
0
1320013DF0
ref: 0
E37
CARBURETOR ASSY
€ 765.00
1
1341717D00
ref: 1
SPRING
€ 5.50
2-1
1350112D00
ref: 2-1
VALVE,PISTON
€ 71.50
2-2
1350113D00
ref: 2-2
DR650RSEUT E22
VALVE,PISTON
€ 0.00
3
1350707D01
ref: 3
DIAPHRAGM
€ 24.50
4-1
1350212D00
ref: 4-1
COVER,DIAPHRAGM
€ 38.50
4-2
1350212D10
ref: 4-2
E18
COVER,DIAPHRAGM
€ 29.00
5-1
0949326004
ref: 5-1
JET,AIR(1.3)
€ 14.50
5-2
0949328007
ref: 5-2
E18
JET,AIR
€ 15.50
6
1341112D00
ref: 6
PLUNGER
€ 18.00
7
1341722010
ref: 7
SPRING
€ 3.00
8
1341843410
ref: 8
HOLDER,GUIDE
€ 6.50
9
1325844B00
ref: 9
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
10
0949400749
ref: 10
JET,NEEDLE,X-9
€ 30.50
11
1333107D00
ref: 11
RING
€ 4.50
12
0949128010
ref: 12
JET,MAIN(140)
€ 8.50
13-1
1325044C00
ref: 13-1
FLOAT/NEEDLE VALVE ASSEMBLY
€ 124.50
13-2
1325013D00
ref: 13-2
E37
FLOAT/NEEDLE VALVE ASSY
€ 124.50
14
1337446710
ref: 14
O RING
€ 4.50
15
1337444080
ref: 15
O-RING,NEEDLE VALVE
€ 6.00
16
0935465113600
ref: 16
L:600-475
HOSE(6.5X11.5X600)
€ 26.00
17
0211275163
ref: 17
SCREW
€ 2.50
18
1333112D00
ref: 18
RING
€ 4.50
19
1339431210
ref: 19
CLIP,NEEDLE
€ 3.50
20
1338707D00
ref: 20
RING
€ 4.50
21
1368104010
ref: 21
CAP
€ 3.00
22-1
1338312D20
ref: 22-1
NEEDLE,JET
€ 15.00
22-2
1338313D10
ref: 22-2
DR650RSEUT E22
NEEDLE,JET(6H20-3)
€ 0.00
23
1323612C00
ref: 23
FILTER
€ 5.00
24
1324713A00
ref: 24
SCREW,DRAIN
€ 5.50
25
0949250022
ref: 25
JET,PILOT(50)
€ 14.50
26
1342738300
ref: 26
WASHER
€ 1.50
27
1327124D00
ref: 27
SPRING
€ 5.00
28
1326713D01
ref: 28
-13267-13D00
ADJUSTER
€ 15.00
29
1360105148
ref: 29
SCREW(5X14)
€ 3.00
30-1
1326937110
ref: 30-1
EXCEPT E18
SCREW,PILOT
€ 13.00
30-2
1326937110
ref: 30-2
E22
SCREW,PILOT
€ 13.00
30-3
1326937110
ref: 30-3
DR650RSEUT E22
SCREW,PILOT
€ 13.00
31
1326847070
ref: 31
EXCEPT E18
SPRING
€ 5.00
32
1329129900
ref: 32
EXCEPT E18
WASHER
€ 2.00
33
1329529900
ref: 33
EXCEPT E18
O RING,PILOT AIR SCREW
€ 4.00
34
1327802340
ref: 34
E18
O RING
€ 1.50
35
0935431684600
ref: 35
L:600-500
HOSE
€ 13.50
36
0940406429
ref: 36
CLAMP(L:45)
€ 2.50
36
1326847070
ref: 36
EXCEPT E18
SPRING
€ 5.00
37
1329129900
ref: 37
EXCEPT E18
WASHER
€ 2.00
38
1329529900
ref: 38
EXCEPT E18
O RING,PILOT AIR SCREW
€ 4.00
39
1355644B00
ref: 39
SEAL
€ 3.50
40
1355747070
ref: 40
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
41
1361744080
ref: 41
E RING
€ 3.50
42
1327802340
ref: 42
E18
O RING
€ 1.50
43
1368418900
ref: 43
HOSE
€ 13.50
44
0940406402
ref: 44
CLAMP
€ 2.50
