CRANKCASE COVER (MODEL R/S)
DR650SE 1992 (N) USA (E03)

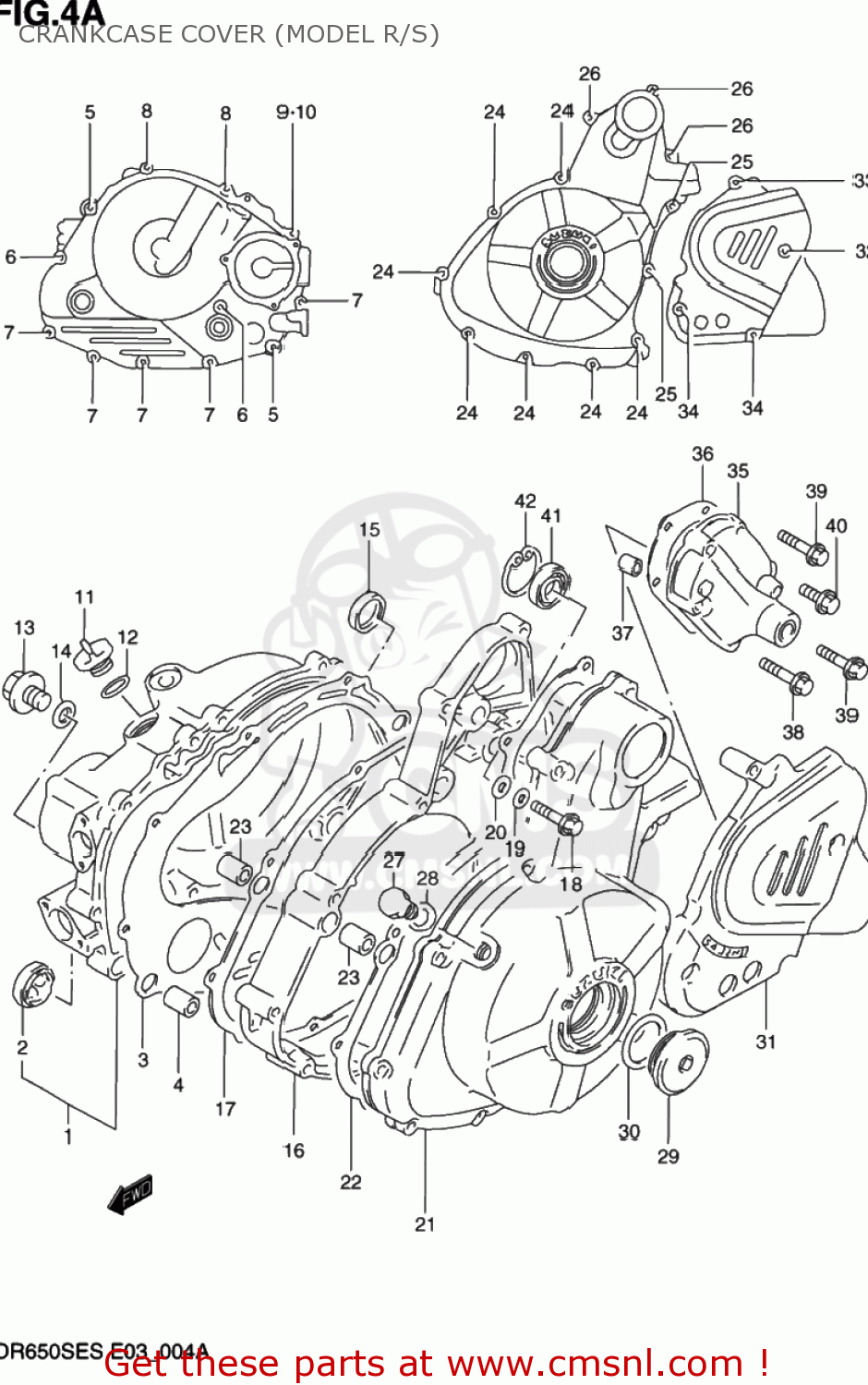

Crankcase cover (model r/s) diagram DR650SE 1992 (N) USA (E03)
CRANKCASE COVER (MODEL R/S) DR650SE 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134012D30
ref: 1
COVER,CLUTCH
€ 214.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3
1148212D01
ref: 3
GASKET,CLUTCH COVER (NAS)
€ 46.00
4
0421113189
ref: 4
PIN
€ 2.50
5
0154706507
ref: 5
BOLT
€ 2.50
6
0154706407
ref: 6
BOLT
€ 2.50
7
0154706357
ref: 7
BOLT
€ 2.50
8
0154706257
ref: 8
BOLT
€ 2.50
9
0910306180
ref: 9
BOLT(6X25)
€ 5.00
10
0832201063
ref: 10
08322-0106B
WASHER
€ 2.00
11
0925920008
ref: 11
09259-20008-XC0
PLUG
€ 6.50
12
0928017003
ref: 12
O RING(D:3.1,ID:16.8)
€ 2.00
13
0924714015
ref: 13
PLUG(14X12)
€ 2.50
14
0916814002
ref: 14
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
15
1134215D00
ref: 15
PLUG,CLUTCH COVER KICK
€ 7.00
16
1133112D30
ref: 16
COVER,GENERATOR,INNER
€ 153.50
17
1148312D10
ref: 17
GASKET,MAGNETO COVER (NAS)
€ 41.00
18
0154706303
ref: 18
01547-0630B
BOLT,G/S SWITC
€ 3.00
19
0832101063
ref: 19
08321-0106A
LOCK WASHER
€ 2.00
20
0832201063
ref: 20
08322-0106B
WASHER
€ 2.00
21
1135112D40
ref: 21
COVER,GENERATOR OUTER
€ 211.00
22
1148312D20
ref: 22
GASKET,GENERATOR OUTER COVER (NAS)
€ 62.00
23
0421113189
ref: 23
PIN
€ 2.50
24
0154706607
ref: 24
BOLT
€ 2.50
25
0154706557
ref: 25
BOLT
€ 2.50
26
0154706357
ref: 26
BOLT
€ 2.50
27
0924712103
ref: 27
PLUG(12X9)
€ 3.50
28
0916812002
ref: 28
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
29
092593601620H
ref: 29
PLUG(SILVER)
€ 10.50
30
0928033004
ref: 30
O RING(D:3.1,ID:32.7)
€ 2.50
31
1136112D40
ref: 31
COVER,ENGINE SPROCKET
€ 70.00
32
0154706457
ref: 32
BOLT
€ 2.50
33
0154706357
ref: 33
BOLT
€ 2.50
34
0154706207
ref: 34
BOLT
€ 2.50
35
1137112D30
ref: 35
COVER,GEAR SHIFT
€ 41.50
36
1148512D01
ref: 36
GASKET,GEAR SHIFT COVER (NAS)
€ 4.50
37
0421109129
ref: 37
PIN
€ 2.00
38
0154706353
ref: 38
01547-0635B
BOLT
€ 3.00
39
0154706303
ref: 39
01547-0630B
BOLT,G/S SWITC
€ 3.00
40
0154706203
ref: 40
01547-0620B
SCREW
€ 2.50
41
0926212001
ref: 41
BEARING(12X28X8)
€ 15.00
42
0833141286
ref: 42
08331-4128A
CIRCLIP
€ 3.50
