GEAR SHIFTING
DR650SE 1992 (N) USA (E03)

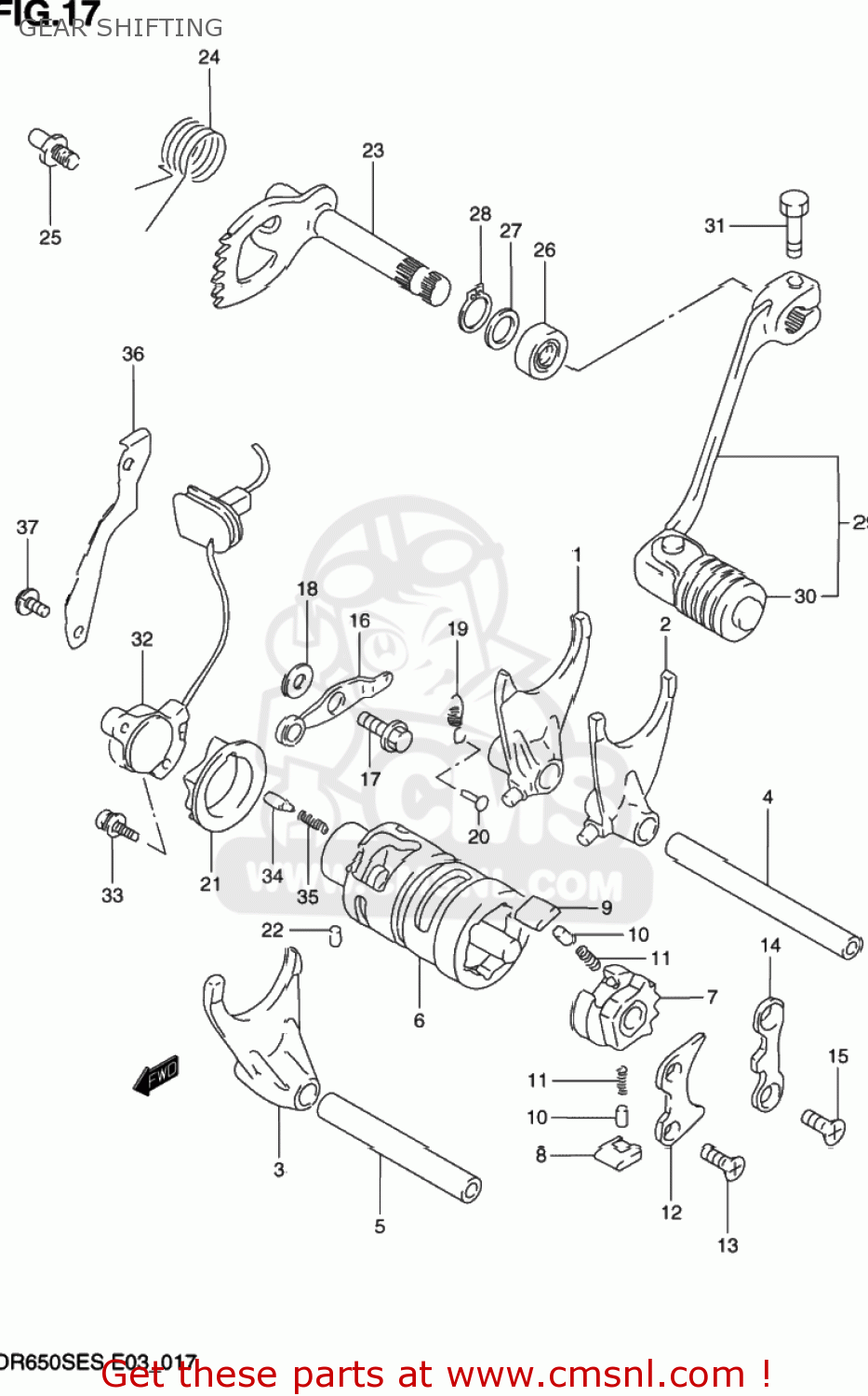

Gear shifting diagram DR650SE 1992 (N) USA (E03)
GEAR SHIFTING DR650SE 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521137400
ref: 1
25211-37401
FORK,GEAR SHIFT NO.1
€ 58.50
2
2522137400
ref: 2
25221-37401
FORK,GEAR SHIFT NO.2
€ 58.50
3
2523114A00
ref: 3
25231-14A01
FORK,GEAR SHIFT NO.3
€ 54.50
4-1
2541114500
ref: 4-1
25411-20A11
SHAFT,GEAR SHIFT FORK
€ 14.50
4-2
2541120A11
ref: 4-2
SHAFT,GEAR SHIFT FORK
€ 14.50
5-1
2542114A01
ref: 5-1
25421-14A02
SHAFT,GEAR SHIFT FORK
€ 14.50
5-2
2542114A02
ref: 5-2
SHAFT,GEAR SHIFT FORK
€ 14.50
6
2531037400
ref: 6
CAM,GEAR SHIFT
€ 91.50
7
2532231301
ref: 7
25322-31310
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533114A00
ref: 12
LIFTER,GEAR SHAFT PAWL
€ 6.00
13-1
0212206128
ref: 13-1
02122-06127
SCREW
€ 3.00
13-2
0212206123
ref: 13-2
02122-0612A
SCREW
€ 3.00
14
2534140001
ref: 14
STOPPER,GEAR SHIFT POLE
€ 6.50
15-1
0212206128
ref: 15-1
02122-06127
SCREW
€ 3.00
15-2
0212206123
ref: 15-2
02122-0612A
SCREW
€ 3.00
16
2535037400
ref: 16
STOPPER,GEAR SHIFT CAM
€ 8.00
17-1
0911106019
ref: 17-1
09111-06054
BOLT
€ 1.50
17-2
0911106054
ref: 17-2
BOLT(6X14.6)
€ 1.50
18
0821106141
ref: 18
WASHER
€ 2.50
19
0944308020
ref: 19
SPRING
€ 2.00
20
0922304001
ref: 20
RIVET
€ 1.50
21-1
2538137400
ref: 21-1
25381-37401
PLATE,SHIFT CAM STOPPER
€ 10.50
21-2
2538137401
ref: 21-2
PLATE,GEAR SHIFT CAM STOPPER
€ 10.50
22
0621104063
ref: 22
04221-04069
PIN 4X6
€ 2.00
23
2551014A02
ref: 23
25510-32E00
SHAFT,GEAR SHIFT
€ 64.00
24
0944426012
ref: 24
09444-26013
SPRING
€ 3.50
25
2567101000
ref: 25
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
26
0928512002
ref: 26
09285-12006
OIL SEAL
€ 7.00
27
0821212201
ref: 27
WASHER
€ 1.50
28
0833131126
ref: 28
08331-3112A
CIRCLIP,12 MM
€ 2.00
29-1
2560012D01
ref: 29-1
LEVER ASSY,GEAR SHIFT
€ 95.50
29-2
2560012D11
ref: 29-2
LEVER ASSY,GEAR SHIFT
€ 104.50
30
2565203D00
ref: 30
RUBBER,GEAR SHIFT PEDAL
€ 3.50
31-1
0110706205
ref: 31-1
01500-0620A
BOLT
€ 2.00
31-2
0150006203
ref: 31-2
01500-0620A
BOLT
€ 2.00
32
3772014A11
ref: 32
BASE ASSY,NEUTRAL SW TERMINAL
€ 72.50
33-1
0211275168
ref: 33-1
02112-7516A
SCREW
€ 2.50
33-2
0211275163
ref: 33-2
02112-7516A
SCREW
€ 2.50
34
0920905011
ref: 34
PIN(5X15.5)
€ 2.00
35
0944004010
ref: 35
SPRING
€ 1.50
36
3772114A00
ref: 36
CLAMP,LEAD WIRE
€ 3.50
37-1
0211236108
ref: 37-1
SCREW
€ 0.00
37-2
0211236103
ref: 37-2
SCREW
€ 1.50
