OIL PUMP
DR650SE 1992 (N) USA (E03)

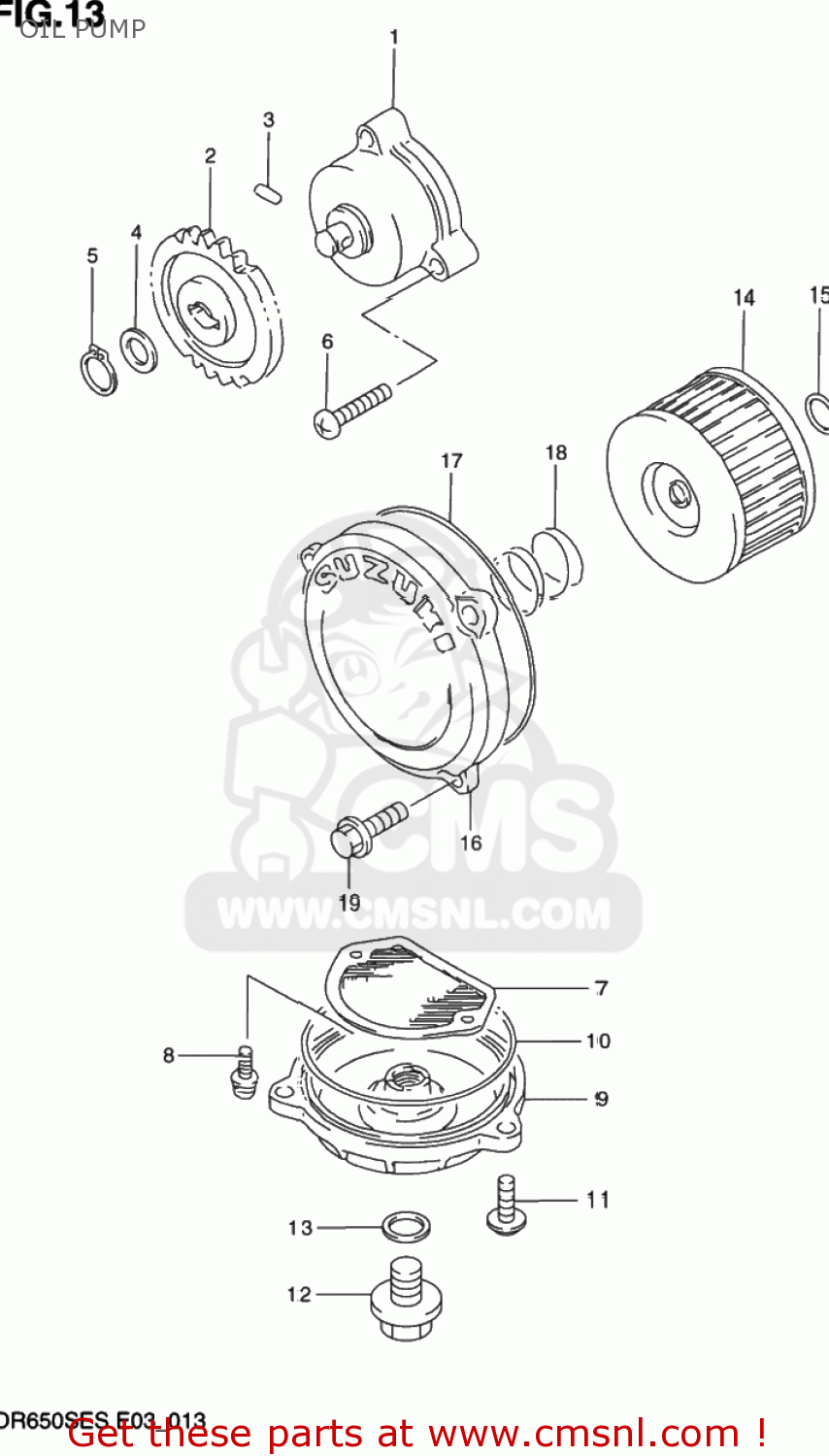

Oil pump diagram DR650SE 1992 (N) USA (E03)
OIL PUMP DR650SE 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1640012D00
ref: 1
PUMP ASSY,ENGINE OIL
€ 156.50
2
1633112D10
ref: 2
GEAR,OIL PUMP DRIVEN
€ 23.50
3
0926104009
ref: 3
PIN(4X15.8)
€ 1.50
4
0822110185
ref: 4
SHIM
€ 2.00
5
0833131106
ref: 5
08331-3110A
CIRCLIP,10MM
€ 2.00
6-1
0211206257
ref: 6-1
SCREW
€ 2.00
6-2
0211206253
ref: 6-2
02112-0625A
SCREW
€ 1.50
7
1652014A00
ref: 7
STRAINER,ENGINE OIL
€ 8.50
8-1
0211275126
ref: 8-1
02112-7512A
SCREW
€ 2.50
8-2
0211275123
ref: 8-2
02112-7512A
SCREW
€ 2.50
9
1652337402
ref: 9
CAP,OIL STRAINER
€ 56.00
10
0928082001
ref: 10
O RING(D:2.4,ID:85)
€ 6.50
11-1
0151706207
ref: 11-1
01550-06207
BOLT 6X20
€ 2.50
11-2
0155006203
ref: 11-2
01550-0620A
BOLT
€ 2.50
12
0924714001
ref: 12
09247-14002
PLUG
€ 5.00
13-1
0916814004
ref: 13-1
GASKET(14X19.2X2) (NAS)
€ 2.50
13-2
0916814002
ref: 13-2
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
14
1651037440
ref: 14
16510-37450
FILTER,ENGINE OIL
€ 7.50
15-1
0928016005
ref: 15-1
O RING(D:2.4,ID:15.8)
€ 1.50
15-2
0928015007
ref: 15-2
O RING(D:2.4,ID:15.8)
€ 2.00
16
1651212E00
ref: 16
CAP,OIL FILTER
€ 26.00
17
0928072001
ref: 17
O RING(D:2.4,ID:73)
€ 5.00
18-1
0944021004
ref: 18-1
SPRING
€ 13.00
18-2
0944021006
ref: 18-2
SPRING
€ 2.50
19
0154706167
ref: 19
BOLT
€ 2.00
