FRONT FORK (MODEL N/P)
DR650SE 1992 (N) USA (E03)

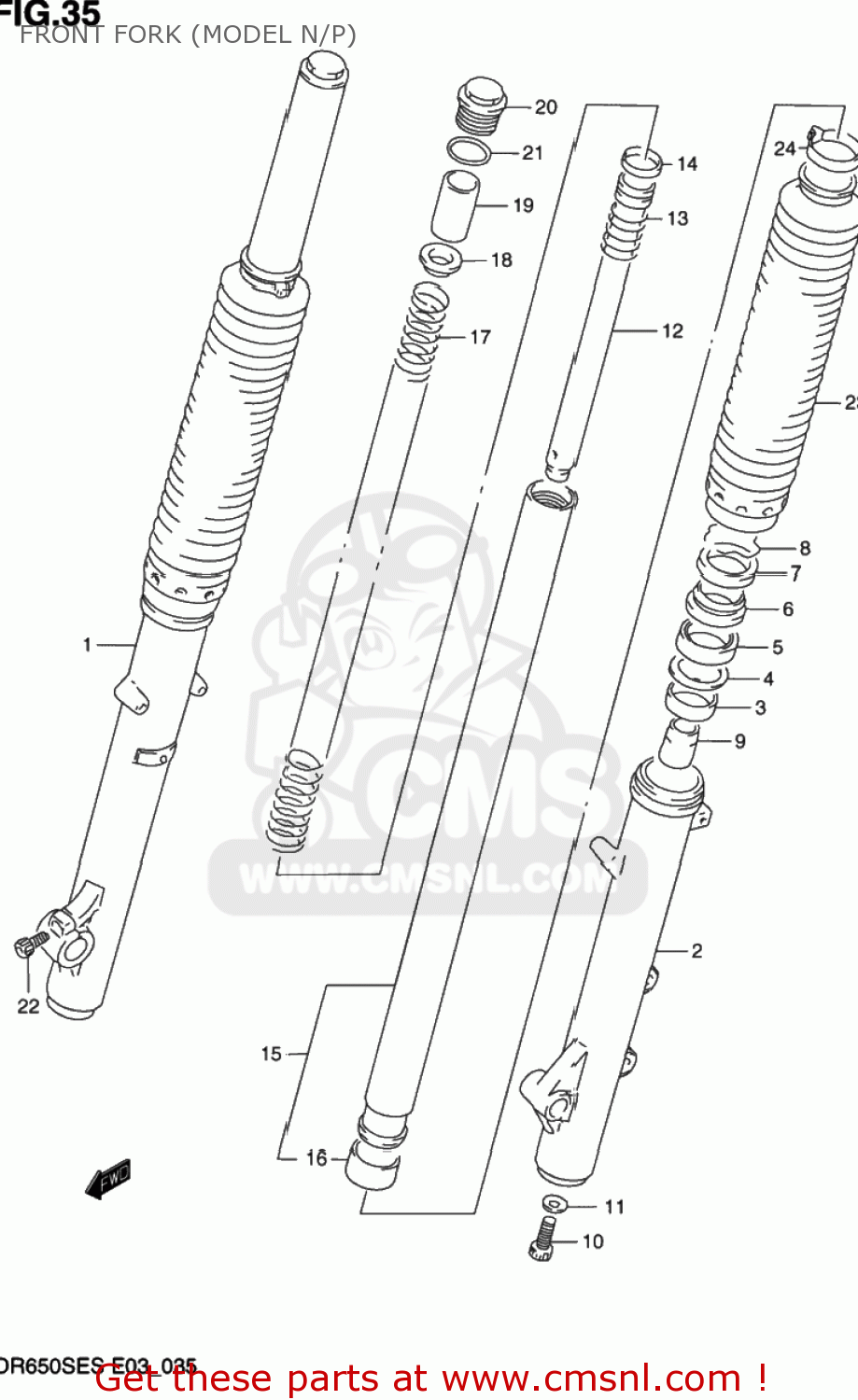

Front fork (model n/p) diagram DR650SE 1992 (N) USA (E03)
FRONT FORK (MODEL N/P) DR650SE 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110312E00
ref:
DAMPER ASSEMBLY,RIGHT
€ 816.50
5110412E00
ref:
DAMPER ASSEMBLY,LEFT
€ 631.00
1
5113012D10
ref: 1
TUBE,OUTER,R
€ 342.00
2
5114012D10
ref: 2
TUBE,OUTER,L
€ 342.00
3
5116728C00
ref: 3
51167-26E10
METAL,SLIDE
€ 20.50
4
5115805A00
ref: 4
WASHER,FORK OIL SEAL
€ 5.00
5
5115344B00
ref: 5
SEAL,OIL
€ 17.50
6
5117344B00
ref: 6
SEAL,DUST
€ 13.00
7
5115844B00
ref: 7
WASHER
€ 6.00
8
5115649440
ref: 8
RING,OIL SEAL STOPPER
€ 5.50
9
5119512D10
ref: 9
PIECE,OIL LOCK
€ 9.00
10
5114714200
ref: 10
BOLT(14X25)
€ 5.50
11
5114814200
ref: 11
GASKET (NAS)
€ 2.00
12
5114612E00
ref: 12
CYLINDER
€ 92.50
13
5117712D00
ref: 13
SPRING,REBOUND
€ 6.00
14
5119624A00
ref: 14
RING,FR FORK PISTON
€ 6.50
15
5111012D10
ref: 15
TUBE,INNER
€ 290.50
16
5112128C00
ref: 16
51121-26E10
PISTON
€ 23.00
17
5117112E00
ref: 17
SPRING,MAIN
€ 0.00
18
5117212D00
ref: 18
GUIDE,SPRING
€ 5.00
19
5117612D00
ref: 19
SPACER,SPRING
€ 8.00
20
5135110D00
ref: 20
CAP,FORK
€ 50.00
21
5111706C10
ref: 21
09280-32001
O-RING
€ 2.00
22
5113844B00
ref: 22
BOLT,SOCKET HEAD(8X22)
€ 4.00
23
5157112D0038K
ref: 23
BOOT(BLUE)
€ 73.50
24
5157512D00
ref: 24
BAND,BOOT
€ 7.50
