CARBURETOR (MODEL N/P)
DR650SE 1993 (P) USA (E03)

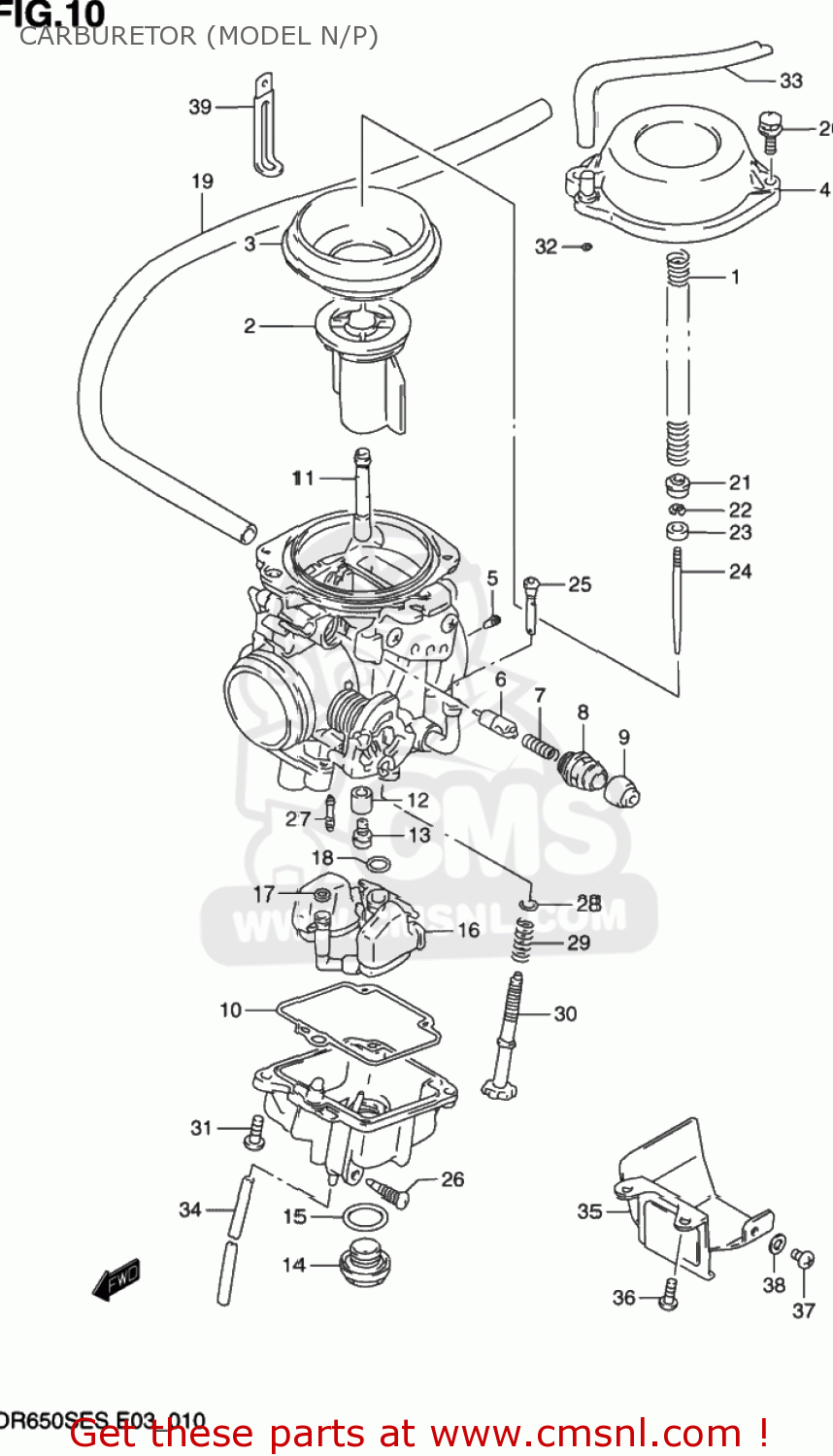

Carburetor (model n/p) diagram DR650SE 1993 (P) USA (E03)
CARBURETOR (MODEL N/P) DR650SE 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320012E20
ref:
CARBURETOR ASSEMBLY
€ 390.50
1320012E60
ref:
CARBURETOR ASSEMBLY
€ 325.00
1
1341717D00
ref: 1
SPRING
€ 5.50
2
1350112D00
ref: 2
VALVE,PISTON
€ 71.50
3
1350707D00
ref: 3
13507-07D01
DIAPHRAGM
€ 24.50
4
1350212D00
ref: 4
COVER,DIAPHRAGM
€ 38.50
5
0949328007
ref: 5
09493-28006
JET,AIR
€ 15.50
6
1341112D00
ref: 6
PLUNGER
€ 18.00
7
1341722010
ref: 7
SPRING
€ 3.00
8
1341843410
ref: 8
HOLDER,GUIDE
€ 6.50
9
1368104010
ref: 9
CAP
€ 3.00
10
1325844B00
ref: 10
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
11
0949400754
ref: 11
JET,NEEDLE(Y-2)
€ 21.00
12
1333107D00
ref: 12
RING
€ 4.50
13
0949127010
ref: 13
JET,MAIN(137.5)
€ 10.50
14
1324732210
ref: 14
SCREW,GUIDE
€ 13.00
15
1324941310
ref: 15
O RING,DRAIN PLUG
€ 5.00
16
1325012E00
ref: 16
13250-12EH0
FLOAT/NEEDLE VALVE ASSEMBLY
€ 79.50
17
1337446710
ref: 17
O RING
€ 4.50
18
1337444080
ref: 18
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
19
1368315A30
ref: 19
09354-65113-600
HOSE
€ 26.00
20
1360234390
ref: 20
02112-7516A
SCREW
€ 2.50
21
1333112D00
ref: 21
RING
€ 4.50
22
1339431210
ref: 22
CLIP,NEEDLE
€ 3.50
23
1338712E00
ref: 23
13387-07D00
RING
€ 4.50
24
1338312E20
ref: 24
NEEDLE,JET
€ 0.00
25
1323612C00
ref: 25
FILTER
€ 5.00
26
1324713A00
ref: 26
13247-02340
SCREW,DRAIN
€ 5.50
27
0949252010
ref: 27
JET,PILOT(52.5)
€ 12.50
28
1342738300
ref: 28
WASHER
€ 1.50
29
1327124D00
ref: 29
SPRING
€ 5.00
30
1326728A00
ref: 30
13267-14D10
SCREW
€ 22.50
31
0211205168
ref: 31
02112-05167
SCREW
€ 2.50
32
1327802340
ref: 32
O RING
€ 1.50
33
1368436510
ref: 33
09355-45855-600
HOSE
€ 14.00
34
1368418900
ref: 34
09355-30705-600
HOSE
€ 13.50
35
1341114A80
ref: 35
PLATE ASSEMBLY
€ 33.00
36
1360205129
ref: 36
02112-05127
SCREW
€ 2.50
37
1360204068
ref: 37
02112-0406B
SCREW
€ 2.00
38
1360602340
ref: 38
08322-0104A
WASHER
€ 5.00
39
0940406402
ref: 39
09404-06432
CLAMP
€ 2.50
