OIL COOLER
DR650SE 1993 (P) USA (E03)

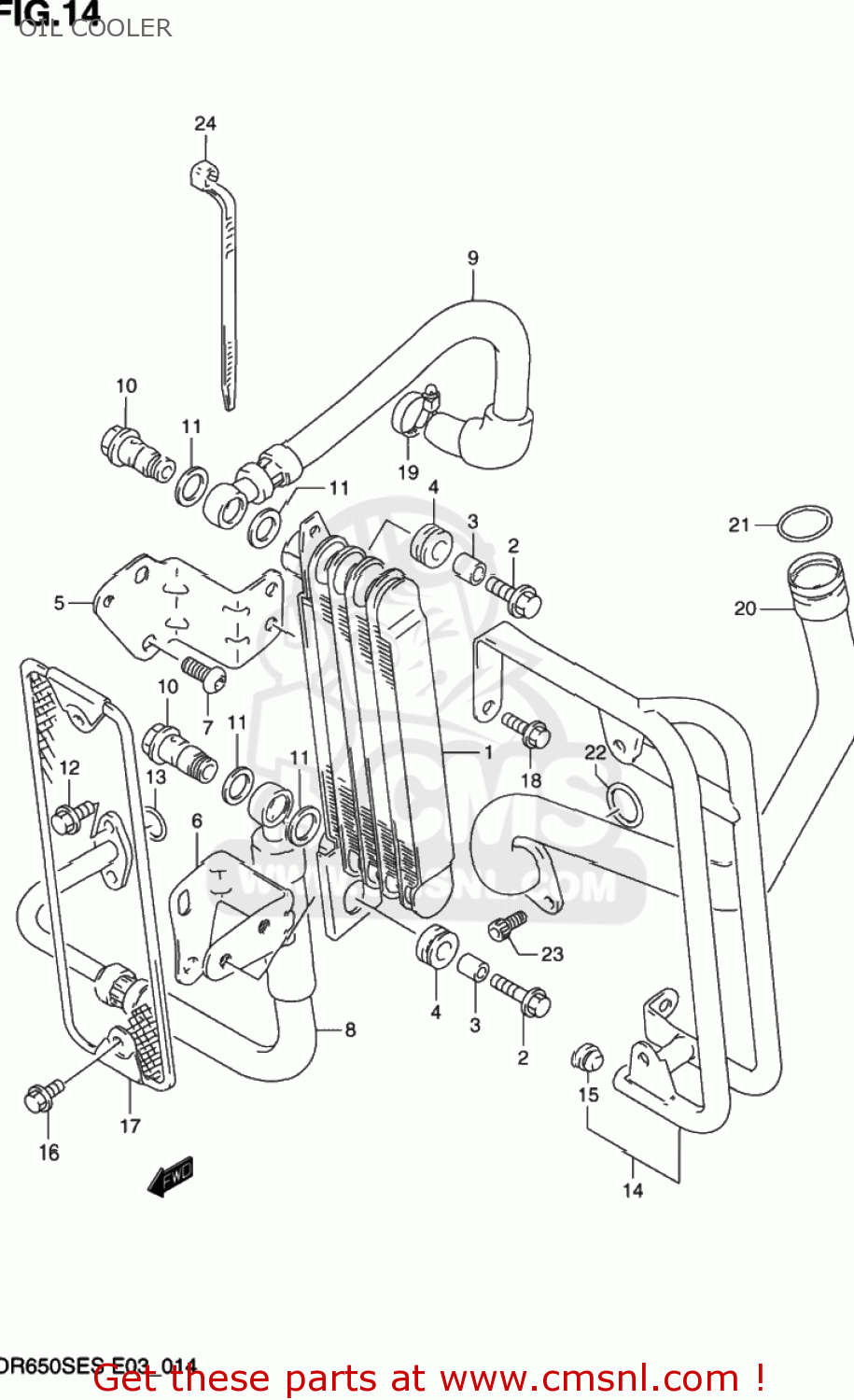

Oil cooler diagram DR650SE 1993 (P) USA (E03)
OIL COOLER DR650SE 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1660014A10
ref: 1
COOLER ASSEMBLY,OIL
€ 526.50
2
0911606143
ref: 2
09116-06115
BOLT 6X20
€ 2.00
3
0918006030
ref: 3
09180-06310
SPACER (6.8X10X10)
€ 2.00
4
0932010015
ref: 4
CUSHION
€ 2.50
5
1662014A10
ref: 5
BRACKET,OIL COOLER UPR
€ 10.00
6
1663014A10
ref: 6
BRACKET,OIL COOLER,LOWER
€ 10.50
7
0910608116
ref: 7
BOLT(8X12)
€ 2.50
8
1646014A10
ref: 8
HOSE,OIL COOLER NO.1
€ 114.50
9
1647014A10
ref: 9
HOSE,OIL COOLER NO.2
€ 92.00
10-1
0936012004
ref: 10-1
09360-12006
BOLT UNION
€ 13.50
10-2
0936012006
ref: 10-2
BOLT UNION
€ 13.50
11
0916814011
ref: 11
GASKET(14X20X1.5) (NAS)
€ 2.00
12-1
0154706165
ref: 12-1
01547-0616B
BOLT
€ 2.50
12-2
0154706163
ref: 12-2
01547-0616B
BOLT
€ 2.50
13
0928012008
ref: 13
O RING(D:2.4,ID:12.3)
€ 3.00
14-1
1664014A10
ref: 14-1
16640-14A12
GUARD,OIL COOLER
€ 69.50
14-2
1664014A11
ref: 14-2
16640-14A12
GUARD,OIL COOLER
€ 69.50
14-3
1664014A12
ref: 14-3
GUARD,OIL COOLER
€ 69.50
15
0925009005
ref: 15
PLUG(OD:13)
€ 0.00
16-1
0151706125
ref: 16-1
01550-0612A
BOLT 6X12
€ 2.50
16-2
0155006123
ref: 16-2
01550-0612A
BOLT
€ 2.50
17
1665014A10
ref: 17
BUMPER,OIL COOLER
€ 26.50
18-1
0154706127
ref: 18-1
BOLT
€ 2.00
18-2
0713006127
ref: 18-2
BOLT
€ 1.00
19
0940215502
ref: 19
09402-17511
CLAMP
€ 8.00
20
1116012D01
ref: 20
PIPE COMP,OIL RETURN
€ 44.50
21
0928022016
ref: 21
O RING(D:3.7,ID:21.7)
€ 5.50
22-1
0928022010
ref: 22-1
09280-24010
O RING(D:2.4,ID:23.7)
€ 5.50
22-2
0928024005
ref: 22-2
09280-24010
O-RING (D:2.4 ID:23.7)
€ 5.50
23-1
0711006167
ref: 23-1
07130-06167
BOLT
€ 3.00
23-2
0713006163
ref: 23-2
07130-0616B
BOLT,OIL FILLE
€ 3.00
24
0940714403
ref: 24
CLAMP(L:125)
€ 2.50
