SPEEDOMETER (MODEL R/S)
DR650SE 1993 (P) USA (E03)

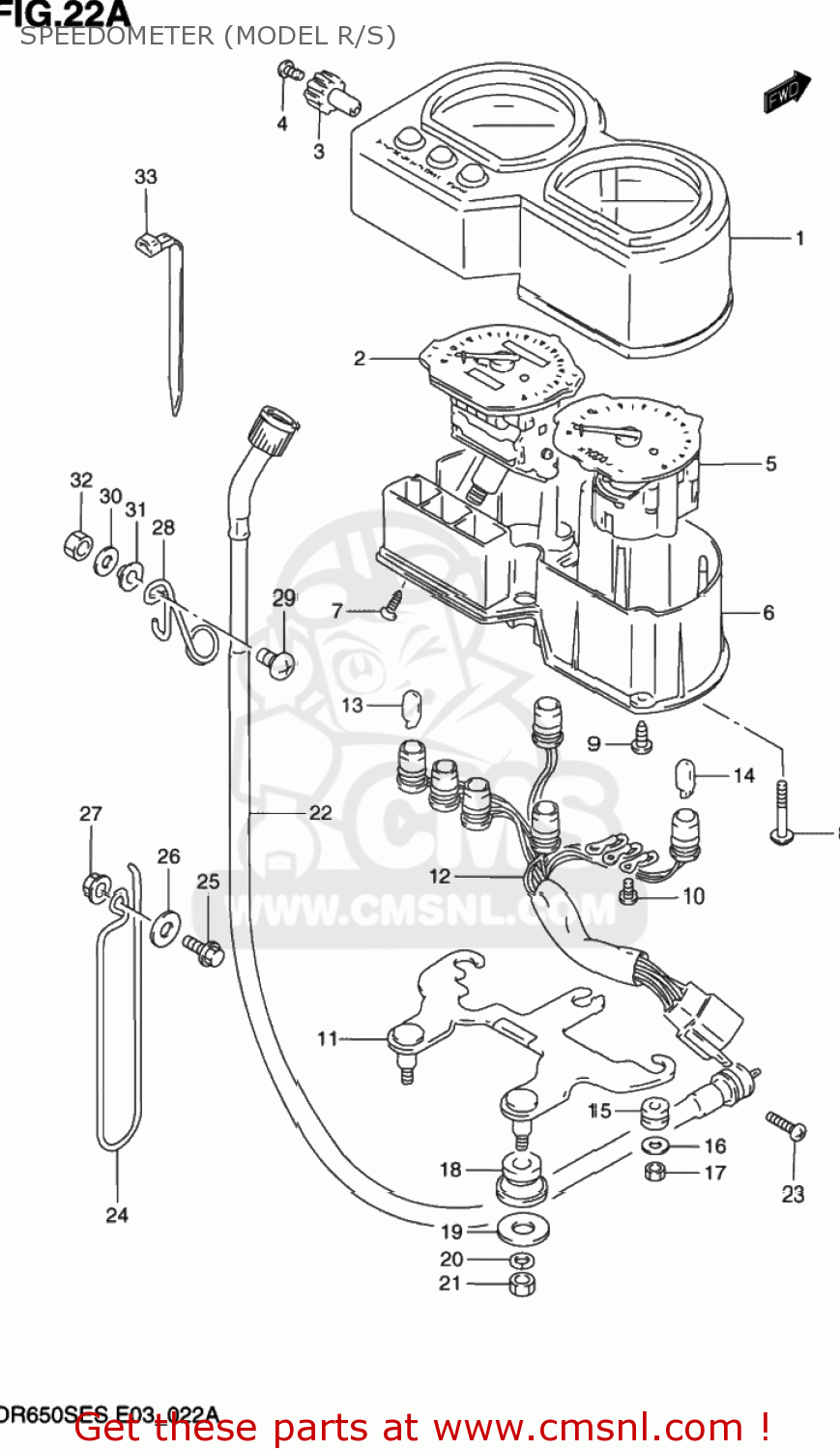

Speedometer (model r/s) diagram DR650SE 1993 (P) USA (E03)
SPEEDOMETER (MODEL R/S) DR650SE 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3415012E00
ref: 1
34150-12E10
VISOR
€ 76.00
2
3412012E00
ref: 2
SPEEDOMETER (MILE/KILO)
€ 0.00
3
3498029B50
ref: 3
34124-34A00
KNOB
€ 4.00
4-1
3498113A00
ref: 4-1
09139-02003
ROTOR,SPEED
€ 2.00
4-2
0913902003
ref: 4-2
SCREW(2X6)
€ 2.00
5
3422012E20
ref: 5
TACHOMETER
€ 467.00
6
3411112E00
ref: 6
CASE,METER
€ 52.50
7
0211274106
ref: 7
02112-7410B
SCREW
€ 2.00
8-1
3414912E00
ref: 8-1
34283-32B00
SCREW
€ 2.00
8-2
3428332B00
ref: 8-2
SCREW (4X36)
€ 2.00
9-1
3418314A00
ref: 9-1
34184-12B00
SCREW
€ 1.50
9-2
3418412B00
ref: 9-2
SCREW
€ 1.50
10
0211233106
ref: 10
02112-33103
SCREW
€ 1.50
11
3495012E00
ref: 11
BRACKET
€ 55.50
12
3417012E00
ref: 12
SOCKET,METER
€ 62.00
13
0947112028
ref: 13
BULB(12V3.4W,T10)
€ 3.50
14
0947112077
ref: 14
BULB(12V1.7W,T10,WB121)
€ 1.00
15
3418932B00
ref: 15
CUSHION
€ 5.00
16
0916005017
ref: 16
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
17
0831011057
ref: 17
08310-00057
NUT 5MM
€ 2.50
18
3495631001
ref: 18
CUSHION,METER BRACKET
€ 4.50
19
0916008057
ref: 19
09160-08135
WASHER (8.5X20X1.6)
€ 2.00
20-1
0832101083
ref: 20-1
08321-0108A
LOCK WASHER
€ 2.50
20-2
0916208008
ref: 20-2
WASHER,LOCK
€ 2.00
21
0831000083
ref: 21
08310-0008A
NUT
€ 1.50
22
3491012E00
ref: 22
CABLE ASSY,SPEEDOMETER
€ 40.50
23
0211205163
ref: 23
02112-0516A
SCREW
€ 2.00
24
3493814D30
ref: 24
GUIDE,METER CABLE NO.2
€ 8.00
25
0155006203
ref: 25
01550-0620A
BOLT
€ 2.50
26
0916006066
ref: 26
WASHER(6.5X20X1.6)
€ 2.00
27
0831610063
ref: 27
08316-1006B
NUT
€ 2.50
28
3493814D20
ref: 28
34938-14D21
GUIDE,METER CABLE NO.3
€ 6.50
29
0214206163
ref: 29
02142-0616A
SCREW
€ 2.50
30
0916006057
ref: 30
09160-06109
WASHER
€ 2.00
31
0916906053
ref: 31
WASHER
€ 2.00
32
0831000063
ref: 32
08310-0006A
NUT 6MM
€ 2.00
33
0940714403
ref: 33
CLAMP(L:125)
€ 2.50
