FRAME (MODEL T/V/W)

DR650SE 1996 (T) (E02 E04 E17 E18 E22 E24 E34 E37) P37

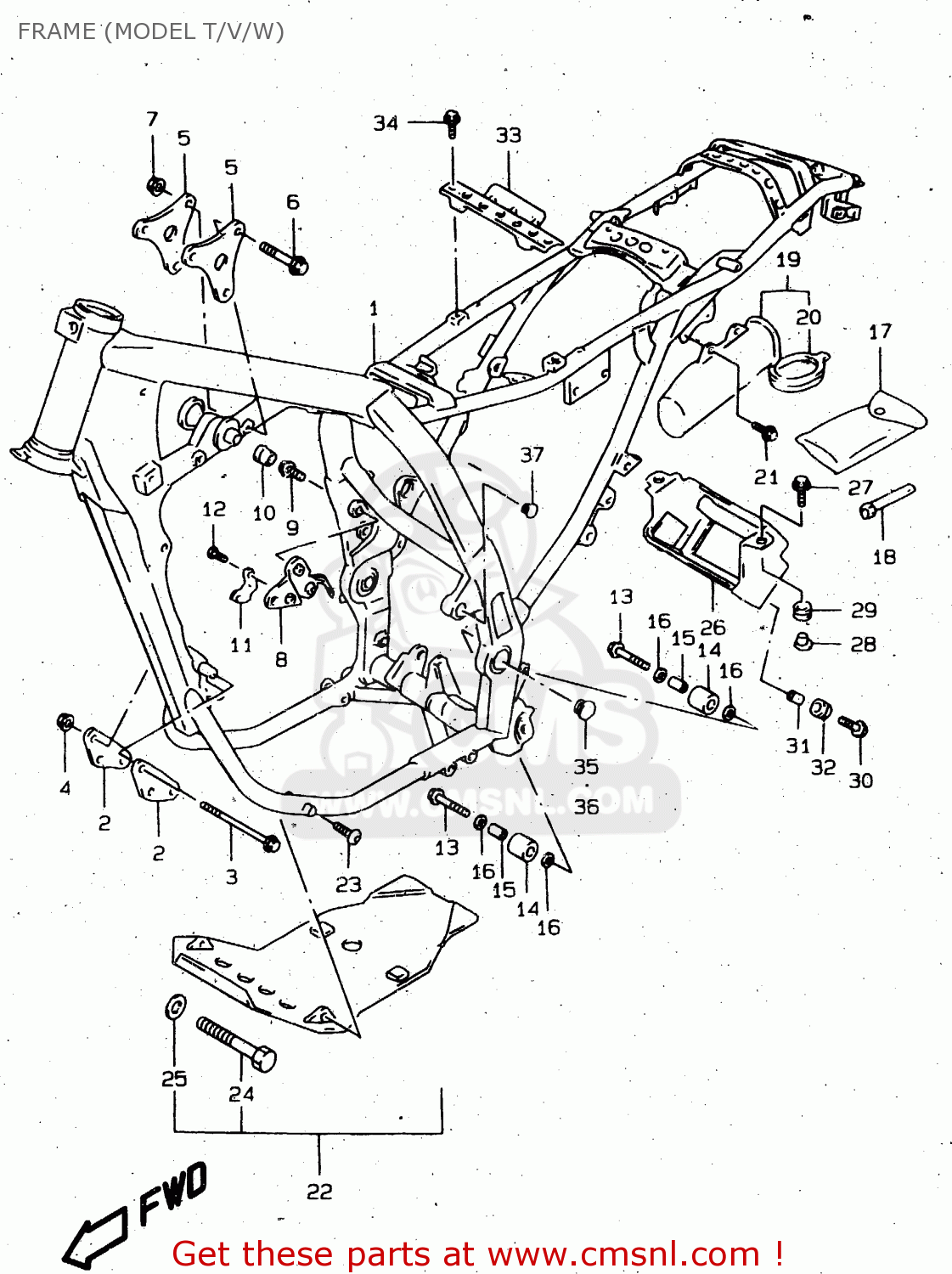

Frame (model t/v/w) diagram DR650SE 1996 (T) (E02 E04 E17 E18 E22 E24 E34 E37) P37

FRAME (MODEL T/V/W) DR650SE 1996 (T) (E02 E04 E17 E18 E22 E24 E34 E37) P37
FRAME (MODEL T/V/W) DR650SE 1996 (T) (E02 E04 E17 E18 E22 E24 E34 E37) P37
FRAME (MODEL T/V/W) DR650SE 1996 (T) (E02 E04 E17 E18 E22 E24 E34 E37) P37
prices are in EUR
ref
part #
description
quantity
1
4110032E00Z16
ref: 1
MODEL T/V FOR E3D
FRAME COMP
€ 2,041.50
1
4110032E0024K
ref: 1
MODEL T/V FOR 019
FRAME COMP
€ 2,021.50
1
4110032E10Z16
ref: 1
E18 FOR E3D
FRAME (PURPLE)
€ 0.00
1
4110032E1024K
ref: 1
E18 FOR 019
FRAME(CHARCOAL)
€ 0.00
1
4110032E30Z16
ref: 1
MODEL W FOR E3D
FRAME COMP
€ 2,041.50
1
4110032E3024K
ref: 1
MODEL W FOR 019
FRAME(CHARCOAL)
€ 2,021.50
2
4191132E00
ref: 2
PLATE,ENG MTG FR
4191132E00
€ 16.00
3
0910308139
ref: 3
BOLT(8X100)
0910308139
€ 5.50
4
0831921083
ref: 4
NUT
€ 1.50
5
4199132E00
ref: 5
PLATE,ENG MTG UPR
4199132E00
€ 21.50
6
0910308027
ref: 6
MODEL T/V
BOLT 8X55
€ 3.50
6
0910308170
ref: 6
MODEL W
BOLT
0910308170
€ 3.50
7
0831931083
ref: 7
NUT
0831931083
€ 2.50
8
4193032E00019
ref: 8
PLATE,ENG MTG RR,R
4193032E00019
€ 17.00
9
0910308254
ref: 9
MODEL T/V
BOLT(8X20)
0910308254
€ 3.00
9
0155008203
ref: 9
MODEL W
BOLT
0155008203
€ 3.00
10
0925020012
ref: 10
PLUG(OD:22)
0925020012
€ 5.50
11
4325132E00
ref: 11
BRACKET,STOP SWITCH
4325132E00
€ 8.00
12
0216206163
ref: 12
SCREW
0216206163
€ 2.50
13
0910308178
ref: 13
BOLT(8X38)
0910308178
€ 5.00
14
4391113E00
ref: 14
ROLLER,CHAIN CONTROL UPR
4391113E00
€ 10.00
15
0918008119
ref: 15
SPACER(8.6X12X25.5)
0918008119
€ 6.50
16
0821108201
ref: 16
WASHER
0821108201
€ 2.00
17
0980021034
ref: 17
TOOL ASSY
€ 55.00
18
0981600100
ref: 18
SPARK PLUG WRENCH(16)
0981600100
€ 7.50
19
4155032E00
ref: 19
HOLDER,TOOL
4155032E00
€ 31.50
20
4155237210
ref: 20
CAP,HOLDER
4155237210
€ 5.00
21
0911606006
ref: 21
BOLT(6X16)
0911606006
€ 2.00
22
4250032810
ref: 22
OPT
Skid Plate
4250032810
€ 279.50
23
0910608098
ref: 23
OPT
BOLT(8X14)
0910608098
€ 6.50
24
0910310154
ref: 24
OPT
BOLT(10X245)
0910310154
€ 16.00
25
0916010091
ref: 25
OPT
WASHER(10X24X2)
0916010091
€ 5.50
26
4154032E00
ref: 26
HOLDER,BATTERY
€ 50.50
27
0911606167
ref: 27
BOLT(6X20)
0911606167
€ 2.00
28
4157047D00
ref: 28
MODEL T
SPACER COMP,BATTERY
€ 3.00
28
0916906065
ref: 28
MODEL V/W
WASHER
0916906065
€ 3.50
29
0932008021
ref: 29
CUSHION
0932008021
€ 4.00
30
0911606168
ref: 30
BOLT(6X16)
0911606168
€ 2.50
31
0918006038
ref: 31
SPACER(6.1X9X7.5)
0918006038
€ 2.00
32
0932008021
ref: 32
CUSHION
0932008021
€ 4.00
33
4156132E00
ref: 33
PLATE,BATTERY FITING
4156132E00
€ 9.50
34
0155006103
ref: 34
BOLT
0155006103
€ 2.50
35
4358532E00
ref: 35
PLUG,FRAME PIVOR,R
4358532E00
€ 3.00
36
4359532E00
ref: 36
PLUG,FRAME PIVOR,L
4359532E00
€ 3.00
37
4358632E00
ref: 37
PLUG,FRAME BOSS
4358632E00
€ 2.50
