HANDLE SWITCH

DR650SE 1996 (T) (E02 E04 E17 E18 E22 E24 E34 E37) P37

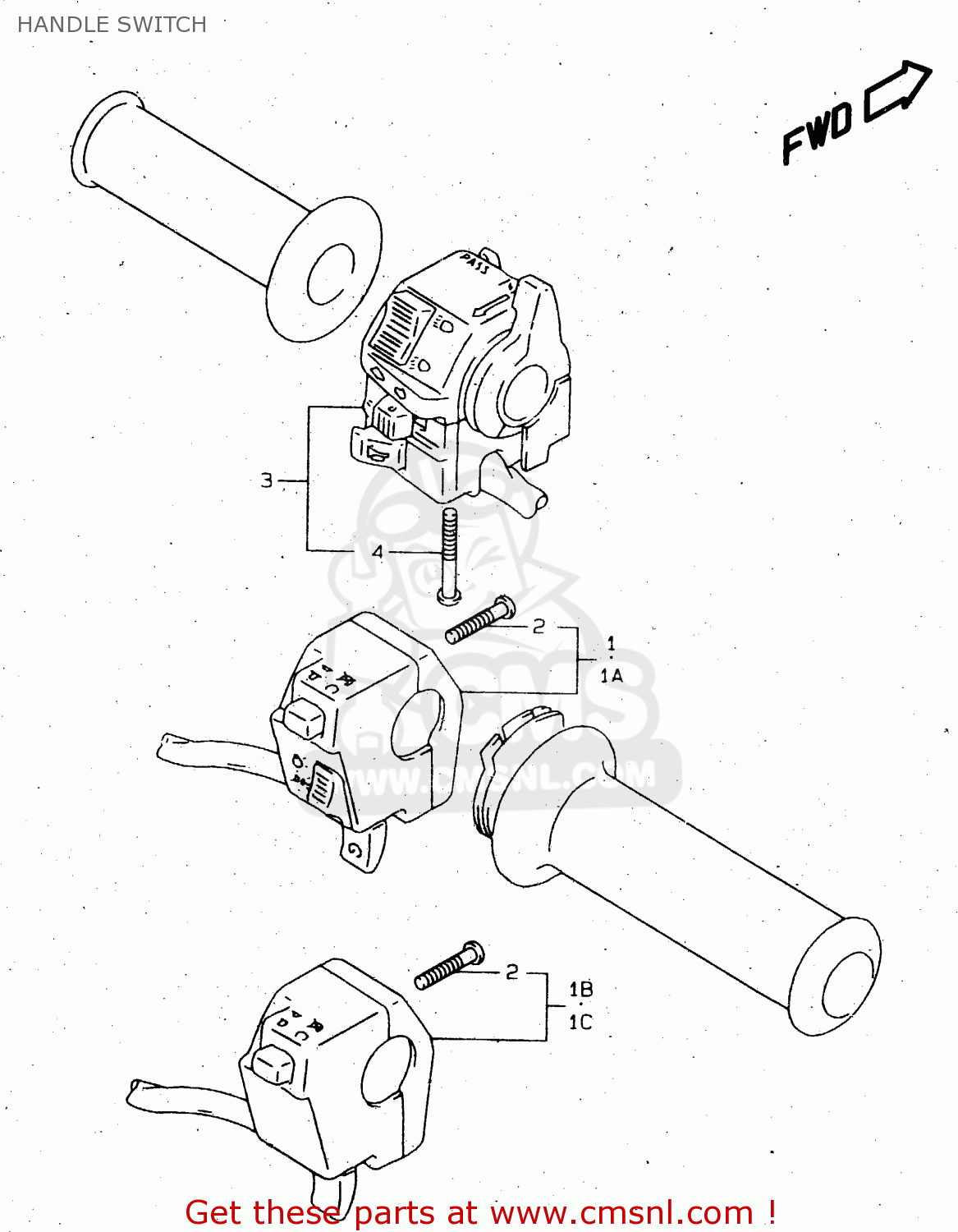

Handle switch diagram DR650SE 1996 (T) (E02 E04 E17 E18 E22 E24 E34 E37) P37

prices are in EUR

ref

part #

description

quantity

3720032E00
ref: 1
MODEL T/V

SWITCH ASSY,HANDLE,R

€ 104.00

3720032E20
ref: 1A
MODEL W/X

SWITCH ASSY,HANDLE,R

€ 139.00

3720032E10
ref: 1B
MODEL T/V E24

SWITCH ASSY,HANDLE,R

€ 0.00

3720032E30
ref: 1C
MODEL W/X E24

SWITCH ASSY,HANDLE,R

€ 81.00

0912505066
ref: 2

SCREW(5X25)

€ 2.00

3740032E00
ref: 3

SWITCH ASSY,HANDLE,L

€ 133.50

0211205455
ref: 4

SCREW, 5X45

€ 4.00
