RIGHT HANDLE LEVER

DR650SE 1996 (T) (E02 E04 E17 E18 E22 E24 E34 E37) P37

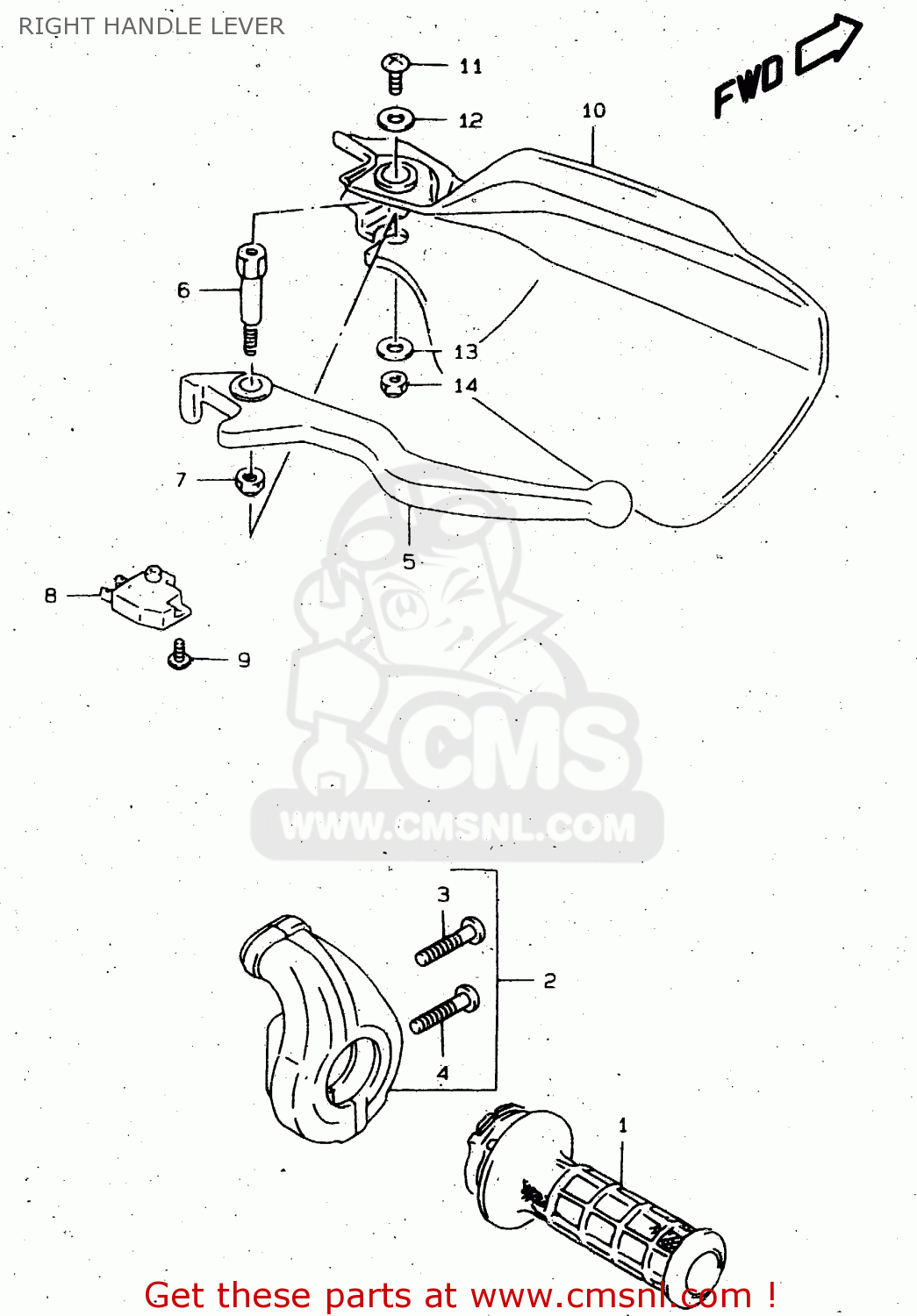

Right handle lever diagram DR650SE 1996 (T) (E02 E04 E17 E18 E22 E24 E34 E37) P37

prices are in EUR

ref

part #

description

quantity

5711012D11
ref: 1

GRIP,THROTTLE

€ 25.50

5710014D00
ref: 2

CASE ASSY,THROTTLE

€ 24.00

0912505066
ref: 3

SCREW(5X25)

€ 2.00

0211205203
ref: 4

SCREW

€ 2.50

5742113001
ref: 5

LEVER,BRAKE

€ 18.00

5743105D00
ref: 6

BOLT,BRAKE LEVER PIVOT

€ 9.00

0831921063
ref: 7
MODEL T/V/W

NUT

€ 2.50

5743309F00
ref: 7
MODEL X

NUT,LEVER PIVOT

€ 2.50

5746017C00
ref: 8

SWITCH ASSEMBLY,STOP

€ 32.50

5746517C00
ref: 9

SCREW

€ 1.50

5734105D00Z16
ref: 10
FOR E3D

COVER,KNUCKLE,R

€ 31.50

5734105D00019
ref: 10
FOR 019, L9W

COVER,KNUCKLE,RIGHT

€ 21.00

0214205103
ref: 11

SCREW

€ 2.50

0916005017
ref: 12
MODEL T/V

WASHER (5.5X16X1.2)

€ 2.50

0916005043
ref: 12
MODEL W/X

WASHER(5.5X16X1.2)

€ 2.50

0916006042
ref: 13
MODEL T/V

WASHER (6.5X17X1.6)

€ 2.00

0916006130
ref: 13
MODEL W/X

WASHER(6.5X16X1.6)

€ 2.00

0831921068
ref: 14

NUT 6MM

€ 2.00
