FUEL COCK

DR650SE 1996 (T) (E02 E04 E17 E18 E22 E24 E34 E37) P37

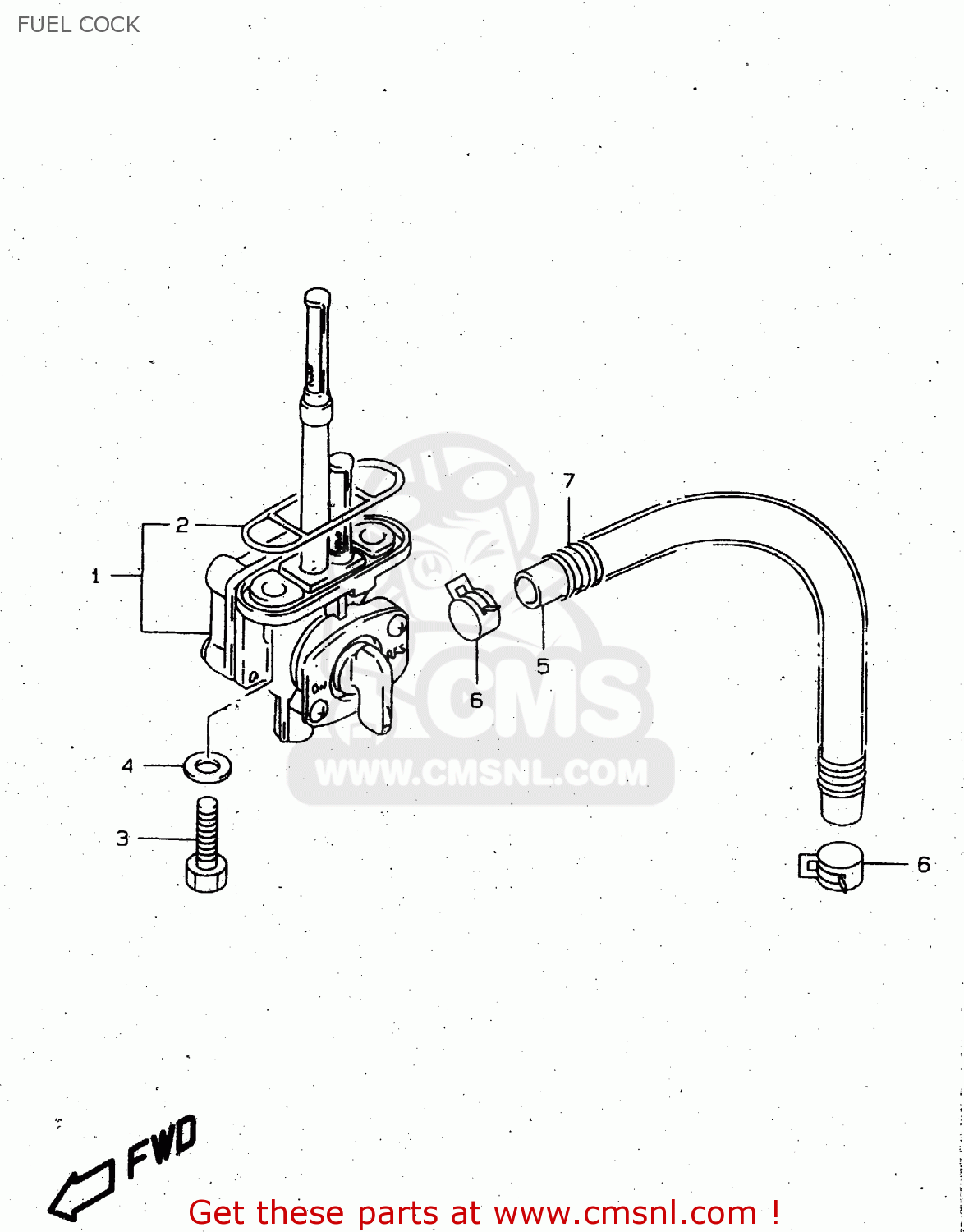

Fuel cock diagram DR650SE 1996 (T) (E02 E04 E17 E18 E22 E24 E34 E37) P37

prices are in EUR

ref

part #

description

quantity

4430032E00
ref: 1

COCK ASSY,FUEL

€ 99.50

4434887420
ref: 2

GASKET,JOINT (NAS)

€ 5.00

0912806057
ref: 3

BOLT(6X20)

€ 2.00

0916806026
ref: 4

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

0935570125600
ref: 5
MODEL T

HOSE(7X12X600)

€ 26.00

0934307518
ref: 5
MODEL V/W

HOSE (7X11X160)

€ 17.50

0935470113600
ref: 5
MODEL X

HOSE(7X11X600)

€ 17.50

0940110409
ref: 6

CLIP

€ 2.50

0944013041
ref: 7

SPRING

€ 3.50
