CARBURETOR
DR650SEU 1997 (V) GERMANY (E22)

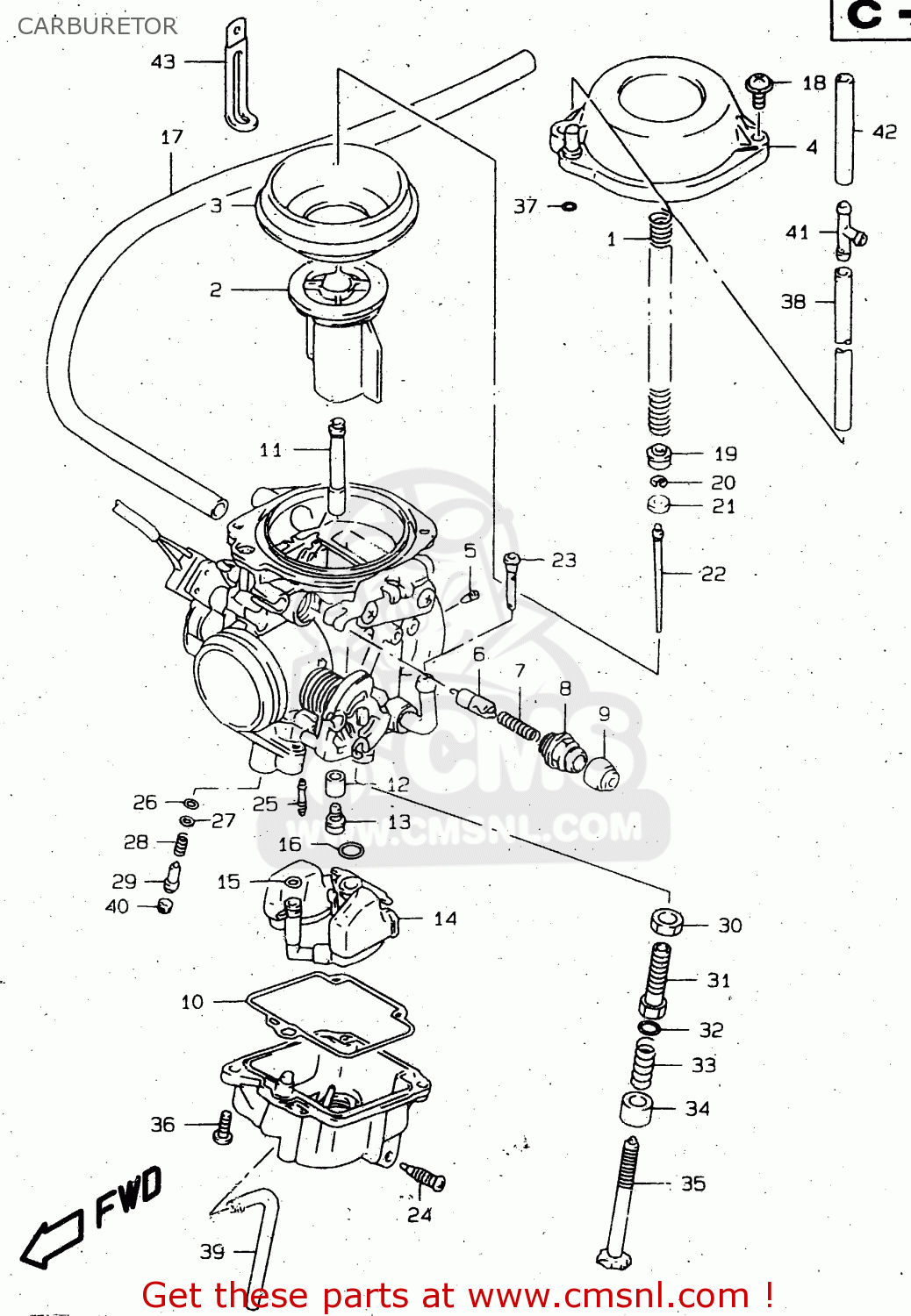

Carburetor diagram DR650SEU 1997 (V) GERMANY (E22)
CARBURETOR DR650SEU 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
0
1320032E00
ref: 0
CARBURETOR ASS
€ 562.00
0
1320032E20
ref: 0
E18
CARBURETOR ASSY
€ 0.00
0
1320032E30
ref: 0
DR650SET/SEV/SEW/SEX
CARBURETOR ASSY
€ 584.50
0
1320032E40
ref: 0
DR650SEUT/SEUV/SEUW/
CARBURETOR ASSY
€ 0.00
0
1320032E80
ref: 0
E37, P37
CARBURETOR ASSY
€ 0.00
1
1341717D00
ref: 1
SPRING
€ 5.50
2
1350132E00
ref: 2
VALVE,PISTON
€ 57.00
2
1350132E10
ref: 2
DR650SEUT/SEUV/SEUW/
VALVE,PISTON
€ 54.50
3
1350707D01
ref: 3
DIAPHRAGM
€ 24.50
4
1350241C00
ref: 4
COVER,DIAPHRAGM
€ 31.50
4
1350212D10
ref: 4
E18
COVER,DIAPHRAGM
€ 29.00
5
0949320007
ref: 5
JET,AIR(1.0)
€ 10.00
6
1341112D00
ref: 6
PLUNGER
€ 18.00
7
1341722010
ref: 7
SPRING
€ 3.00
8
1341843410
ref: 8
HOLDER,GUIDE
€ 6.50
9
1368104010
ref: 9
CAP
€ 3.00
10
1325844B00
ref: 10
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
11
0949400884
ref: 11
<-09494-00882
JET,NEEDLE(Y-5M)
€ 33.50
12
1333107D00
ref: 12
RING
€ 4.50
13
0949128010
ref: 13
JET,MAIN(140)
€ 8.50
13
0949127010
ref: 13
E18
JET,MAIN(137.5)
€ 10.50
14
1325012E00
ref: 14
FLOAT/NEEDLE VALVE ASSEMBLY
€ 79.50
14
1325012EH0
ref: 14
E37, P37
FLOAT/NEEDLE VALVE ASSY
€ 79.50
15
1337446710
ref: 15
O RING
€ 4.50
16
1337444080
ref: 16
O-RING,NEEDLE VALVE
€ 6.00
17
1368332E00
ref: 17
HOSE(6.5X10.5X275)
€ 12.50
18
0211275163
ref: 18
SCREW
€ 2.50
19
1333112D00
ref: 19
RING
€ 4.50
20
1339431210
ref: 20
CLIP,NEEDLE
€ 3.50
21
1338707D00
ref: 21
RING
€ 4.50
22
1338332E00
ref: 22
NEEDLE,JET
€ 13.00
22
1338332E20
ref: 22
E18
NEEDLE,JET(6H21)
€ 13.00
23
1323612C00
ref: 23
FILTER
€ 5.00
24
1324713A00
ref: 24
SCREW,DRAIN
€ 5.50
25
0949242010
ref: 25
JET,PILOT(42.5)
€ 8.50
26
1329529900
ref: 26
O RING,PILOT AIR SCREW
€ 4.00
27
1329129900
ref: 27
WASHER
€ 2.00
28
1326847070
ref: 28
SPRING
€ 5.00
29
1327947070
ref: 29
SCREW,PILOT
€ 11.50
29
1327947070
ref: 29
DR650SET/SEV/SEW/SEX
SCREW,PILOT
€ 11.50
29
1327947070
ref: 29
DR650SEUT/SEUV/SEUW/
SCREW,PILOT
€ 11.50
30
1360737010
ref: 30
NUT
€ 2.00
31
1326731D00
ref: 31
ADJUSTER
€ 21.50
32
1361543010
ref: 32
WASHER,STARTER SHAFT
€ 2.50
33
1327133C00
ref: 33
SPRING
€ 4.50
34
1343295210
ref: 34
RING
€ 4.00
35
1326731D10
ref: 35
ADJUSTER
€ 12.00
36
1360105148
ref: 36
SCREW(5X14)
€ 3.00
37
1327802340
ref: 37
O RING
€ 1.50
38
0935545855600
ref: 38
L:600->250
HOSE(4.5X8.5X600)
€ 14.00
38
0935545855600
ref: 38
E18, L:600->225
HOSE(4.5X8.5X600)
€ 14.00
39
1368432E00
ref: 39
~F.NO.JS1SP46A000504
HOSE (3X5X425)
€ 9.00
39
1368432E10
ref: 39
F.NO.JS1SP46A0005042
HOSE(3X5X450)
€ 9.00
40
1328105A00
ref: 40
E18
PLUG
€ 3.50
41
0936706002
ref: 41
E18
JOINT,3 WAY
€ 3.00
42
0935545855600
ref: 42
E18, L:600->70
HOSE(4.5X8.5X600)
€ 14.00
43
0940406432
ref: 43
CLAMP(L:65)
€ 2.50
