TRANSMISSION
DR650SEU 1997 (V) GERMANY (E22)

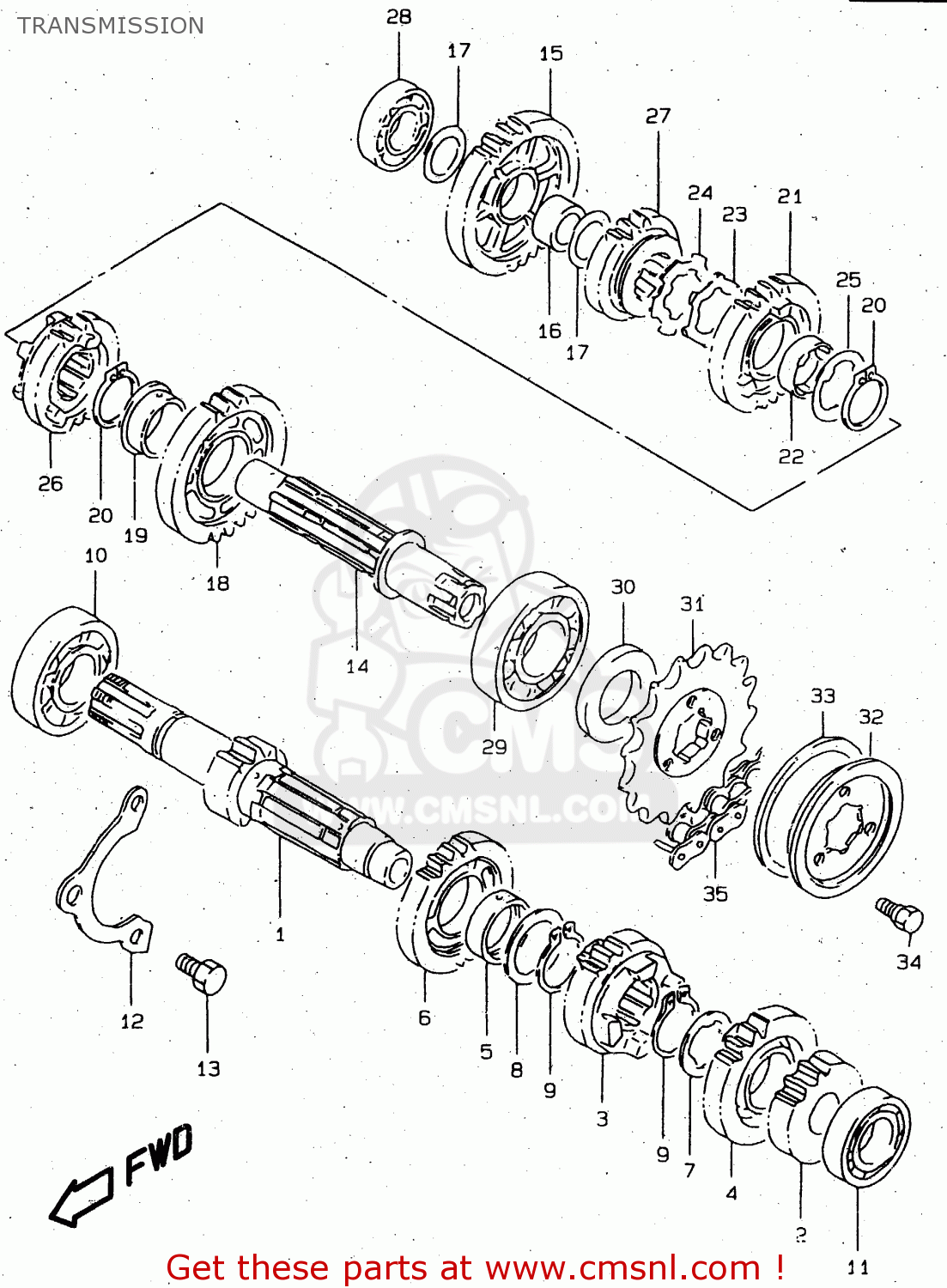

Transmission diagram DR650SEU 1997 (V) GERMANY (E22)
TRANSMISSION DR650SEU 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
2412014810
ref: 1
<-24121-14A10
SHAFT SET,CNTR
€ 175.00
2
2422114A10
ref: 2
GEAR,2ND DRIVE
€ 66.50
3
2423112D20
ref: 3
GEAR,THIRD DRIVE
€ 73.00
4
2424114A00
ref: 4
MODEL T/V
GEAR,FOURTH DRIVE
€ 69.00
4
2424114A10
ref: 4
MODEL W/X
GEAR,4TH DRIVE
€ 69.00
4
2424114A00
ref: 4
MODEL W, P37
GEAR,FOURTH DRIVE
€ 69.00
4
2424114A10
ref: 4
MODEL X, P37
GEAR,4TH DRIVE
€ 69.00
5
0930025023
ref: 5
BUSHING 25X29X10
€ 9.50
6
2425114A10
ref: 6
GEAR,5TH DRIVE
€ 69.00
7
0916725012
ref: 7
WASHER,LOCK
€ 3.50
8
0821125341
ref: 8
MODEL T
WASHER
€ 3.50
8
0918125167
ref: 8
MODEL V/W/X
SHIM(25X34X1)
€ 3.50
9
0938025003
ref: 9
RING,SNAP
€ 3.00
10
0926222028
ref: 10
BEARING(22X56X16)
€ 59.50
11
0926217018
ref: 11
BEARING
€ 25.00
12
2474114A00
ref: 12
RETAINER,CNTR SHAFT BEARING
€ 5.00
13
0150008163
ref: 13
BOLT
€ 2.00
14
2413014A10
ref: 14
<-24131-14A10
SHAFT,DRIVE
€ 129.50
15
2431114A01
ref: 15
GEAR,1ST DRIVEN
€ 67.50
16
0930020032
ref: 16
BUSH(20X24X13)
€ 10.00
17
0821120301
ref: 17
MODEL T
WASHER
€ 3.00
17
0918120195
ref: 17
MODEL V/W/X
SHIM(20X30X1)
€ 3.00
18
2432114A10
ref: 18
GEAR,2ND DRIVEN
€ 69.00
19
0930125002
ref: 19
BUSH
€ 10.50
20
0938025003
ref: 20
RING,SNAP
€ 3.00
21
2433114A20
ref: 21
GEAR,3RD DRIVEN
€ 72.50
22
2433224500
ref: 22
BUSHING
€ 9.50
23
0916925001
ref: 23
WASHER
€ 2.00
24
0916725013
ref: 24
WASHER,LOCK
€ 2.50
25
0916725016
ref: 25
WASHER,LOCK
€ 3.00
26
2434114A10
ref: 26
<-24341-14A01
GEAR,4TH DRIVEN
€ 67.00
27
2435114A00
ref: 27
MODEL T/V
GEAR,FIFTH DRIVEN
€ 68.50
27
2435114A10
ref: 27
MODEL W/X
GEAR,5TH DRIVEN
€ 68.50
27
2435114A00
ref: 27
MODEL W, P37
GEAR,FIFTH DRIVEN
€ 68.50
27
2435114A10
ref: 27
MODEL X, P37
GEAR,5TH DRIVEN
€ 68.50
28
0926220059
ref: 28
BEARING(20X42X12)
€ 14.50
29
0926225083
ref: 29
BALL BEARING 25X62X17
€ 49.00
30
0928325096
ref: 30
SEAL,OIL(25X44X7)
€ 8.50
31
2751131D00
ref: 31
SPROCKET,ENGINE(15T)
€ 23.50
32
2751244B00
ref: 32
PLATE,ENGINE SPROCKET
€ 4.00
33
2751737400
ref: 33
DAMPER,ENGINE SPROCKET
€ 9.50
34
0911106039
ref: 34
BOLT(6X13)
€ 6.00
35
2760032C10110
ref: 35
CHAIN,DRIVE(DID525V9,110L)
€ 160.00
