OIL PIPE

DR650SEU 1997 (V) GERMANY (E22)

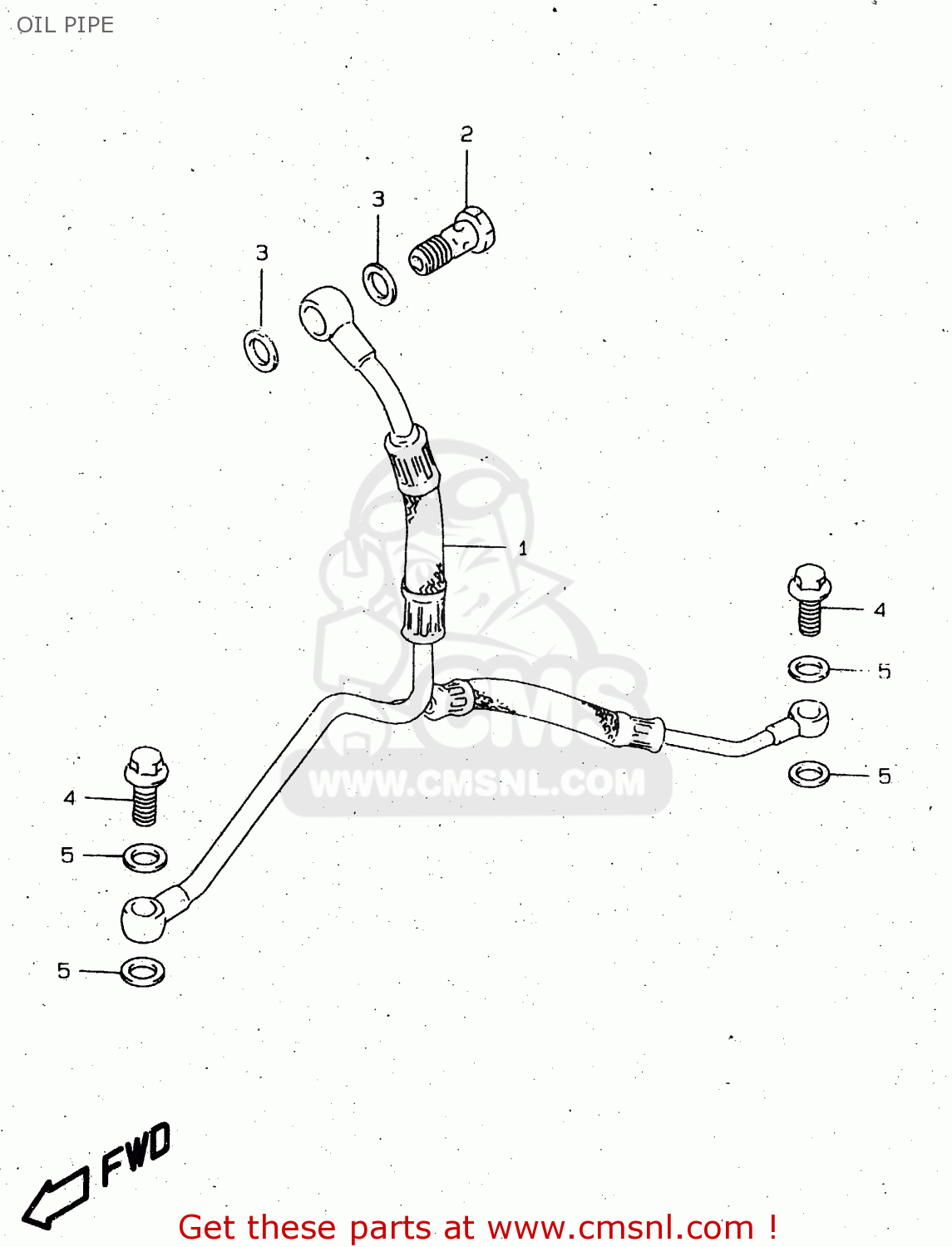

Oil pipe diagram DR650SEU 1997 (V) GERMANY (E22)

OIL PIPE DR650SEU 1997 (V) GERMANY (E22)
OIL PIPE DR650SEU 1997 (V) GERMANY (E22)
OIL PIPE DR650SEU 1997 (V) GERMANY (E22)
prices are in EUR
ref
part #
description
quantity
1
1648032E00
ref: 1
MODEL T/V
PIPE,T/M & CSHAFT OIL
€ 157.50
1
1648032E10
ref: 1
MODEL W/X
PIPE,T/M & CSHAFT OIL
1648032E10
€ 117.50
2
0936012010
ref: 2
BOLT UNION
€ 7.50
3
0916812017
ref: 3
GASKET(12X17X1) (NAS)
0916812017
€ 2.00
4
0936010032
ref: 4
BOLT UNION
0936010032
€ 3.00
5
0916810007
ref: 5
GASKET(10.1X16X1) (NAS)
0916810007
€ 2.00
