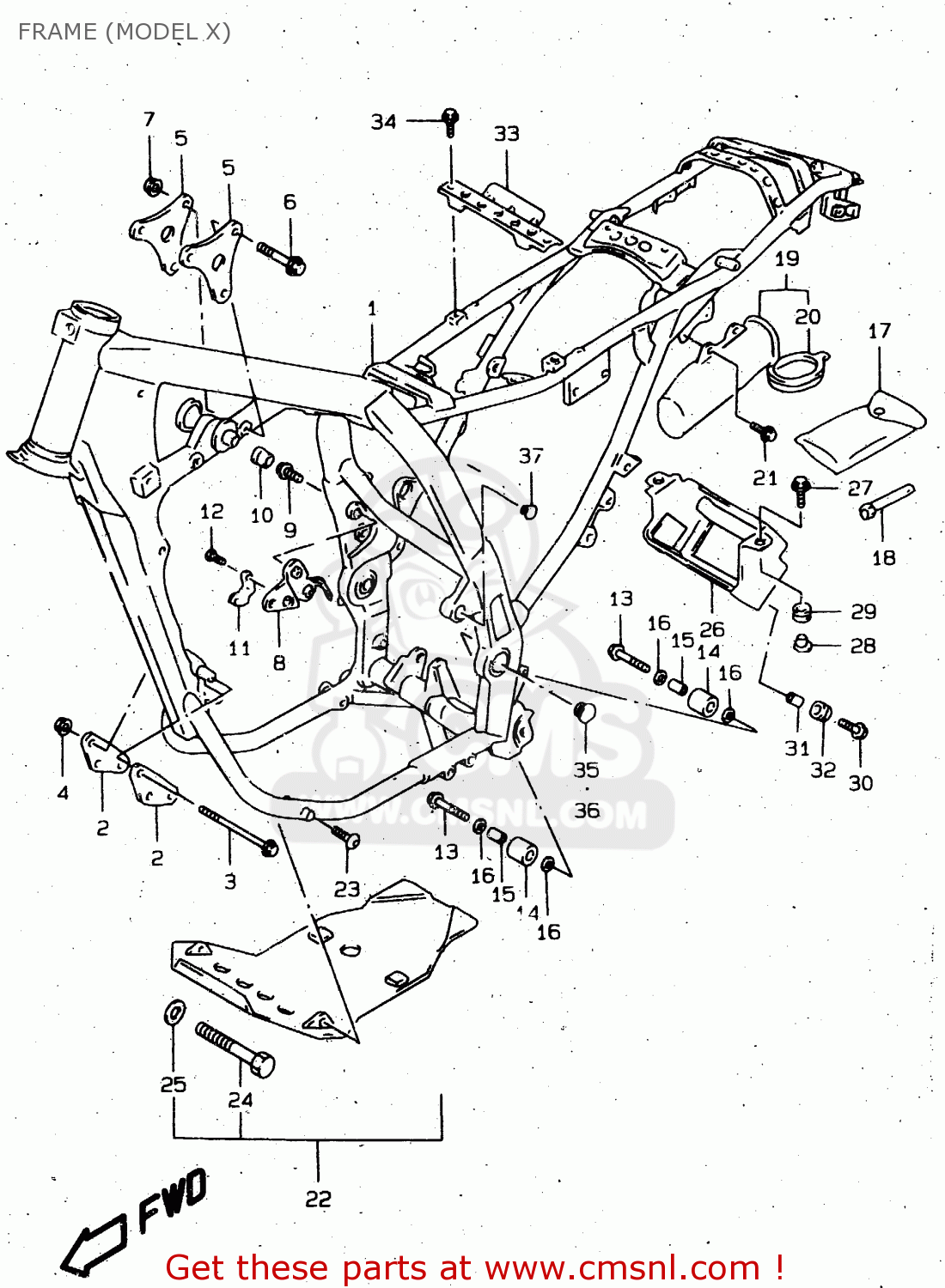

FRAME (MODEL X)

ref

part #

description

quantity

1

4110032E3024K
ref: 1

FRAME(CHARCOAL)

€ 2,021.50

1

4110032E1024K
ref: 1
E18

FRAME(CHARCOAL)

€ 0.00

2

4191132E00
ref: 2

PLATE,ENG MTG FR

€ 16.00

3

0910308139
ref: 3

BOLT(8X100)

€ 5.50

4

0831931083
ref: 4

NUT

€ 2.50

5

4199132E00
ref: 5

PLATE,ENG MTG UPR

€ 21.50

6

0910308170
ref: 6

BOLT

€ 3.50

7

0831931083
ref: 7

NUT

€ 2.50

8

4193032E00019
ref: 8

PLATE,ENG MTG RR,R

€ 17.00

9

0155008203
ref: 9

BOLT

€ 3.00

10

0925020012
ref: 10

PLUG(OD:22)

€ 5.50

11

4325132E00
ref: 11

BRACKET,STOP SWITCH

€ 8.00

12

0216206163
ref: 12

SCREW

€ 2.50

13

0910308178
ref: 13

BOLT(8X38)

€ 5.00

14

4391113E00
ref: 14

ROLLER,CHAIN CONTROL UPR

€ 10.00

15

0918008119
ref: 15

SPACER(8.6X12X25.5)

€ 6.50

16

0821108201
ref: 16

WASHER

€ 2.00

17

0980021034
ref: 17

TOOL ASSY

€ 55.00

18

0981600100
ref: 18

SPARK PLUG WRENCH(16)

€ 7.50

19

4155032E00
ref: 19

HOLDER,TOOL

€ 31.50

20

4155237210
ref: 20

CAP,HOLDER

€ 5.00

21

0911606006
ref: 21

BOLT(6X16)

€ 2.00

22

4250032810
ref: 22
OPT

Skid Plate

€ 279.50

23

0910608098
ref: 23
OPT

BOLT(8X14)

€ 6.50

24

0910310154
ref: 24
OPT

BOLT(10X245)

€ 16.00

25

0916010091
ref: 25
OPT

WASHER(10X24X2)

€ 5.50

26

4154032E00
ref: 26

HOLDER,BATTERY

€ 50.50

27

0911606167
ref: 27

BOLT(6X20)

€ 2.00

28

0916906065
ref: 28

WASHER

€ 3.50

29

0932008021
ref: 29

CUSHION

€ 4.00

30

0911606168
ref: 30

BOLT(6X16)

€ 2.50

31

0918006038
ref: 31

SPACER(6.1X9X7.5)

€ 2.00

32

0932008021
ref: 32

CUSHION

€ 4.00

33

4156132E00
ref: 33

PLATE,BATTERY FITING

€ 9.50

34

0155006103
ref: 34

BOLT

€ 2.50

35

4358532E00
ref: 35

PLUG,FRAME PIVOR,R

€ 3.00

36

4359532E00
ref: 36

PLUG,FRAME PIVOR,L

€ 3.00

37

4358632E00
ref: 37

PLUG,FRAME BOSS

€ 2.50
