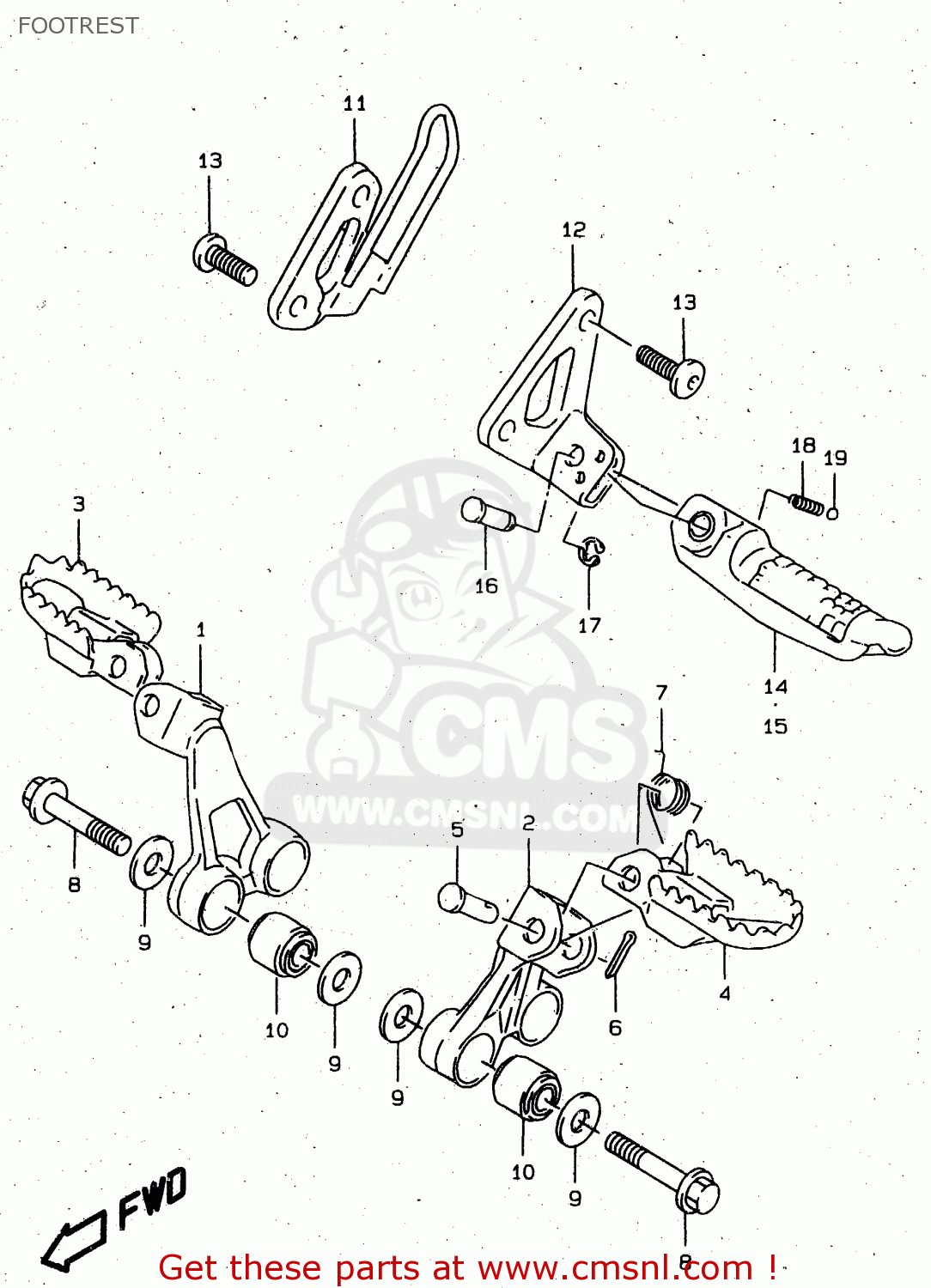

FOOTREST

ref

part #

description

quantity

1

4351032E00
ref: 1

BRACKET,FR FOOTREST,R

€ 49.50

2

4352032E00
ref: 2

BRACKET,FR FOOTREST,L

€ 49.50

3

4355014D10019
ref: 3
MODEL T/V

FOOTREST COMP,FRONT,RIGHT

€ 69.00

3

4355014D30
ref: 3
MODEL W/X

FOOTREST,FRONT,RIGHT

€ 17.50

4

4356014D10019
ref: 4
MODEL T/V

FOOTREST COMP,FRONT,LEFT

€ 122.00

4

4356014D30
ref: 4
MODEL W/X

FOOTREST,FRONT,LEFT

€ 17.50

5

0920010013
ref: 5

PIN

€ 2.50

6

0411120208
ref: 6

PIN 20X20

€ 1.50

7

0944815004
ref: 7

SPRING

€ 2.50

8

0910310232
ref: 8

BOLT(10X50)

€ 4.50

9

0916010059
ref: 9
MODEL T/V

WASHER

€ 2.50

9

0916010124
ref: 9
MODEL W/X

WASHER(10.1X23X2.3)

€ 2.50

10

0931910033
ref: 10

BUSH(10.2X25X19)

€ 6.50

11

4365032E00019
ref: 11

BRACKET,PILLION FOOT,R(BLACK)

€ 38.00

12

4375032E00019
ref: 12

BRACKET,PILLION FOOT,L(BLACK)

€ 32.00

13

0910608118
ref: 13

BOLT 8X20

€ 4.00

14

4361023E00
ref: 14

BAR,PILLION FOOTREST,R

€ 33.00

15

4371023E00
ref: 15

BAR,PILLION FOOTREST,L

€ 33.00

16

0920808011
ref: 16

PIN

€ 3.00

17

0833211063
ref: 17

E.RING

€ 2.00

18

0944005005
ref: 18

SPRING

€ 1.50

19

0611107004
ref: 19

BALL

€ 1.50
