RIGHT HANDLE LEVER
DR650SEU 2000 (Y)

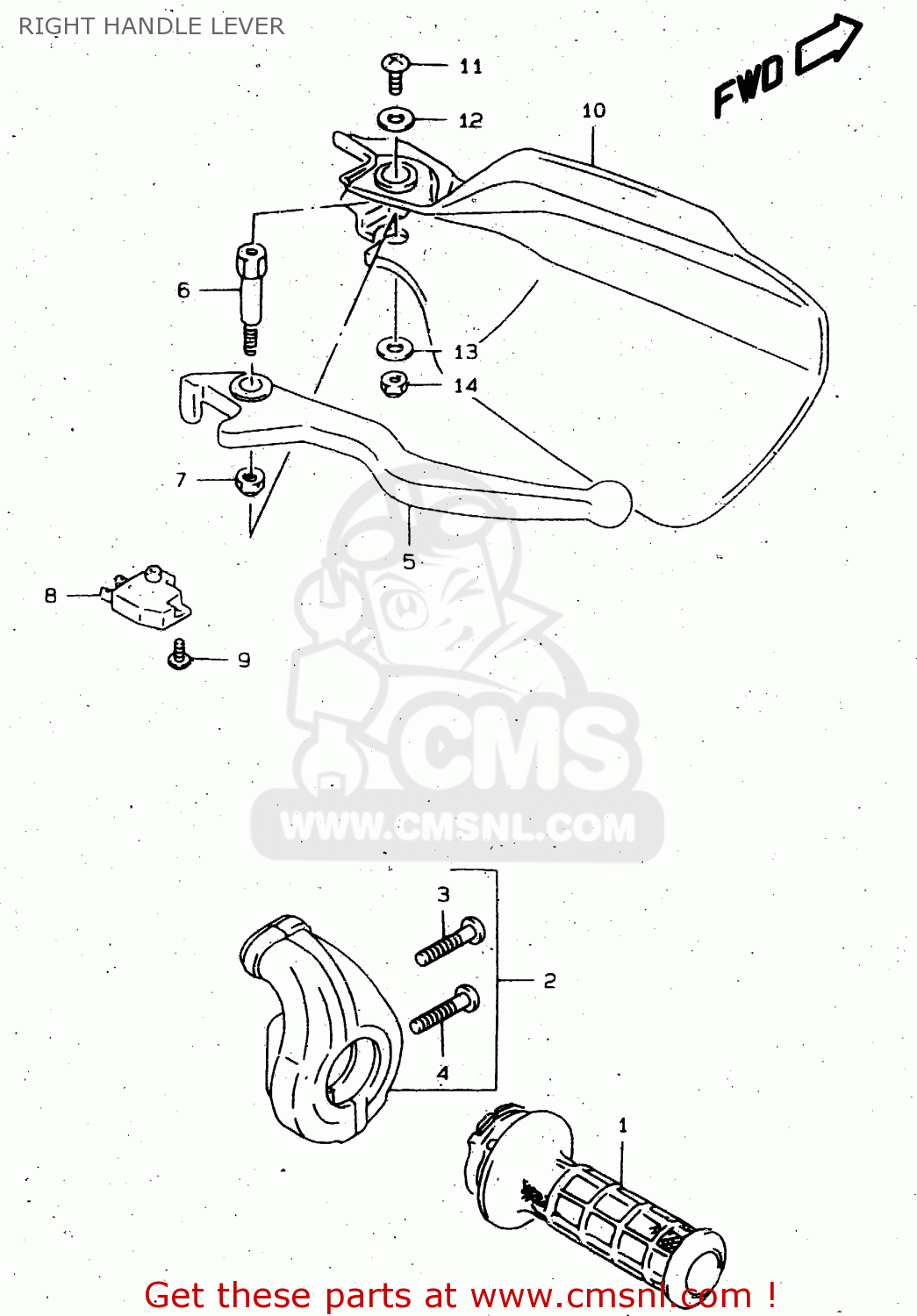

Right handle lever diagram DR650SEU 2000 (Y)
RIGHT HANDLE LEVER DR650SEU 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
5711012D11
ref: 1
GRIP,THROTTLE
€ 25.50
2
5710014D00
ref: 2
CASE ASSY,THROTTLE
€ 24.00
3
0912505066
ref: 3
SCREW(5X25)
€ 2.00
4
0211205203
ref: 4
SCREW
€ 2.50
5
5742113001
ref: 5
LEVER,BRAKE
€ 18.00
6
5743105D00
ref: 6
BOLT,BRAKE LEVER PIVOT
€ 9.00
7
0831921063
ref: 7
MODEL T/V/W
NUT
€ 2.50
7
5743309F00
ref: 7
MODEL X
NUT,LEVER PIVOT
€ 2.50
8
5746017C00
ref: 8
SWITCH ASSEMBLY,STOP
€ 32.50
9
5746517C00
ref: 9
SCREW
€ 1.50
10
5734105D00Z16
ref: 10
FOR E3D
COVER,KNUCKLE,R
€ 31.50
10
5734105D00019
ref: 10
FOR 019, L9W
COVER,KNUCKLE,RIGHT
€ 21.00
11
0214205103
ref: 11
SCREW
€ 2.50
12
0916005017
ref: 12
MODEL T/V
WASHER (5.5X16X1.2)
€ 2.50
12
0916005043
ref: 12
MODEL W/X
WASHER(5.5X16X1.2)
€ 2.50
13
0916006042
ref: 13
MODEL T/V
WASHER (6.5X17X1.6)
€ 2.00
13
0916006130
ref: 13
MODEL W/X
WASHER(6.5X16X1.6)
€ 2.00
14
0831921068
ref: 14
NUT 6MM
€ 2.00
