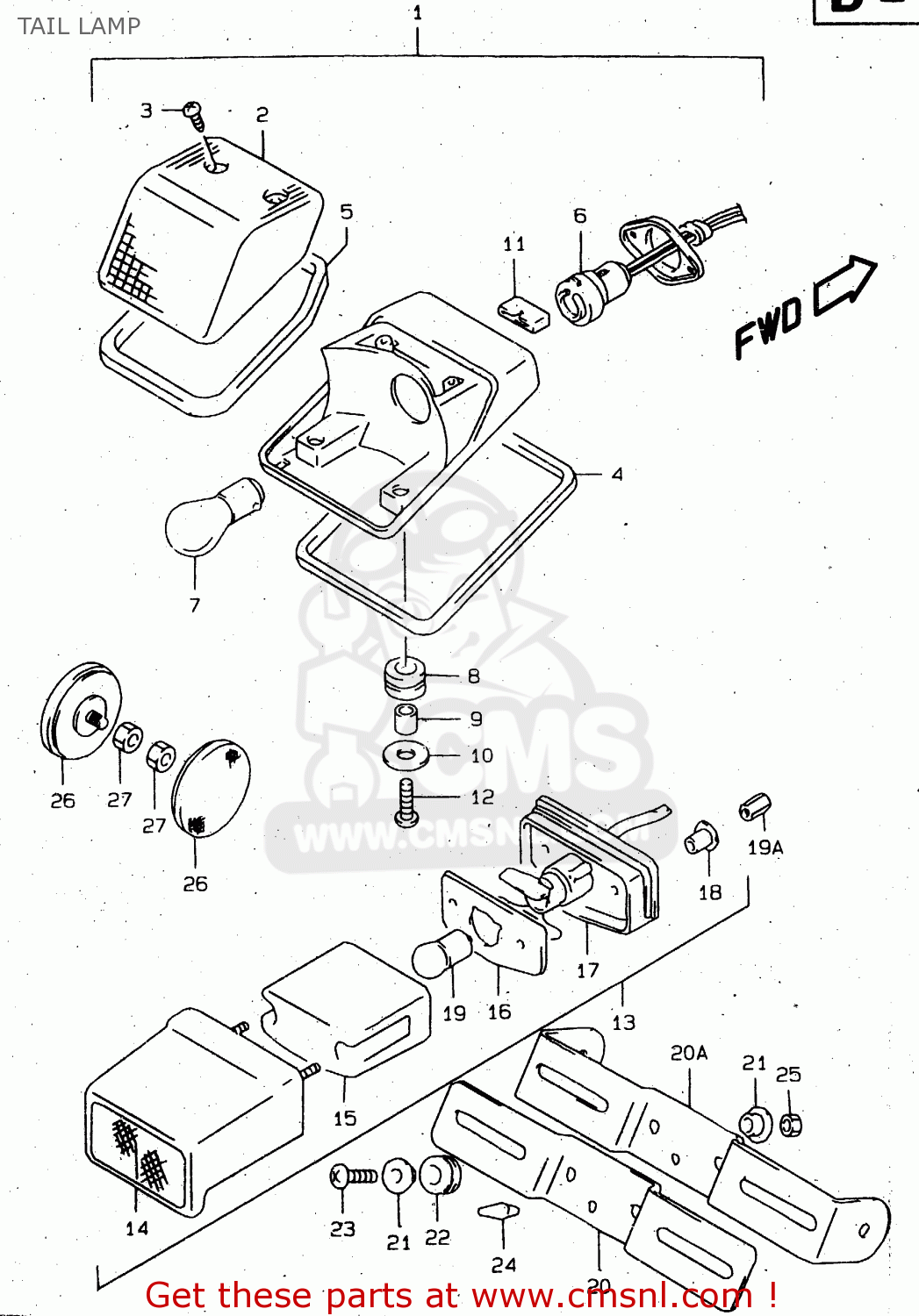

TAIL LAMP

ref

part #

description

quantity

1

3571032E00
ref: 1

LAMP ASSY,REAR

€ 77.00

2

3571213E00
ref: 2

LENS

€ 14.00

3

0321104123
ref: 3

SCREW

€ 1.50

4

3571313E00
ref: 4

GASKET

€ 4.00

5

3571332E00
ref: 5

GASKET

€ 4.50

6

3571832E00
ref: 6

SOCKET & CORD

€ 22.00

7

0947112083
ref: 7

BULB(12V21/5W)

€ 6.00

8

0932009016
ref: 8

CUSHION

€ 2.50

9

0918006267
ref: 9
<-09180-06228

SPACER(6.5X9X12.5)

€ 3.00

10

0916006088
ref: 10

WASHER(6.5X20X1.6)

€ 2.00

11

0932902002
ref: 11

CUSHION

€ 1.50

12

0211206203
ref: 12

SCREW, 6X20

€ 2.00

13

3591032E00
ref: 13

LAMP ASSY,LICENSE

€ 132.00

14

3591717C10
ref: 14

COVER,LENS

€ 72.00

15

3591238A20
ref: 15

LENS

€ 13.00

16

3591338A30
ref: 16

GASKET,LICENSE LAMP (NAS)

€ 2.00

17

3576124B31
ref: 17

CUSHION

€ 9.00

18

3576624B30
ref: 18

SPACER

€ 2.00

19

0947112140
ref: 19

BULB(12V5W,BF150-40160A)

€ 4.00

19A

0914004006
ref: 19A

NUT

€ 4.00

20

3592700A10
ref: 20

BRACKET,LICENSE PLATE

€ 6.00

20A

3592732E00
ref: 20A
E18

BRACKET,LICENSE PLATE

€ 10.50

21

0916906073
ref: 21

WASHER

€ 4.00

22

0932009016
ref: 22

CUSHION

€ 2.50

23

0214206253
ref: 23

SCREW

€ 1.50

24

0932106030
ref: 24

CUSHION

€ 3.00

25

0831000063
ref: 25

NUT 6MM

€ 2.00

26

3595014A10
ref: 26
E18

REFLECTOR,REFLEX

€ 11.00

27

0831000053
ref: 27
E18

NUT

€ 2.50

all assemblies
