STARTER CLUTCH

DR650SEU 2000 (Y)

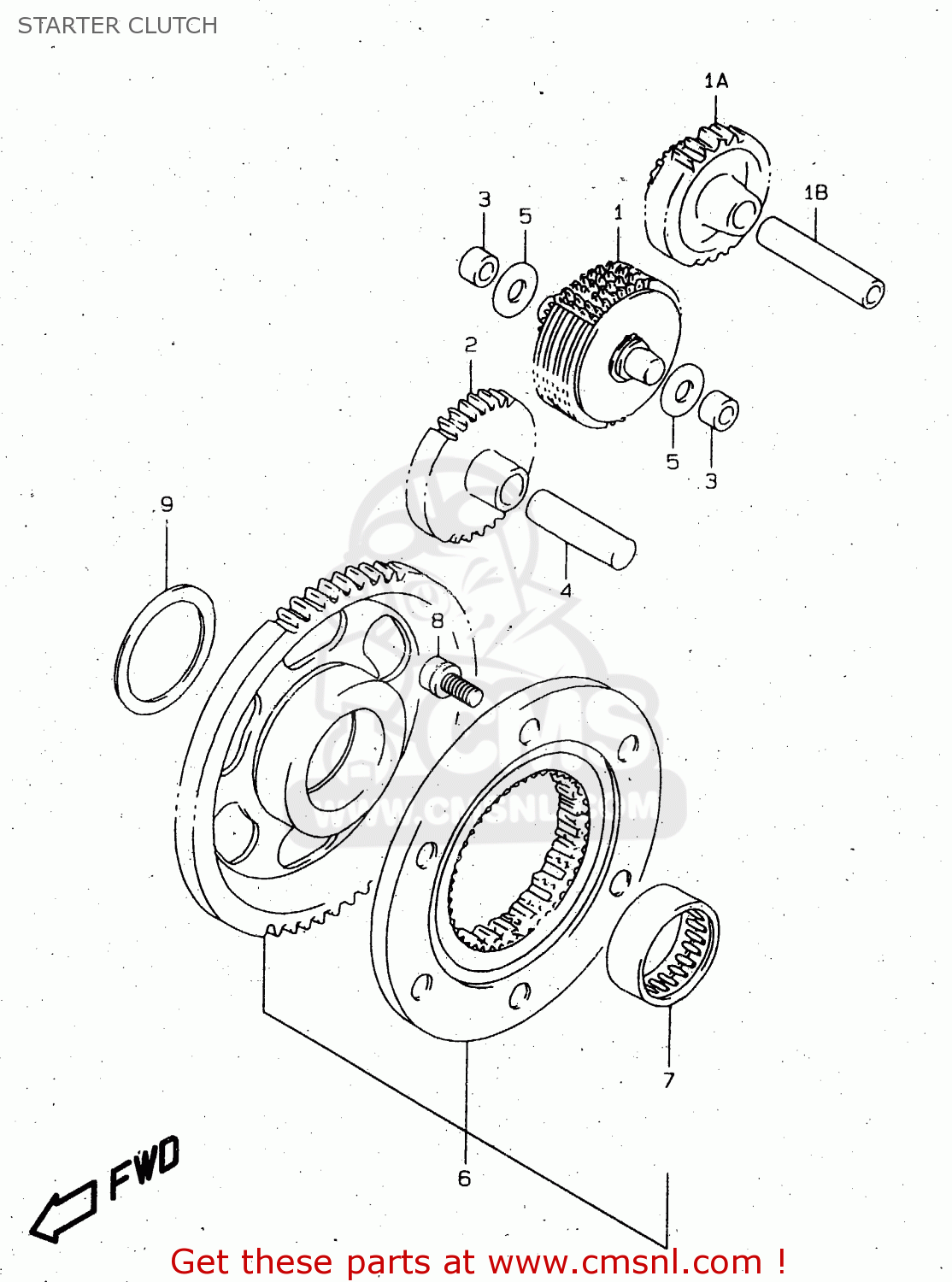

Starter clutch diagram DR650SEU 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1260012D00
ref: 1
MODEL T/V

LIMITER ASSEMBLY,STARTER IDLER GEAR

€ 122.50

1261132E00
ref: 1A
MODEL W/X

GEAR,STARTER IDLE NO.1

€ 58.50

0920612005
ref: 1B
MODEL W/X

PIN(8X12X59)

€ 7.50

1261212D01
ref: 2

GEAR,STARTER IDLE NO.2(NT:27)

€ 40.50

1261831D01
ref: 3
MODEL T/V

BUSH,LIMITER GEAR SHAFT

€ 17.50

0920212002
ref: 4

PIN

€ 7.50

0821110221
ref: 5
MODEL T/V

WASHER

€ 2.50

1260009860
ref: 6
<-12600-12810

CLUTCH SET,STARTER

€ 210.00

0926331009
ref: 7

BEARING(31X39X17.8)

€ 25.50

0713008203
ref: 8

BOLT

€ 3.00

0821140521
ref: 9
MODEL T

SHIM

€ 5.50

0918140195
ref: 9
MODEL V

SHIM(40X52X1)

€ 5.50
