BALANCER CHAIN
DR800SU 1991 (M) GERMANY (E22)

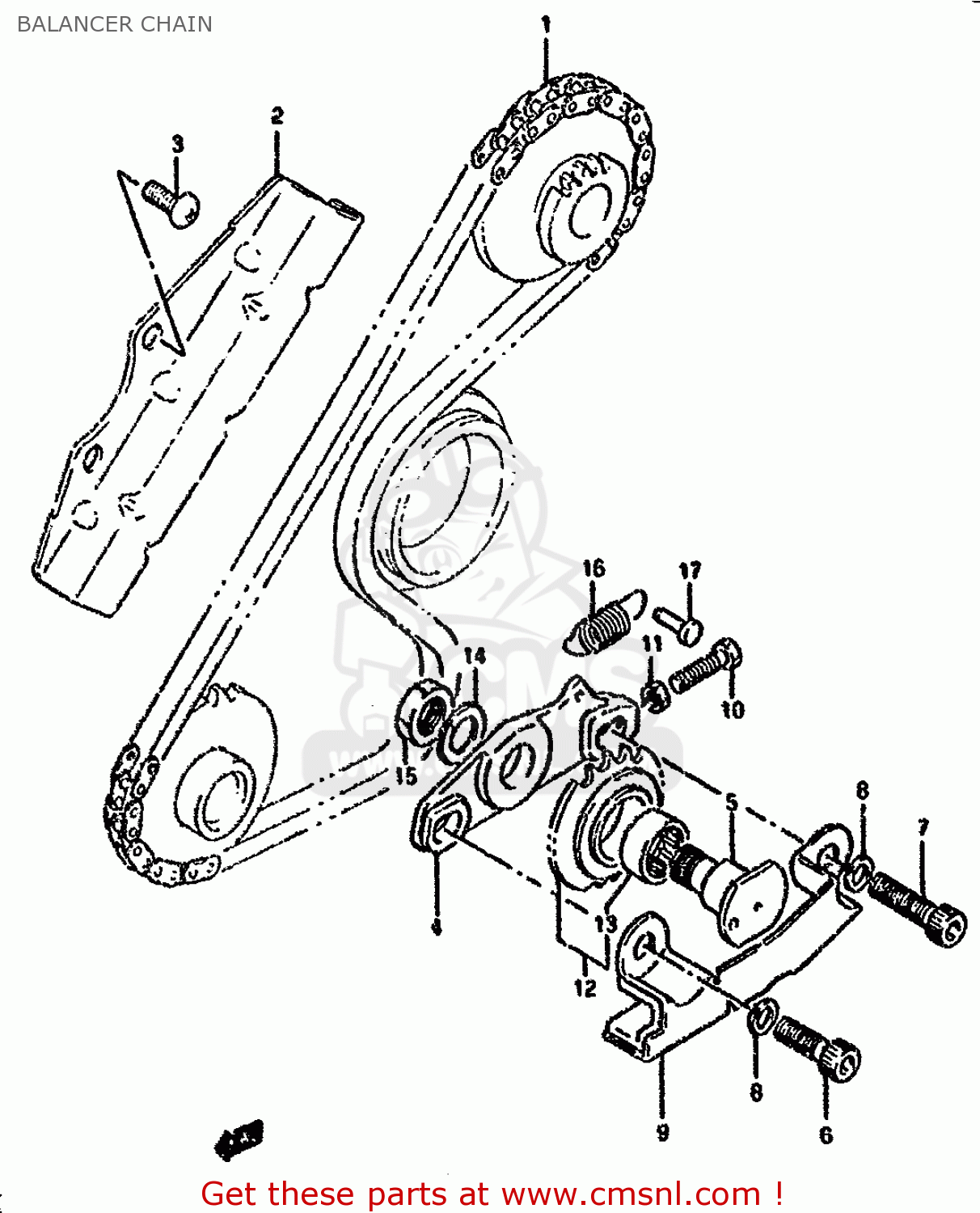

Balancer chain diagram DR800SU 1991 (M) GERMANY (E22)
BALANCER CHAIN DR800SU 1991 (M) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1267031D00
ref: 1
CHAIN,BALANCER
€ 82.00
2
1269544B00
ref: 2
GUIDE,BALANCER CHAIN
€ 30.50
3
0211206123
ref: 3
SCREW
€ 1.50
4
1268144B00
ref: 4
BRACKET, CHAIN TENSIONER
€ 51.00
5
1268214A01
ref: 5
SHAFT,BALANCER CHAIN TENSIONER
€ 29.00
6
0910608005
ref: 6
BOLT(8X22)
€ 2.00
7
0713008303
ref: 7
BOLT
€ 3.00
8-1
0832101087
ref: 8-1
MODEL M/N/P
WASHER,LOCK
€ 2.00
8-2
0832101083
ref: 8-2
MODEL R/S/T
LOCK WASHER
€ 2.50
9
1269631D00
ref: 9
GUIDE, CHAIN TENSIONER
€ 25.50
10-1
0910005006
ref: 10-1
MODEL M/N/P
BOLT 5X20
€ 1.50
10-2
0150005163
ref: 10-2
MODEL R/S/T
BOLT
€ 1.50
11
0914005006
ref: 11
NUT
€ 2.00
12
1268544B00
ref: 12
SPRKT,BALANCER CHAIN TENSIONER
€ 75.00
13
0926317007
ref: 13
BEARING(17X23X12)
€ 13.00
14
0916212006
ref: 14
WASHER,LOCK
€ 2.50
15
0914012021
ref: 15
NUT
€ 2.50
16
0944310040
ref: 16
SPRING
€ 2.50
17
0922304001
ref: 17
INCLUDED CRANKCASE S
RIVET
€ 1.50
