STEERING STEM
DR800SU 1991 (M) GERMANY (E22)

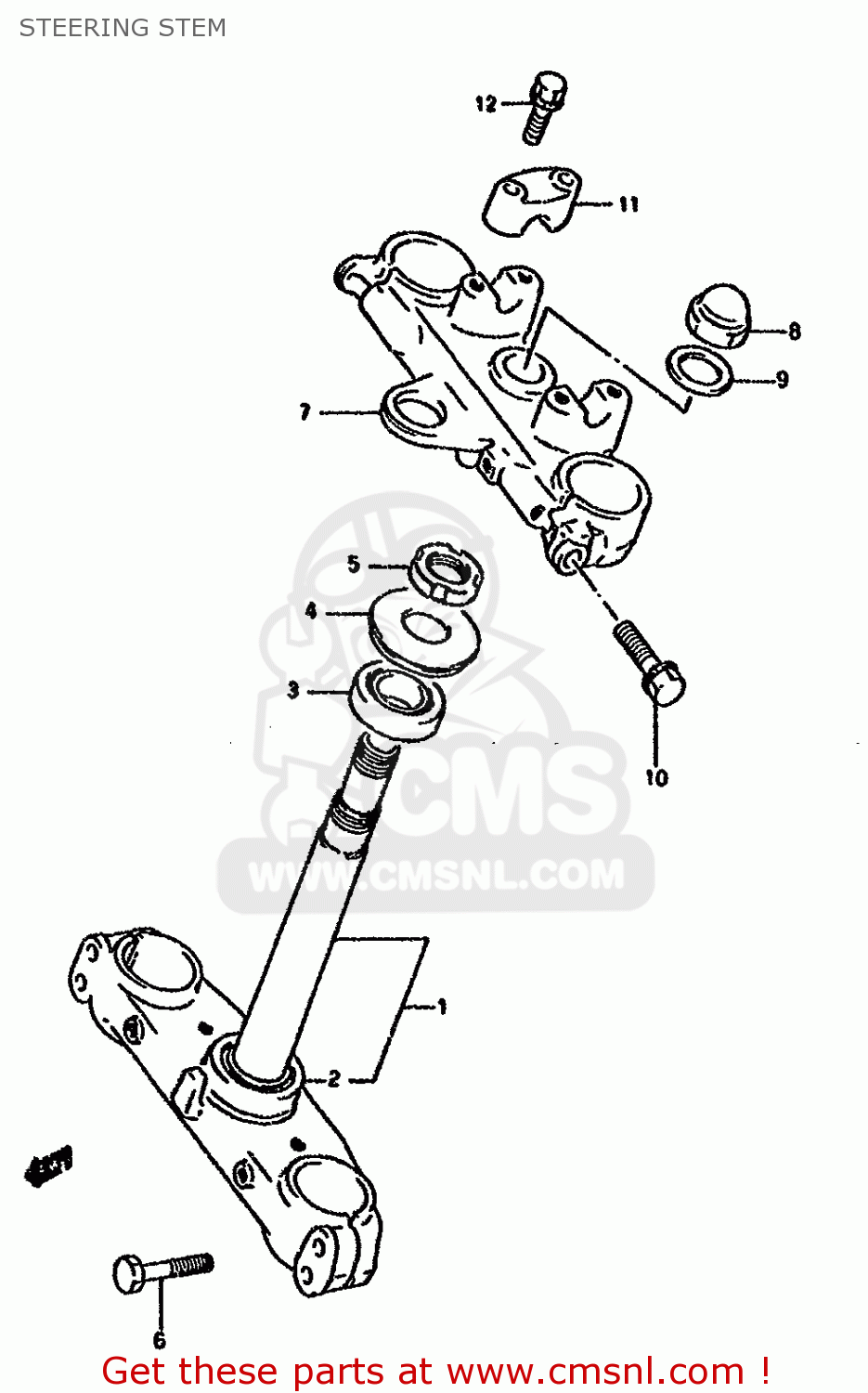

Steering stem diagram DR800SU 1991 (M) GERMANY (E22)
STEERING STEM DR800SU 1991 (M) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
5141031D00
ref: 1
STEM,STEERING
€ 379.50
2
0926530009
ref: 2
BEARING(30X55X17)
€ 49.50
3
0926525008
ref: 3
TAPER,ROLLER BEARING
€ 48.50
4
5164340200
ref: 4
SEAL,STEERING UPR DUST
€ 7.50
5
5163140200
ref: 5
NUT,STEERING STEM
€ 12.00
6
5132831D00
ref: 6
BOLT,STEM(8X50)
€ 4.00
7
5131031D00
ref: 7
HEAD,STEERING STEM
€ 184.00
8-1
5135344B00
ref: 8-1
MODEL M/N/P
NUT
€ 21.50
8-2
5135324B00
ref: 8-2
MODEL R/S/T
NUT,CAP
€ 21.50
9-1
5135627A00
ref: 9-1
MODEL M/N/P
WASHER,STEERING STEM
€ 3.00
9-2
5135624B01
ref: 9-2
MODEL R/S/T
WASHER(22.5X32X1.6)
€ 3.00
10-1
0114410455
ref: 10-1
MODEL M/N/P/R
BOLT,UPPER BRACKET
€ 3.00
10-2
0157010453
ref: 10-2
MODEL S/T
BOLT, UPPER BRACKET
€ 3.00
11
5621127200291
ref: 11
HOLDER,HANDLE UPR
€ 13.50
12-1
0114708355
ref: 12-1
MODEL M/N/P/R
BOLT
€ 2.00
12-2
0157008353
ref: 12-2
MODEL S/T
BOLT
€ 2.00
