LEFT HANDLE LEVER
DR800SU 1991 (M) GERMANY (E22)

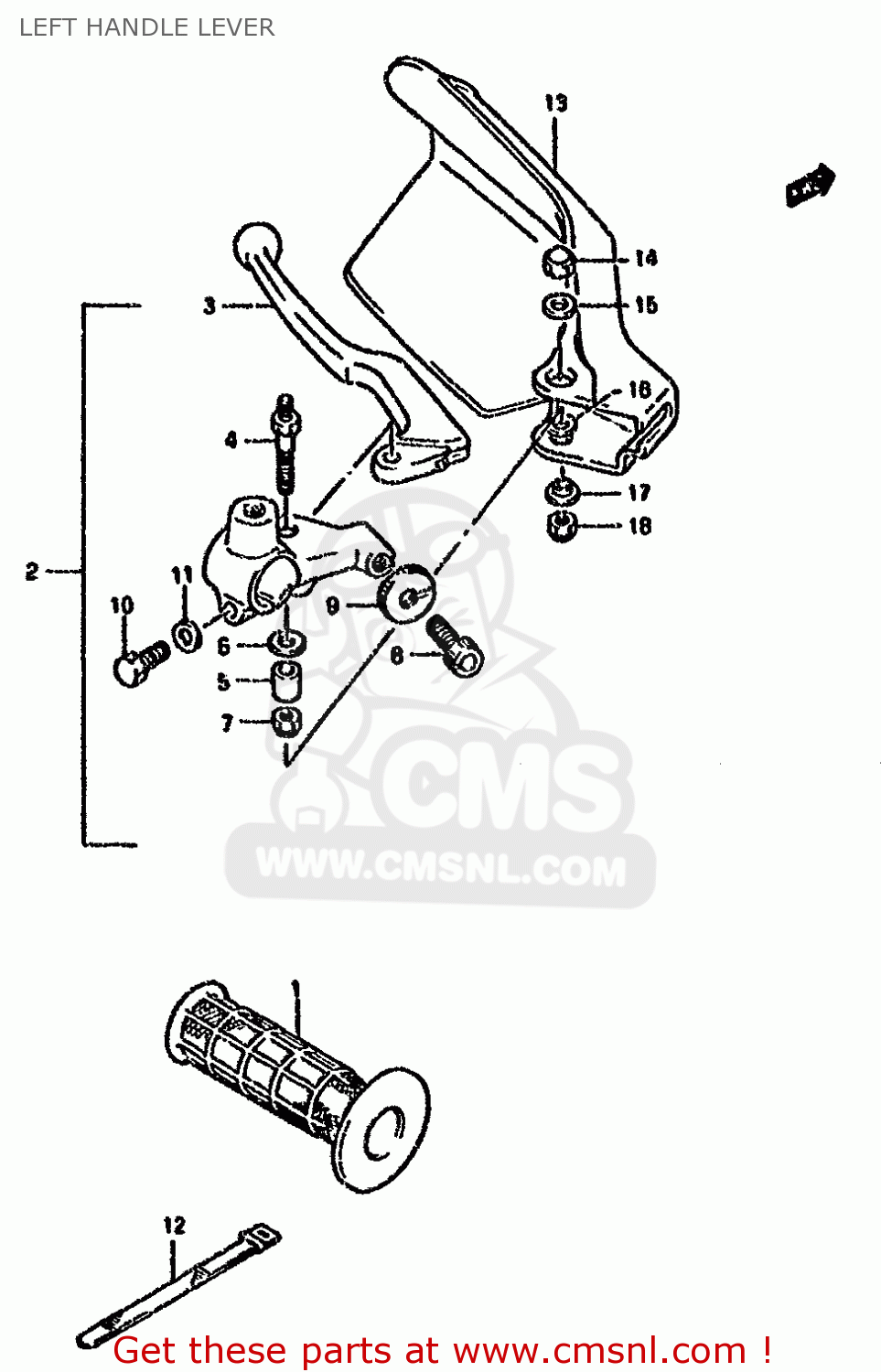

Left handle lever diagram DR800SU 1991 (M) GERMANY (E22)
LEFT HANDLE LEVER DR800SU 1991 (M) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
5721112D00
ref: 1
GRIP,L
€ 14.50
2
5750044B01
ref: 2
LEVER ASSY,CLUTCH
€ 51.50
3
5762049111
ref: 3
LEVER,CLUTCH
€ 34.00
4
5753144B00
ref: 4
BOLT,LEVER SET
€ 6.50
5
5753244B00
ref: 5
SPACER,LEVER SET
€ 3.50
6
5753344B00
ref: 6
WASHER,LEVER SET
€ 2.50
7
0831921065
ref: 7
NUT
€ 2.50
8
5744144400
ref: 8
ADJUSTER,CABLE
€ 5.50
9
5744244B00
ref: 9
NUT,LOCK
€ 11.50
10
0120406204
ref: 10
BOLT
€ 2.00
11
0832221064
ref: 11
WASHER
€ 2.00
12
0940712402
ref: 12
CLAMP(L:120)
€ 3.00
13-1
5754131D0012F
ref: 13-1
MODEL M/N
COVER,KNUCKLE LH (BLUE)
€ 65.00
13-2
5754131D0022P
ref: 13-2
MODEL M
COVER,KNUCKLE,L
€ 62.50
13-3
5754131D001MW
ref: 13-3
MODEL N
COVER,KNUCKLE
€ 72.50
13-4
5754131D001AY
ref: 13-4
MODEL P FOR 12F
COVER,KNUCKLE LH (BLUE)
€ 27.00
13-5
5754131D0021C
ref: 13-5
MODEL P/R/S FOR 33J
COVER,KNUCKLE,L
€ 21.50
13-6
5754131D000NF
ref: 13-6
MODEL R/S FOR 1LE
COVER,KNUCKLE,LEFT
€ 25.50
13-7
5754131D00019
ref: 13-7
MODEL T
COVER,KNUCKLE,LEFT
€ 21.50
14-1
0831311065
ref: 14-1
MODEL M/N/P
NUT 6MM
€ 2.00
14-2
0831310067
ref: 14-2
MODEL R/S/T
NUT
€ 2.00
15-1
0916006102
ref: 15-1
MODEL M/N/P/R
WASHER (6.5X20X1.6)
€ 2.00
15-2
0916006088
ref: 15-2
MODEL S/T
WASHER(6.5X20X1.6)
€ 2.00
16
0916006019
ref: 16
WASHER(6.5X16X1.2)
€ 1.50
17
0916906055
ref: 17
WASHER
€ 2.00
18
0831921068
ref: 18
NUT 6MM
€ 2.00
