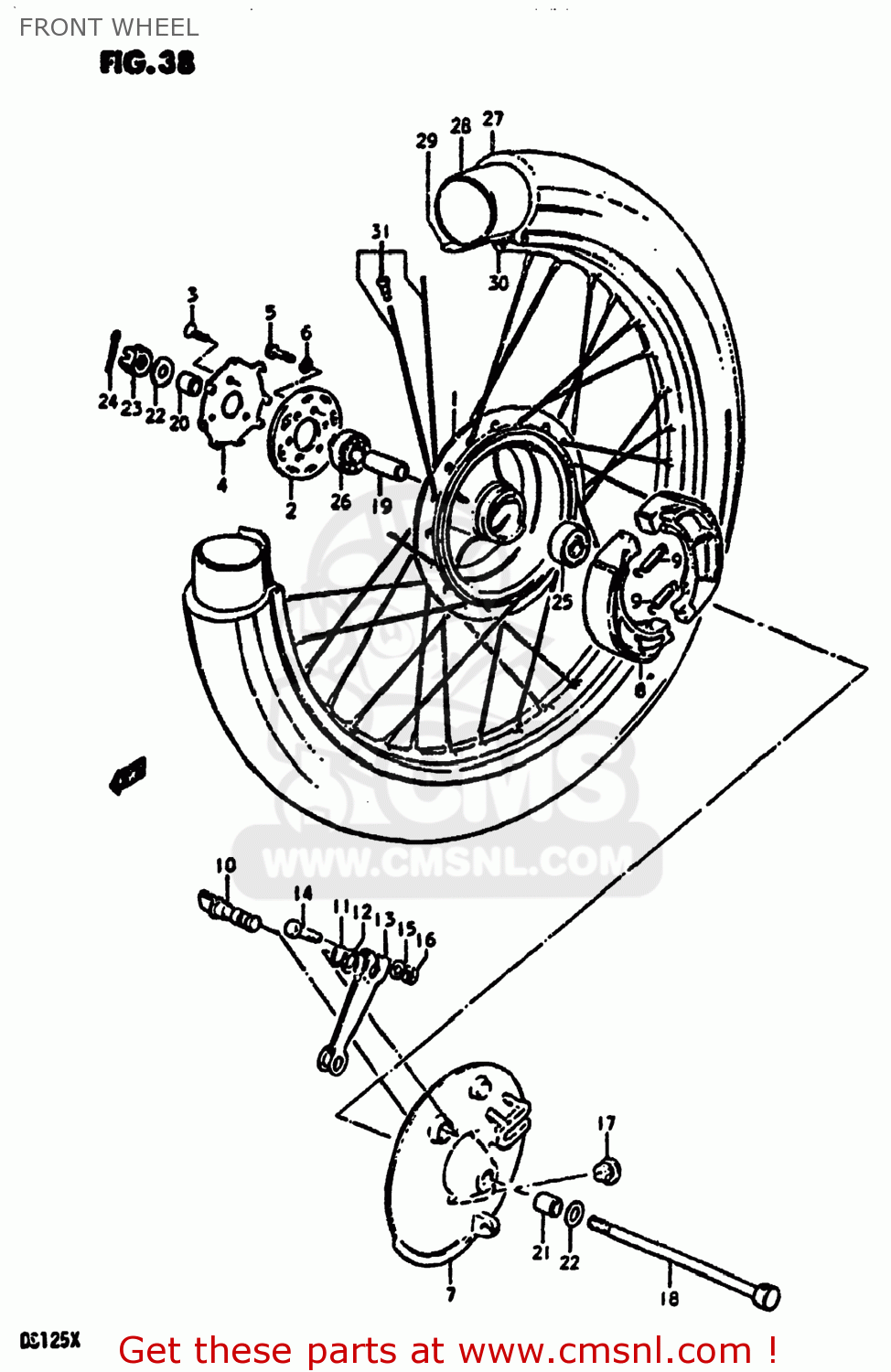

FRONT WHEEL

ref

part #

description

quantity

1

5411029300
ref: 1

HUB,FR WHEEL

€ 156.50

2

5411230500
ref: 2

FLANGE,FR HUB,R

€ 17.00

3

0212206168
ref: 3
02122-06167

SCREW

€ 2.00

4

5415130500
ref: 4

RETAINER,FR HUB BEARING,R

€ 7.00

5

0110706168
ref: 5
01500-06167

BOLT, UPPER

€ 3.00

6

0832121068
ref: 6
08321-01067

LOCK WASHER

€ 2.50

7

5421029300
ref: 7

PANEL,FRONT HUB

€ 0.00

8

5441007002
ref: 8
54401-07810

SHOE,BRAKE

€ 35.00

9

0944307001
ref: 9
09443-07025

SPRING(L:34)

€ 2.50

10-1

5444129301
ref: 10-1
54441-29305

CAM,FRONT BRAKE

€ 13.00

10-2

5444129302
ref: 10-2
54441-29305

CAM,FRONT BRAKE

€ 13.00

11

0928014003
ref: 11
09280-14011

O-RING (D:2.4 ID:13.8)

€ 3.50

12

0916014001
ref: 12
09160-14055

WASHER (14.5X22X1.6)

€ 2.50

13

5445129300
ref: 13

LEVER,FR BRAKE CAM

€ 11.50

14

0910006078
ref: 14

BOLT(6X33)

€ 2.50

15

0832221068
ref: 15
08322-01067

WASHER

€ 2.00

16

0831011068
ref: 16
08310-00067

NUT

€ 2.50

17

0925011003
ref: 17

CAP(OD:17)

€ 2.50

18

6471143000
ref: 18
64711-43001

AXLE,REAR

€ 28.50

19

0918012041
ref: 19
09180-12144

SPACER (12.6X19X52)

€ 4.50

20

0918012076
ref: 20
09180-12141

SPACER (12.2X19X18.5)

€ 5.00

21

0918012063
ref: 21

SPACER(12X20X34.5)

€ 4.50

22

0832211128
ref: 22
08322-01127

WASHER

€ 2.00

23

0831431128
ref: 23
08314-3112A

NUT 12MM

€ 2.00

24

0411130308
ref: 24
04111-3030A

COTTER PIN

€ 1.50

25

0814362017
ref: 25

BEARING

€ 11.50

26

0812362017
ref: 26
08133-62017

BEARING, RH

€ 15.00

27

5510029410
ref: 27
55100-40200

TIRE,FRONT

€ 0.00

28

5520016510
ref: 28

TUBE

€ 32.50

29

5526116510
ref: 29
55261-14540

PROTECTOR,WHEEL,INNER

€ 5.00

30

5531148020
ref: 30

RIM,FR WHEEL(1.60X21)

€ 136.00

31-1

5530029830
ref: 31-1
55320-29300

SPOKE SET,FRONT

€ 37.00

31-2

5532029300
ref: 31-2

SPOKE SET,FR

€ 37.00
