REAR BRAKE (DS125T
DS125 1979 (N) USA (E03)

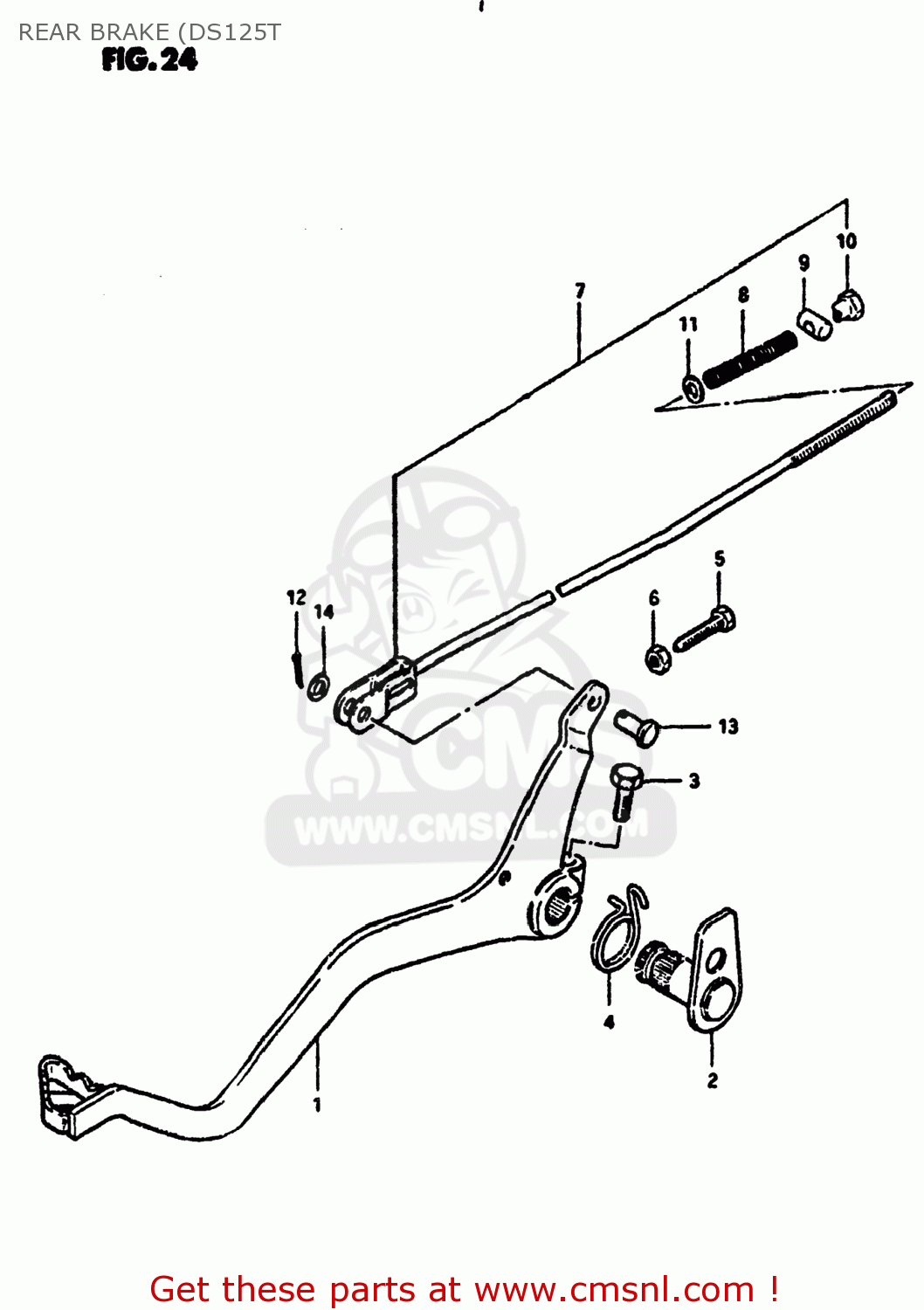

Rear brake (ds125t diagram DS125 1979 (N) USA (E03)
REAR BRAKE (DS125T DS125 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4311048210
ref: 1
PEDAL,BRAKE
€ 36.50
2
4312048210
ref: 2
ARM,BRAKE PEDAL
€ 19.00
3
0110706208
ref: 3
01500-06207
BOLT
€ 2.00
4
0944825001
ref: 4
SPRING
€ 20.50
5
0910006009
ref: 5
BOLT(6X23)
€ 1.50
6
0831011068
ref: 6
08310-00067
NUT
€ 2.50
7
4330048500
ref: 7
ROD ASSY,RR BRAKE
€ 14.50
8
0944009004
ref: 8
SPRING
€ 2.00
9
0920913003
ref: 9
09209-13018
PIN
€ 3.50
10
0915006001
ref: 10
09150-06010
NUT
€ 3.50
11
0832221068
ref: 11
08322-01067
WASHER
€ 2.00
12
0411120208
ref: 12
04111-2020A
PIN 20X20
€ 1.50
13
0920006013
ref: 13
PIN(L:13.5)
€ 2.00
14
0832221068
ref: 14
08322-01067
WASHER
€ 2.00
