MUFFLER (DS125T
DS125 1979 (N) USA (E03)

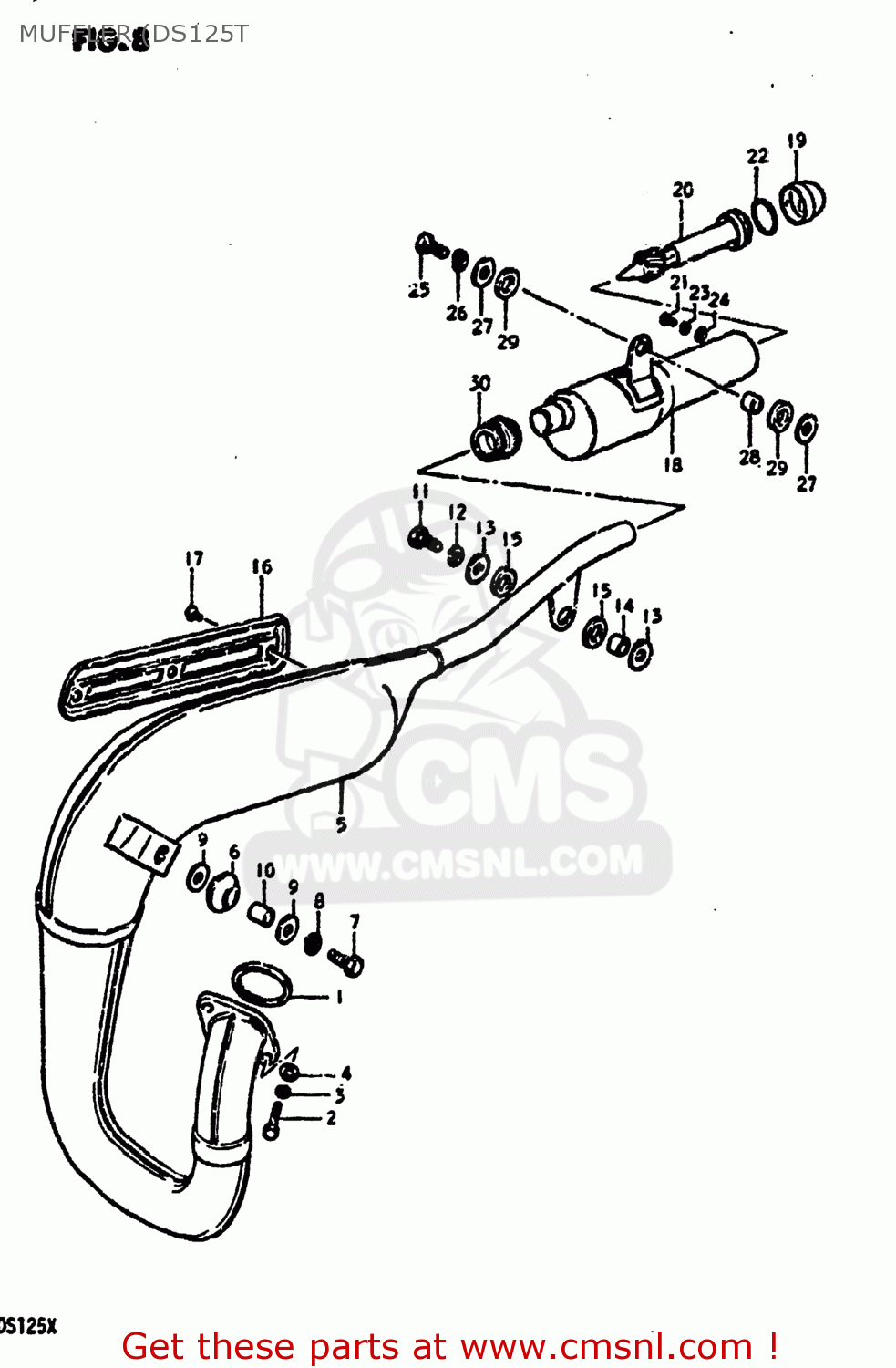

Muffler (ds125t diagram DS125 1979 (N) USA (E03)
MUFFLER (DS125T DS125 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1418111010
ref: 1
14181-01D00
GASKET,EXHAUST PIPE (NAS)
€ 8.00
2
0912806024
ref: 2
09103-06212
SCREW (6X25)
€ 2.50
3
0832121068
ref: 3
08321-01067
LOCK WASHER
€ 2.50
4
0832221068
ref: 4
08322-01067
WASHER
€ 2.00
5
1431048500
ref: 5
14310-48520-H01
BODY,MUFFLER
€ 520.50
6
1477230500
ref: 6
DAMPER,MUFFLER,FR
€ 3.00
7
0110708358
ref: 7
01500-0835B
BOLT
€ 3.50
8
0832121088
ref: 8
08321-01087
LOCK WASHER
€ 2.00
9
0916008007
ref: 9
09160-08127
WASHER (8.7X22X2)
€ 2.00
10
0918008048
ref: 10
09180-08302
SPACER (8X12X15)
€ 3.50
11
0110708258
ref: 11
01500-08257
BOLT
€ 2.50
12
0832121088
ref: 12
08321-01087
LOCK WASHER
€ 2.00
13
0916008005
ref: 13
09160-08134
WASHER
€ 2.50
14
0918008075
ref: 14
09180-08200
SPACER (8.6X13.8X9.8)
€ 3.00
15
0932014006
ref: 15
CUSHION
€ 3.50
16
1478148500
ref: 16
COVER,MUFFLER
€ 17.00
17
0211206088
ref: 17
02112-06087
SCREW
€ 2.00
18
1430348500
ref: 18
14303-48500-H01
MUFFLER ASSEMBLY
€ 54.50
19
1464948510
ref: 19
COVER,SECOND MUFFLER TAIL
€ 8.00
20
1485030510
ref: 20
TUBE,MUFFLER CLEAN OUT
€ 22.50
21
0912806013
ref: 21
SCREW(6X8)
€ 1.50
22
0928055001
ref: 22
O-RING (D:3.5 ID:54.4)
€ 5.50
23
0832121068
ref: 23
08321-01067
LOCK WASHER
€ 2.50
24
0832221068
ref: 24
08322-01067
WASHER
€ 2.00
25
0110708258
ref: 25
01500-08257
BOLT
€ 2.50
26
0832121088
ref: 26
08321-01087
LOCK WASHER
€ 2.00
27
0916008004
ref: 27
09160-08134
WASHER
€ 2.50
28
0918008050
ref: 28
09180-08199
SPACER (8.6X13.8X9)
€ 2.50
29
0932014006
ref: 29
CUSHION
€ 3.50
30
1477148001
ref: 30
14771-48002
CONNECTOR,MUFFLER
€ 8.00
