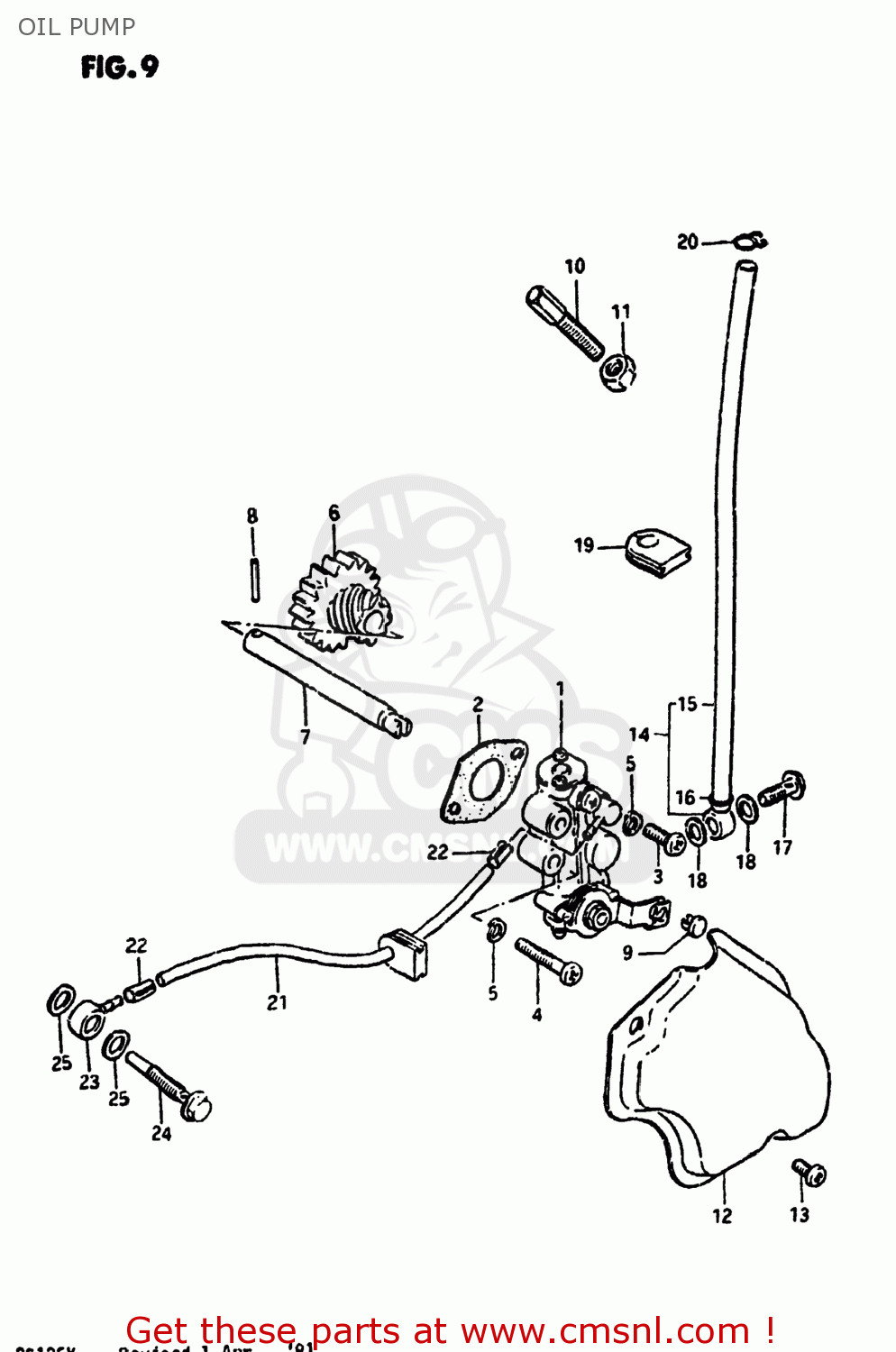

OIL PUMP

ref

part #

description

quantity

1-1

1610048010
ref: 1-1
16100-48020

PUMP ASSEMBLY,OIL

€ 245.50

1-2

1610048020
ref: 1-2

PUMP ASSY,OIL

€ 245.50

2

1673103101
ref: 2

GASKET,OIL PUMP (NAS)

€ 2.50

3

0211205168
ref: 3
02112-05167

SCREW

€ 2.50

4

0211205308
ref: 4
02112-0530A

SCREW

€ 1.50

5

0832121058
ref: 5
08321-0105A

LOCK WASHER

€ 2.00

6

1632148030
ref: 6

GEAR,OIL PUMP DRIVE

€ 14.50

7

1632248000
ref: 7

SHAFT,OIL PUMP DRIVE

€ 10.00

8

0926102001
ref: 8

PIN(2.5X19.8)

€ 1.50

9

1629203111
ref: 9
16292-03112

TERMINAL,CABLE

€ 3.50

10

0911908014
ref: 10

BOLT

€ 3.50

11

0831012088
ref: 11
08310-00087

NUT

€ 2.00

12

1138548000
ref: 12

CAP,OIL PUMP INSPECTION

€ 11.50

13

0211206108
ref: 13
02112-06107

SCREW

€ 1.50

14

1681030500
ref: 14
16810-07520

HOSE,OIL NO.1

€ 17.50

15

0934304025
ref: 15
09355-45855-600

HOSE

€ 14.00

16

0940108401
ref: 16

CLIP

€ 1.50

17

0936006003
ref: 17

UNION BOLT

€ 5.00

18

0916806004
ref: 18

GASKET(6.2X11X1).2 (NAS)

€ 1.50

19

0930908002
ref: 19

GROMMET

€ 3.00

20

0940108401
ref: 20

CLIP

€ 1.50

21

1682048001
ref: 21
16820-39100

HOSE,OIL NO.2

€ 6.00

22

0940104401
ref: 22

CLIP

€ 2.50

23

0936302001
ref: 23
09363-02002

UNION

€ 8.00

24

0936006009
ref: 24

UNION

€ 7.00

25

0916806004
ref: 25

GASKET(6.2X11X1).2 (NAS)

€ 1.50

all assemblies
