FRAME COVER (MODEL Z)

GN125 1992 (N)

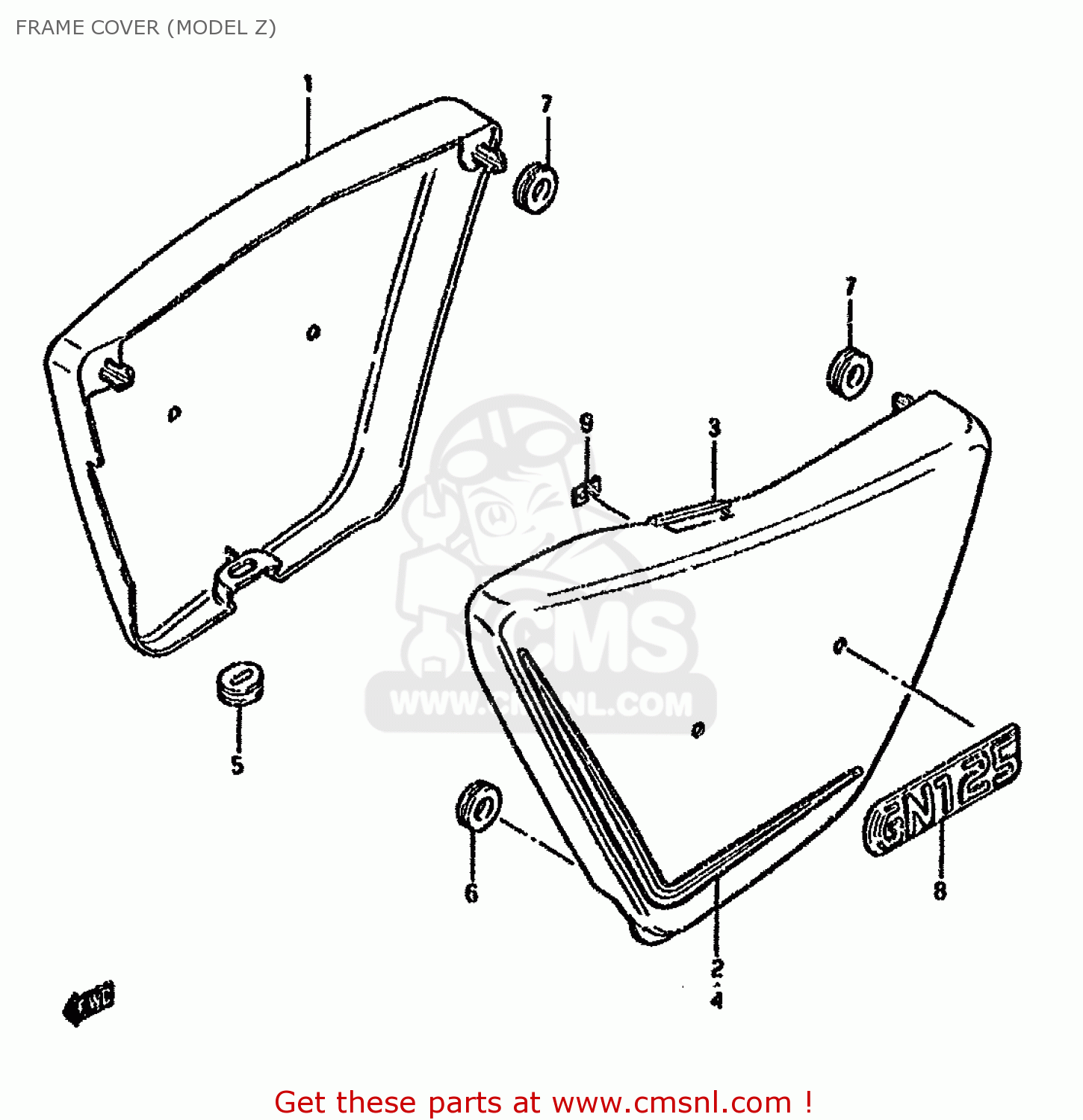

Frame cover (model z) diagram GN125 1992 (N)

FRAME COVER (MODEL Z) GN125 1992 (N)

FRAME COVER (MODEL Z) GN125 1992 (N)

prices are in EUR

ref

part #

description

quantity

1-1

4711105300019
ref: 1-1

COVER,FRAME,RIGHT

€ 39.00

1-2

471110530004Y
ref: 1-2

COVER,FRAME RH (BLUE)

€ 39.00

1-3

471110530000J
ref: 1-3

COVER,FRAME RH (RED)

€ 39.00

2

6813605300764
ref: 2

TAPE,FRAME COVER

€ 9.00

3-1

4721105300019
ref: 3-1

COVER,FRAME,LEFT

€ 53.50

3-2

472110530004Y
ref: 3-2

COVER,FRAME LH (BLUE)

€ 53.50

3-3

472110530000J
ref: 3-3

COVER,FRAME LH (RED)

€ 53.50

4

6814605300764
ref: 4

TAPE,FRAME COVER

€ 9.00

5

0932003004
ref: 5

CUSHION

€ 2.00

6

0932008018
ref: 6

CUSHION

€ 4.00

7

0932008018
ref: 7

CUSHION

€ 4.00

8

6813105310
ref: 8

EMBLEM,FRAME COVER

€ 20.00

9

0914803002
ref: 9

NUT

€ 3.00
