REAR SWINGING ARM
GN125 1992 (N)

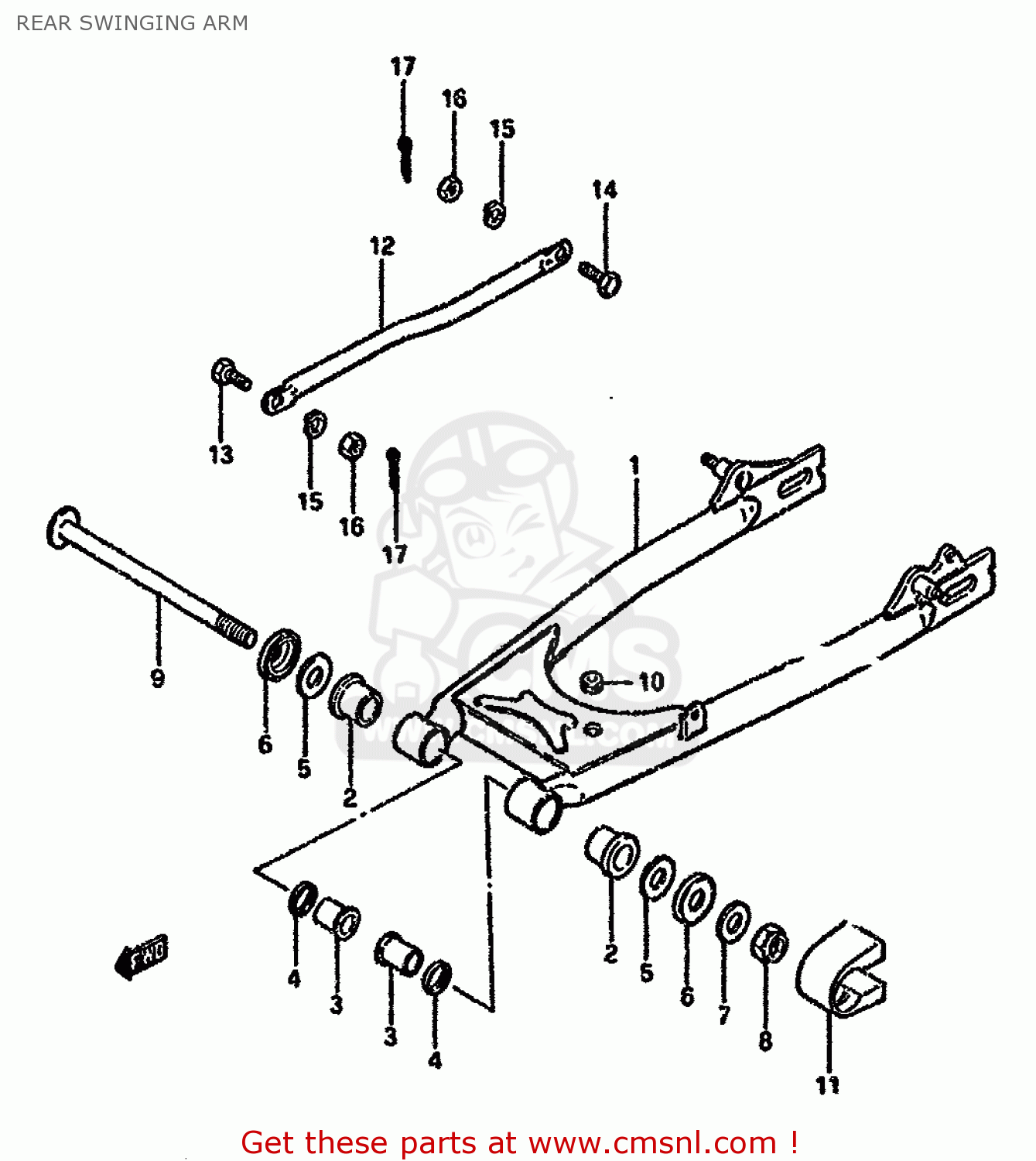

Rear swinging arm diagram GN125 1992 (N)
REAR SWINGING ARM GN125 1992 (N)
×
prices are in EUR
ref
part #
description
quantity
1
6100005300019
ref: 1
SWINGINGARM ASSY,RR
€ 123.50
2
6126105301
ref: 2
BUSH,RR SWINGING ARM PIVOT
€ 9.50
3
6125105300
ref: 3
SPACER,RR SWGARM PIVOT
€ 10.00
4
0928620001
ref: 4
SEAL,OIL(20X27X5)
€ 2.50
5
0821114341
ref: 5
WASHER
€ 3.00
6
6126245002
ref: 6
CVR,RR SWGARM DUST SEAL(OD:40)
€ 4.50
7-1
0832211148
ref: 7-1
MODEL Z/D/K/M/N
WASHER
€ 2.00
7-2
0832201143
ref: 7-2
MODEL R
WASHER
€ 2.00
8
0831921148
ref: 8
NUT 14MM
€ 3.00
9
6121105302
ref: 9
-61211-05301
SHAFT,RR SWINGINGARM PIVOT
€ 12.00
10
0932008020
ref: 10
CUSHION
€ 3.00
11
6127305300
ref: 11
BUFFER,CHAIN TOUCH DEFENSE
€ 27.50
12
6431005300019
ref: 12
LINK,RR TORQUE
€ 12.50
13
0911108012
ref: 13
BOLT(8X22.5)
€ 3.00
14
0911108013
ref: 14
BOLT(8X26.5)
€ 3.00
15-1
0832121088
ref: 15-1
MODEL Z/D/K/M/N
LOCK WASHER
€ 2.00
15-2
0916208008
ref: 15-2
MODEL R
WASHER,LOCK
€ 2.00
16
0914008008
ref: 16
NUT
€ 1.50
17
0411120208
ref: 17
PIN 20X20
€ 1.50
