REAR COMBINATION LAMP (E2,E4,E21,E34)
GN125 1992 (N)

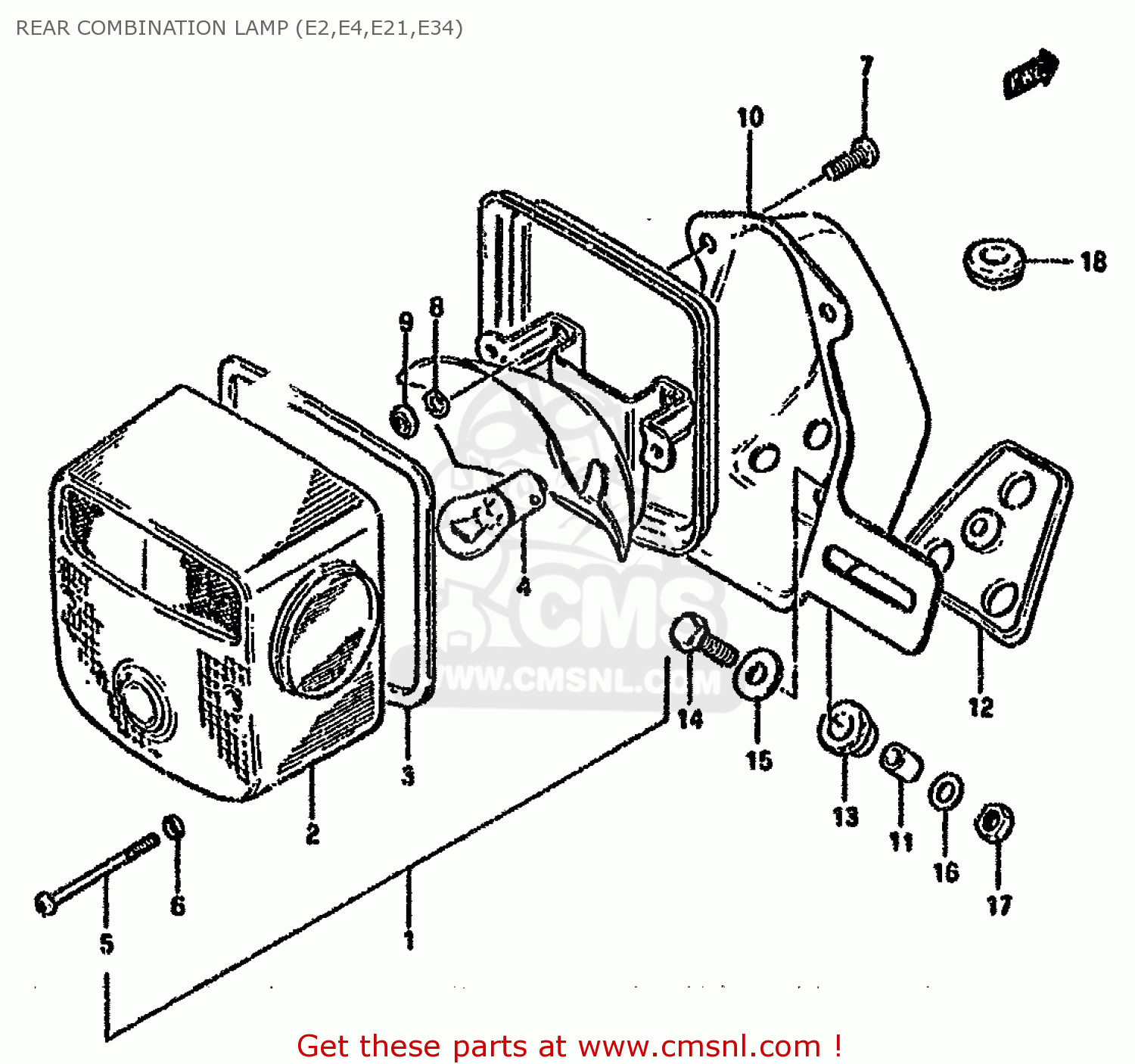

Rear combination lamp (e2,e4,e21,e34) diagram GN125 1992 (N)
REAR COMBINATION LAMP (E2,E4,E21,E34) GN125 1992 (N)
×
prices are in EUR
ref
part #
description
quantity
1-1
3572038320
ref: 1-1
REFLEX REFLECTOR:RR3
LAMP UNIT,TAIL
€ 138.00
1-2
3572038321
ref: 1-2
REFLEX REFLECTOR:RR0
LAMP UNIT,TAIL
€ 138.00
1-3
3572038350
ref: 1-3
MODEL M/R
LAMP UNIT,RR COMBNATION
€ 138.00
2-1
3571248623
ref: 2-1
RR35950
LENS
€ 66.00
2-2
3571211323
ref: 2-2
RR016
LENS
€ 66.00
2-3
3571238350
ref: 2-3
MODEL M/R
LENS
€ 66.00
3
3571330510
ref: 3
GASKET (NAS)
€ 6.00
4-1
0947112057
ref: 4-1
MODEL Z/D/K
BULB 12V21/5W
€ 6.00
4-2
0947112046
ref: 4-2
MODEL M/R
BULB(12V21/5W)
€ 1.50
5
0912504002
ref: 5
SCREW (4X55)
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0211206128
ref: 7
SCREW 6X12
€ 2.00
8
0832121067
ref: 8
WASHER,LOCK
€ 2.50
9
0831011067
ref: 9
NUT 6MM
€ 2.50
10
3573038310
ref: 10
BRACKET UNIT,TAIL LAMP
€ 57.50
11
3576626470
ref: 11
SPACER
€ 2.00
12
3576526470
ref: 12
CUSHION
€ 10.00
13
3576426470
ref: 13
CUSHION
€ 2.50
14-1
0110706257
ref: 14-1
MODEL Z/D/K
BOLT
€ 2.00
14-2
0911606011
ref: 14-2
MODEL M/R
BOLT 6X20
€ 2.00
15
0916006027
ref: 15
WASHER (6.5X20X1.2)
€ 2.00
16
0832221067
ref: 16
WASHER
€ 2.00
17
0831011067
ref: 17
NUT 6MM
€ 2.50
18
0930809004
ref: 18
GROMMET
€ 0.00
