REAR COMBINATION LAMP
GN125 1992 (N)

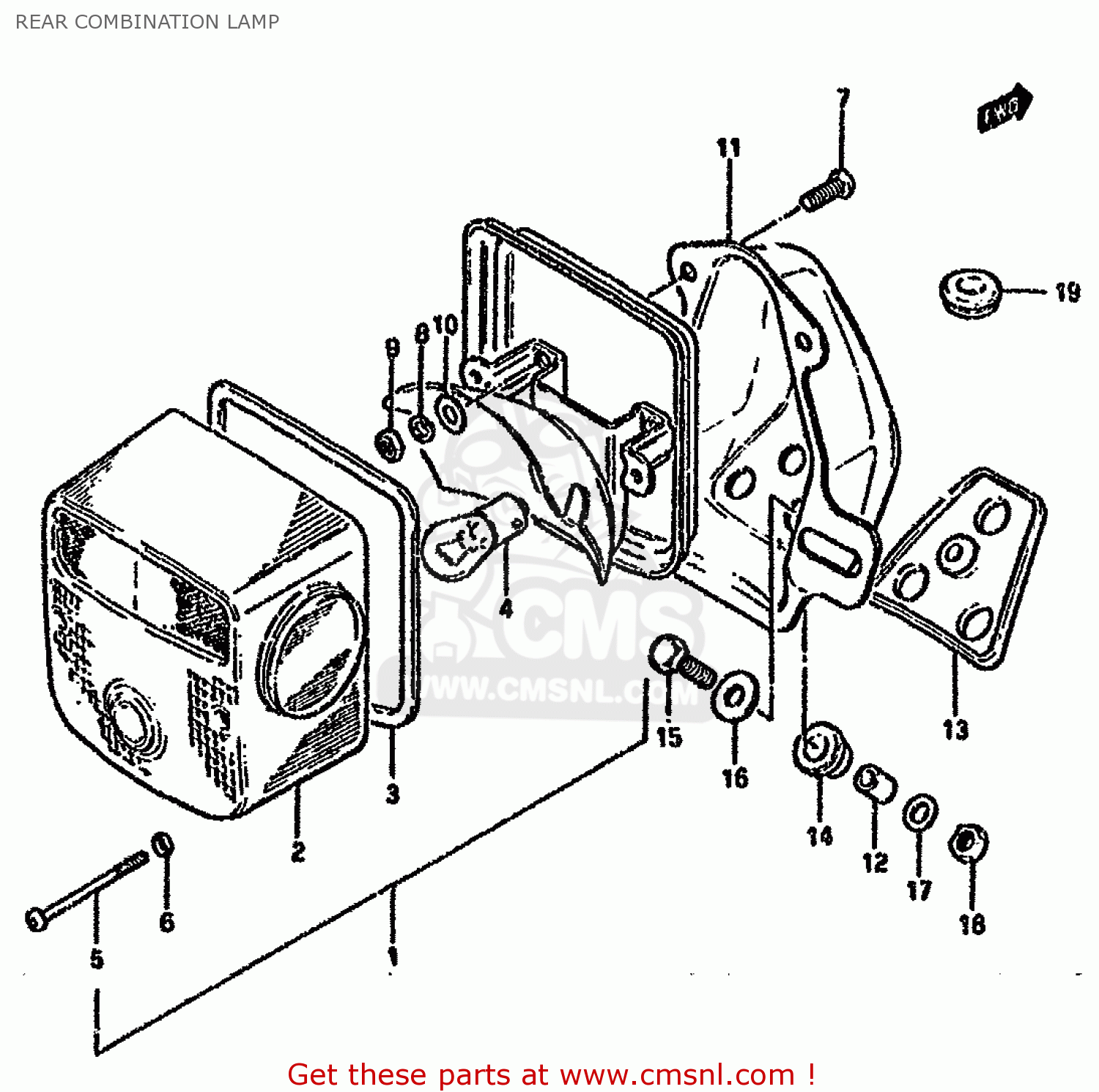

Rear combination lamp diagram GN125 1992 (N)
REAR COMBINATION LAMP GN125 1992 (N)
×
prices are in EUR
ref
part #
description
quantity
1-1
3572005310
ref: 1-1
MODEL Z/D/K/M
LAMP UNIT,TAIL
€ 115.50
1-2
3572005311
ref: 1-2
MODEL R
LAMP UNIT,TAIL
€ 115.50
2-1
3571248623
ref: 2-1
MODEL Z/D/K/M
LENS
€ 66.00
2-2
3571248624
ref: 2-2
MODEL R
LENS,RR COMBIN
€ 66.00
3
3571330510
ref: 3
GASKET (NAS)
€ 6.00
4
0947112035
ref: 4
BULB(12V23W)
€ 5.50
5
0912504002
ref: 5
SCREW (4X55)
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0211205128
ref: 7
SCREW
€ 2.50
8
0832121057
ref: 8
LOCK WASHER
€ 2.00
9
0831011057
ref: 9
NUT 5MM
€ 2.50
10
0832221057
ref: 10
WASHER
€ 2.50
11
3573026470
ref: 11
BRACKET UNIT,TAIL LAMP
€ 91.00
12
3576626470
ref: 12
SPACER
€ 2.00
13
3576526470
ref: 13
CUSHION
€ 10.00
14
3576426470
ref: 14
CUSHION
€ 2.50
15-1
0110706257
ref: 15-1
MODEL Z/D
BOLT
€ 2.00
15-2
0110706207
ref: 15-2
MODEL K
BOLT
€ 2.00
15-3
0911606011
ref: 15-3
MODEL M/R
BOLT 6X20
€ 2.00
16
0916006027
ref: 16
WASHER (6.5X20X1.2)
€ 2.00
17
0832221066
ref: 17
WASHER, LOWER
€ 2.00
18
0831012066
ref: 18
NUT
€ 2.00
19
0930809004
ref: 19
GROMMET
€ 0.00
