CRANKSHAFT

GN125 1994 (R) (E01 E02 E04 E21 E34)

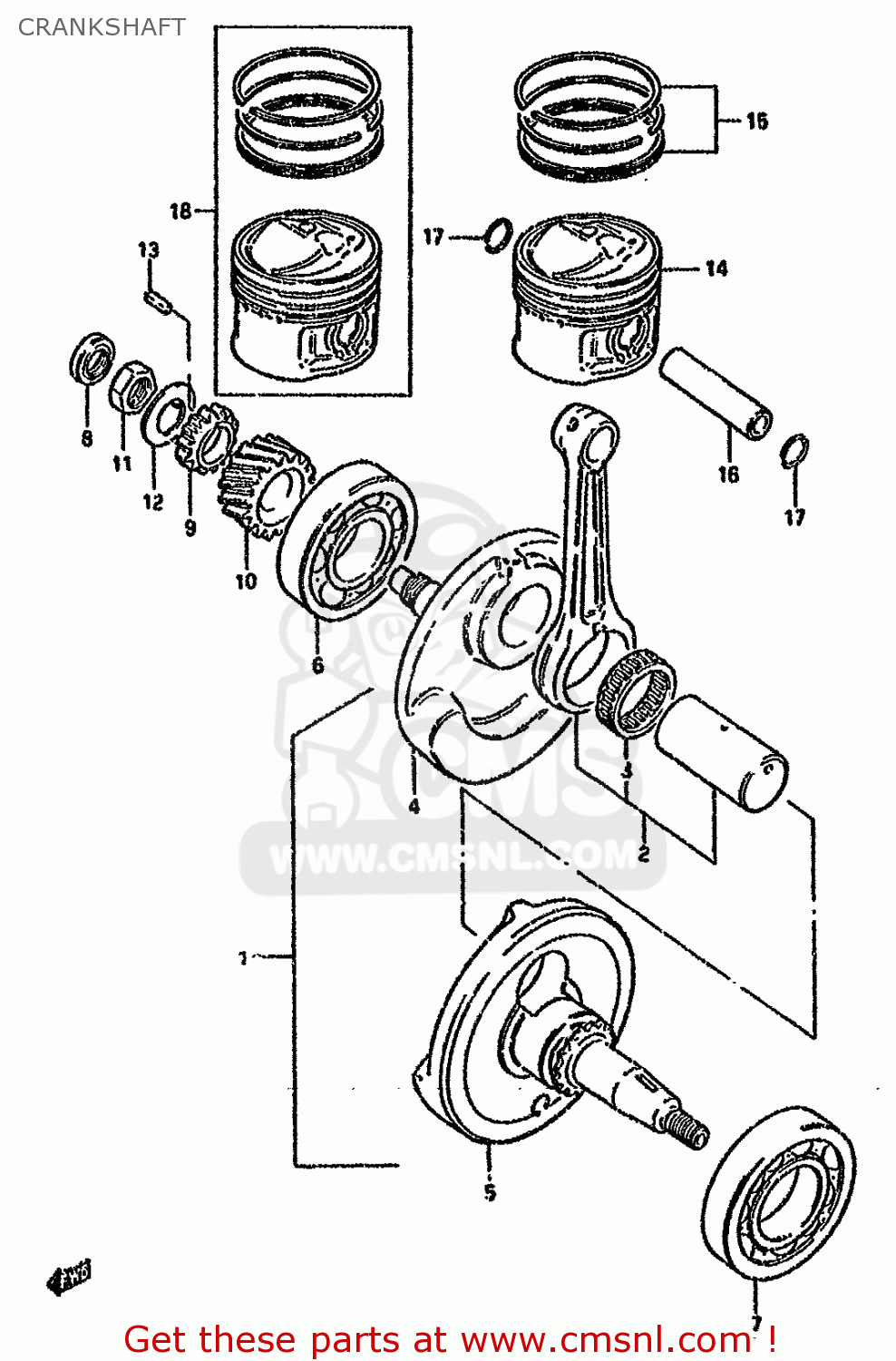

Crankshaft diagram GN125 1994 (R) (E01 E02 E04 E21 E34)

CRANKSHAFT GN125 1994 (R) (E01 E02 E04 E21 E34)
CRANKSHAFT GN125 1994 (R) (E01 E02 E04 E21 E34)
CRANKSHAFT GN125 1994 (R) (E01 E02 E04 E21 E34)
prices are in EUR
ref
part #
description
quantity
1
1220005323
ref: 1
CRANKSHAFT ASSEMBLY
€ 424.00
2
1210505821
ref: 2
CONNECTING ROD SET
1210505821
€ 163.00
3-1
09263280220B0
ref: 3-1
MODEL Z/D/K/M/N
BEARING
09263280220B0
€ 24.50
3-2
09263280270B0
ref: 3-2
MODEL R
BEARING(28X36X15.8)
09263280270B0
€ 24.50
4
1222105202
ref: 4
-12221-05201
CRANKSHAFT,RIGHT
€ 150.50
5
1226105301
ref: 5
CRANKSHAFT,L
€ 162.50
6
0926228014
ref: 6
BEARING(28X68X18)
0926228014
€ 40.00
7
0926235038
ref: 7
BEARING(35X72X17)
0926235038
€ 38.00
8
0928212009
ref: 8
-09282-12001
SEAL,OIL(12X21X7)
0928212009
€ 9.00
9
1632105201
ref: 9
GEAR,OIL PUMP DRIVE
€ 18.00
10
2111105200
ref: 10
GEAR,PRIMARY DRIVE
€ 33.00
11
0914016019
ref: 11
NUT
0914016019
€ 4.00
12
0916616012
ref: 12
WASHER
0916616012
€ 1.50
13
0942104004
ref: 13
KEY
0942104004
€ 3.50
14
1211105202
ref: 14
PISTON (STD)
1211105202
€ 39.50
15
1214001410
ref: 15
RING SET,PISTON
1214001410
€ 37.50
16
1215105220
ref: 16
PIN,PISTON
1215105220
€ 6.50
17
0938114001
ref: 17
RING,SNAP 14MM
0938114001
€ 1.50
18-1
1210005200050
ref: 18-1
OPT
PISTON SET(OS:0.5)
1210005200050
€ 70.00
18-2
1210005200100
ref: 18-2
OPT
PISTON SET (OS:1.0)
1210005200100
€ 77.00
