REAR BRAKE
GN125 1994 (R) (E01 E02 E04 E21 E34)

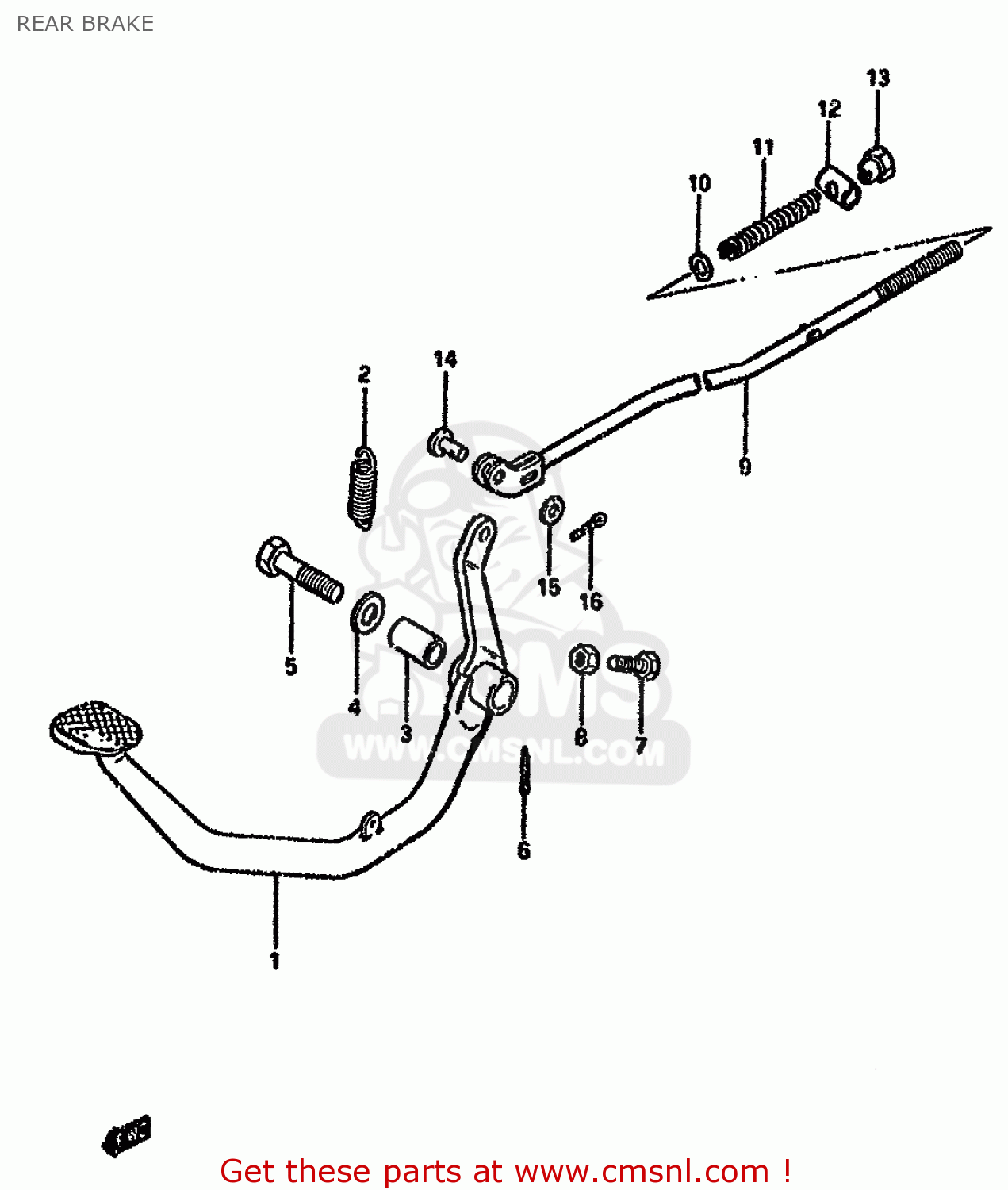

Rear brake diagram GN125 1994 (R) (E01 E02 E04 E21 E34)
REAR BRAKE GN125 1994 (R) (E01 E02 E04 E21 E34)
×
prices are in EUR
ref
part #
description
quantity
1-1
4311005300
ref: 1-1
MODEL Z/D/K
PEDAL,BRAKE
€ 37.00
1-2
4311005301
ref: 1-2
MODEL M/N/R
PEDAL,BRAKE
€ 37.00
2
0944314015
ref: 2
SPRING
€ 3.00
3
4323105302
ref: 3
SPACER,BRAKE PEDAL BOSS
€ 7.00
4
0832211107
ref: 4
WASHER
€ 2.50
5-1
0910110020
ref: 5-1
MODEL Z/D/K/M
BOLT 10X52
€ 9.50
5-2
0911610121
ref: 5-2
MODEL N/R
BOLT(10X52)
€ 4.50
6
0411120208
ref: 6
PIN 20X20
€ 1.50
7-1
0912806028
ref: 7-1
MODEL Z/D/K/M
SCREW(6X23)
€ 2.00
7-2
0910006009
ref: 7-2
MODEL N/R
BOLT(6X23)
€ 1.50
8-1
0831011067
ref: 8-1
MODEL Z/D/K/M/N
NUT 6MM
€ 2.50
8-2
0831000063
ref: 8-2
MODEL R
NUT 6MM
€ 2.00
9-1
4330026500
ref: 9-1
MODEL Z/D/K
ROD ASSEMBLY,REAR BRAKE
€ 18.50
9-2
4330026501
ref: 9-2
MODEL M/R
ROD ASSY,RR BRAKE
€ 18.50
9-3
4330026510
ref: 9-3
E30
ROD ASSY,RR BRAKE
€ 18.50
10-1
0832221067
ref: 10-1
MODEL Z/D/K/M/N
WASHER
€ 2.00
10-2
0832201063
ref: 10-2
MODEL R
WASHER
€ 2.00
11
0944009004
ref: 11
SPRING
€ 2.00
12
0920911002
ref: 12
PIN(11X18)
€ 2.00
13-1
0915006001
ref: 13-1
MODEL Z
NUT
€ 3.50
13-2
0915006009
ref: 13-2
MODEL D/K/M/N/R
NUT (6MM)
€ 3.50
14
0920006013
ref: 14
PIN(L:13.5)
€ 2.00
15-1
0832221067
ref: 15-1
MODEL Z/D/K/M/N
WASHER
€ 2.00
15-2
0832201063
ref: 15-2
MODEL R
WASHER
€ 2.00
16
0411120208
ref: 16
PIN 20X20
€ 1.50
