REAR COMBINATION LAMP

GN125 1994 (R) (E01 E02 E04 E21 E34)

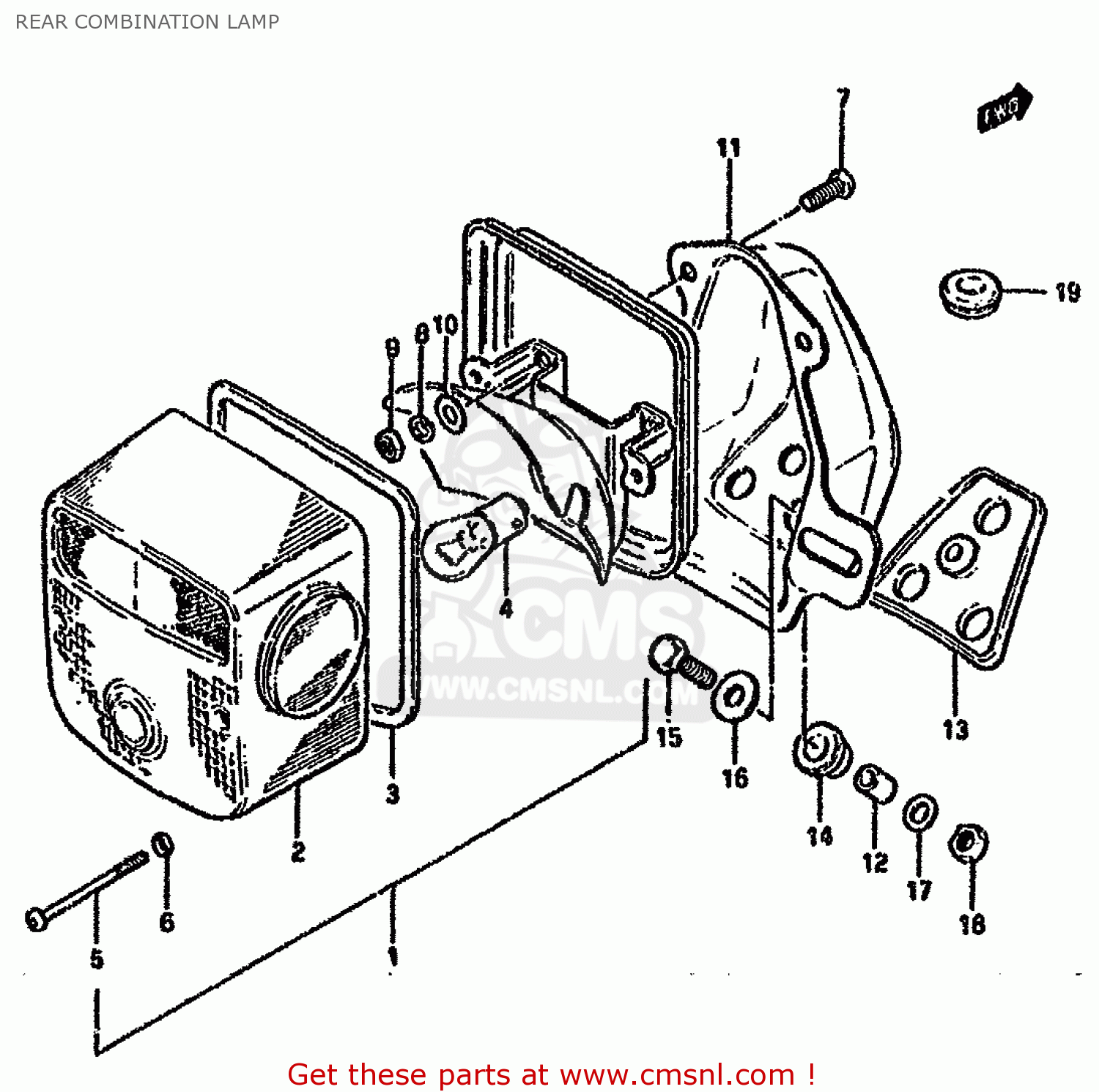

Rear combination lamp diagram GN125 1994 (R) (E01 E02 E04 E21 E34)

REAR COMBINATION LAMP GN125 1994 (R) (E01 E02 E04 E21 E34)
REAR COMBINATION LAMP GN125 1994 (R) (E01 E02 E04 E21 E34)
REAR COMBINATION LAMP GN125 1994 (R) (E01 E02 E04 E21 E34)
prices are in EUR
ref
part #
description
quantity
1-1
3572005310
ref: 1-1
MODEL Z/D/K/M
LAMP UNIT,TAIL
€ 115.50
1-2
3572005311
ref: 1-2
MODEL R
LAMP UNIT,TAIL
€ 115.50
2-1
3571248623
ref: 2-1
MODEL Z/D/K/M
LENS
3571248623
€ 66.00
2-2
3571248624
ref: 2-2
MODEL R
LENS,RR COMBIN
€ 66.00
3
3571330510
ref: 3
GASKET (NAS)
3571330510
€ 6.00
4
0947112035
ref: 4
BULB(12V23W)
0947112035
€ 5.50
5
0912504002
ref: 5
SCREW (4X55)
0912504002
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0211205128
ref: 7
SCREW
€ 2.50
8
0832121057
ref: 8
LOCK WASHER
0832121057
€ 2.00
9
0831011057
ref: 9
NUT 5MM
0831011057
€ 2.50
10
0832221057
ref: 10
WASHER
0832221057
€ 2.50
11
3573026470
ref: 11
BRACKET UNIT,TAIL LAMP
3573026470
€ 91.00
12
3576626470
ref: 12
SPACER
3576626470
€ 2.00
13
3576526470
ref: 13
CUSHION
3576526470
€ 10.00
14
3576426470
ref: 14
CUSHION
3576426470
€ 2.50
15-1
0110706257
ref: 15-1
MODEL Z/D
BOLT
€ 2.00
15-2
0110706207
ref: 15-2
MODEL K
BOLT
0110706207
€ 2.00
15-3
0911606011
ref: 15-3
MODEL M/R
BOLT 6X20
€ 2.00
16
0916006027
ref: 16
WASHER (6.5X20X1.2)
0916006027
€ 2.00
17
0832221066
ref: 17
WASHER, LOWER
0832221066
€ 2.00
18
0831012066
ref: 18
NUT
0831012066
€ 2.00
19
0930809004
ref: 19
GROMMET
€ 0.00
