SEAT

GN125 1994 (R) (E01 E02 E04 E21 E34)

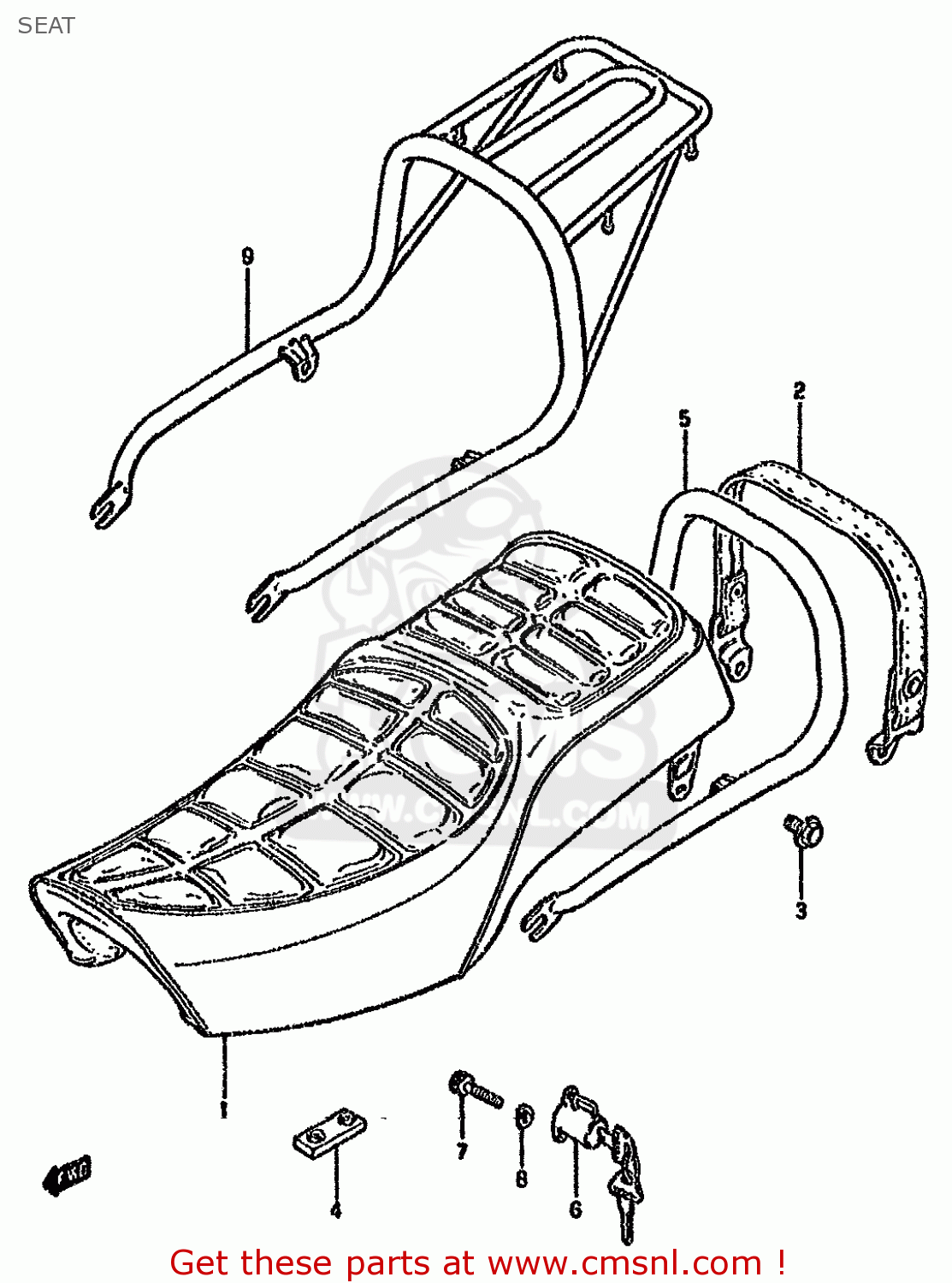

Seat diagram GN125 1994 (R) (E01 E02 E04 E21 E34)

SEAT GN125 1994 (R) (E01 E02 E04 E21 E34)
SEAT GN125 1994 (R) (E01 E02 E04 E21 E34)
SEAT GN125 1994 (R) (E01 E02 E04 E21 E34)
prices are in EUR
ref
part #
description
quantity
1-1
451000531047U
ref: 1-1
MODEL Z
SEAT ASSEMBLY
€ 287.00
1-2
451000532148H
ref: 1-2
MODEL D/K/M/N/R-4510
SEAT ASSY
€ 287.00
2-1
451800530047U
ref: 2-1
MODEL Z E1,E2,E4,E21
BAND,SEAT
€ 25.50
2-2
451800532048H
ref: 2-2
MODEL D/K/M/N/R E1,E
BAND ASSY,SEAT GRIP
451800532048H
€ 25.50
3-1
0151708165
ref: 3-1
MODEL Z/D/K/M/N
BOLT, LOWER
0151708165
€ 3.00
3-2
0155008163
ref: 3-2
MODEL R
BOLT
0155008163
€ 3.00
4
0932108009
ref: 4
CUSHION
0932108009
€ 4.00
5
4621005300
ref: 5
HANDLE,PILLION RIDER
4621005300
€ 686.00
6-1
9570037400KEY
ref: 6-1
MODEL Z/D/K
LOCK SET,HELMET
€ 36.00
6-2
9570037810
ref: 6-2
MODEL M/N/R
LOCK SET,HELMET
€ 36.00
7-1
0910606024
ref: 7-1
MODEL Z/D/K/M/N
BOLT 6X11
0910606024
€ 2.50
7-2
0913906069
ref: 7-2
MODEL R
SCREW
€ 2.50
8
0832121067
ref: 8
WASHER,LOCK
0832121067
€ 2.50
9
4631005300
ref: 9
OPT
CARRIER
4631005300
€ 161.50
