AIR CLEANER
GN125E 1991 (M) SINGAPORE (E30)

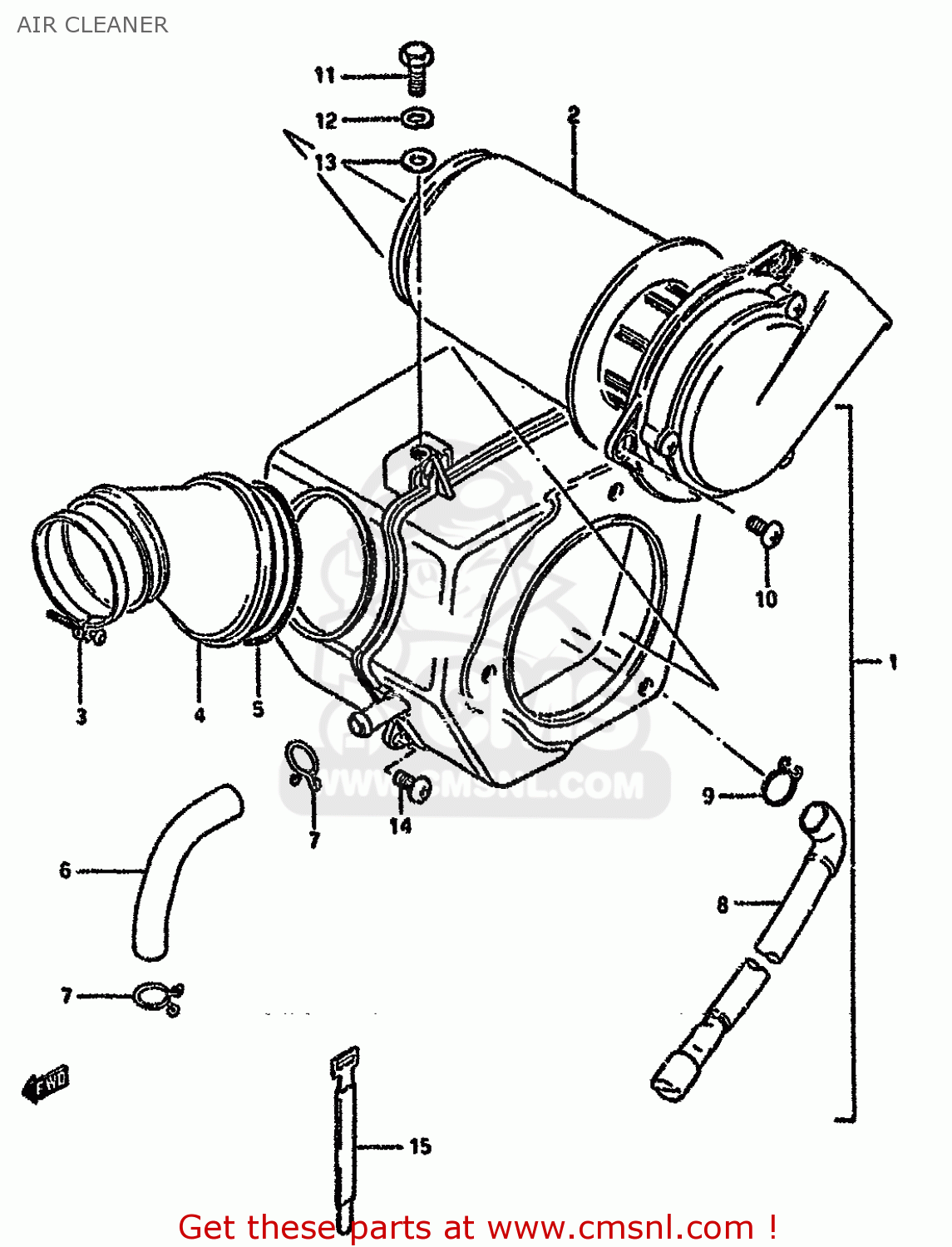

Air cleaner diagram GN125E 1991 (M) SINGAPORE (E30)
AIR CLEANER GN125E 1991 (M) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370005302
ref: 1-1
CLEANER ASSY,AIR
€ 119.00
1-2
1370005380
ref: 1-2
E22
CLEANER ASSY,AIR
€ 126.00
2
1378038301
ref: 2
FILTER
€ 21.50
3
0940256208
ref: 3
CLAMP
€ 3.50
4
1388105300
ref: 4
TUBE,OUTLET
€ 21.00
5
1382638300
ref: 5
CLAMP,AIR CLEANER SIDE
€ 3.00
6-1
1385305300
ref: 6-1
TUBE,BREATHER
€ 13.00
6-2
1385005380
ref: 6-2
E22
TUBE,BREATHER
€ 13.00
7
0940114401
ref: 7
CLIP
€ 2.00
8
1387021308
ref: 8
TUBE,DRAIN
€ 16.50
9
0940113409
ref: 9
CLIP
€ 2.50
10
0214205127
ref: 10
SCREW
€ 1.50
11
0110706167
ref: 11
BOLT
€ 3.00
12
0832121067
ref: 12
WASHER,LOCK
€ 2.50
13
0916006006
ref: 13
WASHER
€ 2.00
14
0214206167
ref: 14
SCREW
€ 2.00
15
0940711301
ref: 15
CLAMP L:110
€ 6.00
