BATTERY
GN125E 1991 (M) SINGAPORE (E30)

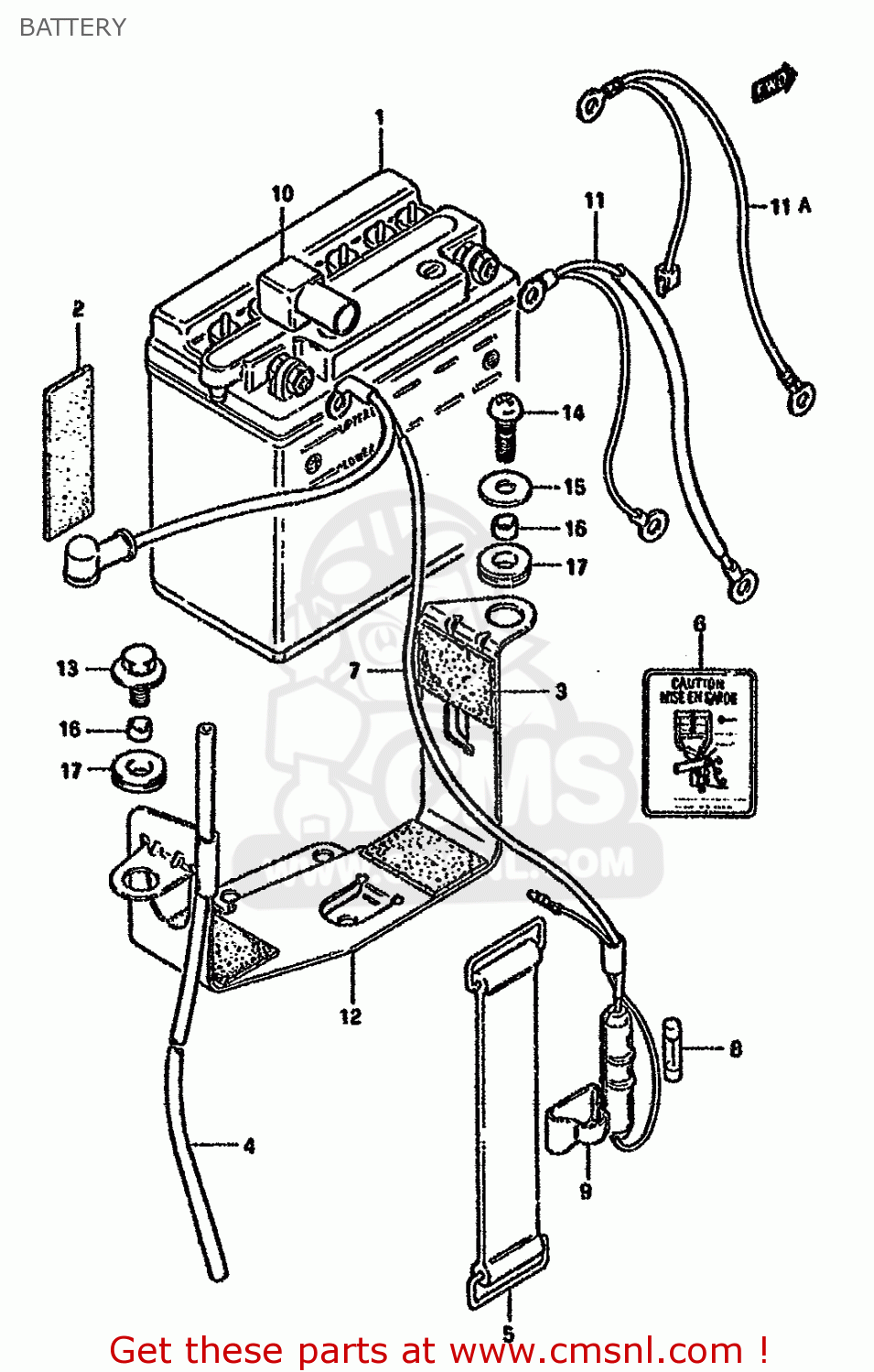

Battery diagram GN125E 1991 (M) SINGAPORE (E30)
BATTERY GN125E 1991 (M) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1
3361010310
ref: 1
BATTERY ASSY(YB7-A)
€ 81.50
2
3365137000
ref: 2
CUT AS REQUIRED PROF
PROTECTOR(170X95X3.0)
€ 5.00
3
3365137000
ref: 3
CUT AS REQUIRED PROF
PROTECTOR(170X95X3.0)
€ 5.00
4-1
3368031003
ref: 4-1
MODEL Z/D/K/M/N
HOSE,BATTERY EXHAUST
€ 4.50
4-2
3368016A010
ref: 4-2
MODEL R
HOSE,BATTERY EXHAUST
€ 0.00
5-1
0946200028
ref: 5-1
MODEL Z/D
BAND
€ 8.50
5-2
0946200020
ref: 5-2
MODEL K/M/N/R
BAND
€ 7.00
6
3369005360
ref: 6
PLATE,BATTERY CAUTION
€ 3.00
7
3674011500
ref: 7
MODEL Z/D/K/M/N
FUSE CASE AND PLUS CABLE
€ 18.00
8
0948115001
ref: 8
MODEL Z/D/K/M/N
FUSE(15A)
€ 3.00
9
3679146700
ref: 9
HOLDER,FUSE CASE
€ 9.00
10
3362445000
ref: 10
MODEL Z/D/K/M/N
CAP,TERMINAL
€ 5.50
11
3385034500
ref: 11
MODEL Z/D/K/M/N
LEAD WIRE,BATTERY(-)
€ 7.00
11A
3386005550
ref: 11A
MODEL R
WIRE,BATTERY MINUS LEAD
€ 10.50
12
4154038301
ref: 12
HOLDER,BATTERY
€ 18.50
13
0911606168
ref: 13
BOLT(6X16)
€ 2.50
14
0912906003
ref: 14
SCREW(6X21)
€ 2.00
15
0916006027
ref: 15
WASHER (6.5X20X1.2)
€ 2.00
16
0918006038
ref: 16
SPACER(6.1X9X7.5)
€ 2.00
17-1
0932008007
ref: 17-1
MODEL Z/D/K/M/N
CUSHION
€ 4.00
17-2
0932008021
ref: 17-2
MODEL R
CUSHION
€ 4.00
