FRONT FENDER-HEADLAMP HOUSING

GN125E 1991 (M) SINGAPORE (E30)

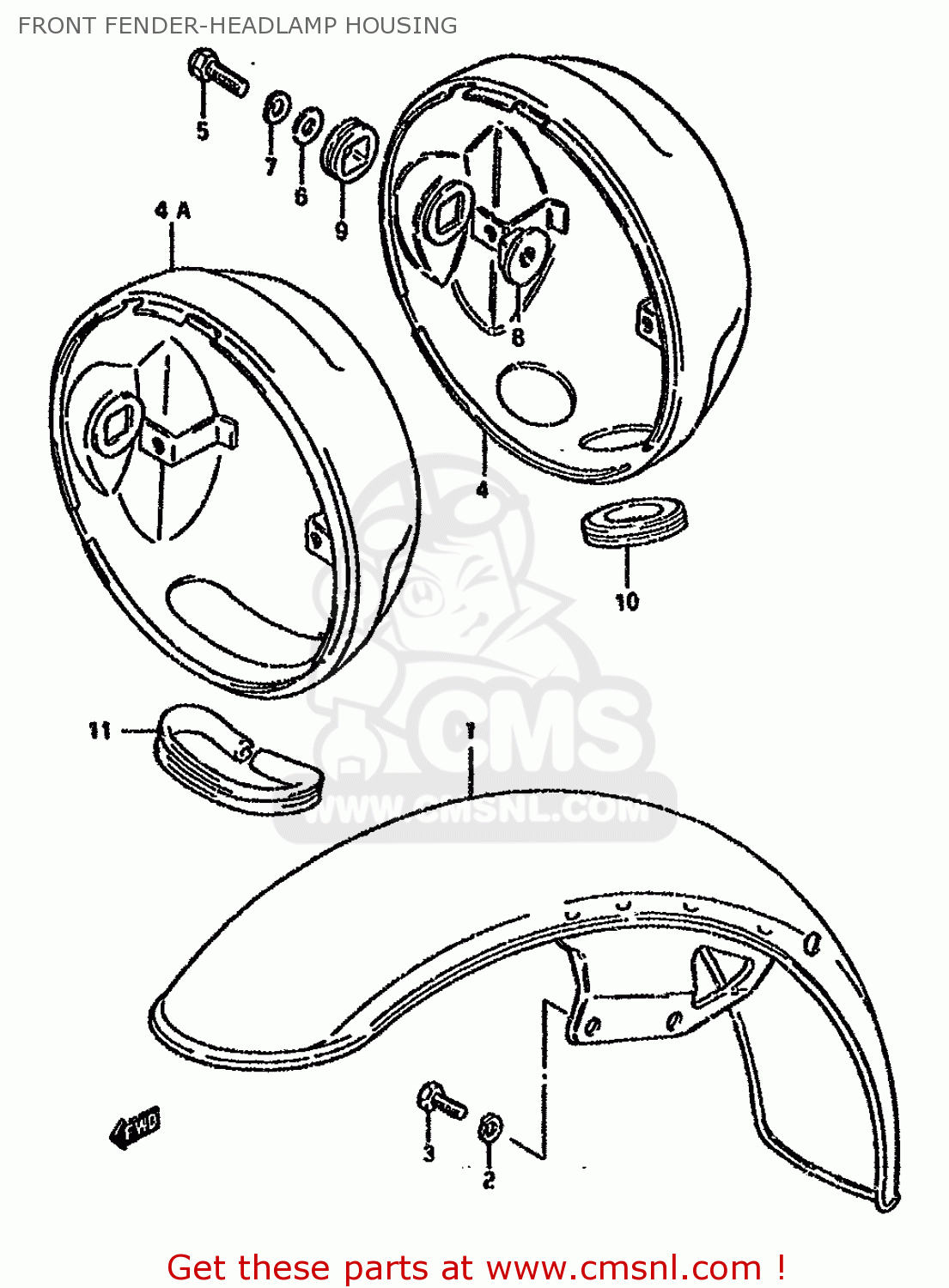

Front fender-headlamp housing diagram GN125E 1991 (M) SINGAPORE (E30)

FRONT FENDER-HEADLAMP HOUSING GN125E 1991 (M) SINGAPORE (E30)
FRONT FENDER-HEADLAMP HOUSING GN125E 1991 (M) SINGAPORE (E30)
FRONT FENDER-HEADLAMP HOUSING GN125E 1991 (M) SINGAPORE (E30)
prices are in EUR
ref
part #
description
quantity
1
5311005301
ref: 1
FENDER,FR
5311005301
€ 87.00
2
0832121088
ref: 2
MODEL Z/D/K
LOCK WASHER
0832121088
€ 2.00
3-1
0110708167
ref: 3-1
MODEL Z/D/K
BOLT,8X16
0110708167
€ 2.00
3-2
0113708168
ref: 3-2
MODEL M/N
BOLT
€ 2.50
3-3
0157008163
ref: 3-3
MODEL R
BOLT, UPPER
€ 2.00
4
5181044200
ref: 4
MODEL Z/D/K/M/N
HOUSING,HEADLAMP
5181044200
€ 76.50
4A
5181044201
ref: 4A
MODEL R
HOUSING,HEADLAMP
€ 76.50
5-1
0120408207
ref: 5-1
MODEL Z/D/K/M/N
BOLT
0120408207
€ 3.00
5-2
0126408207
ref: 5-2
MODEL R
BOLT
0126408207
€ 3.00
6
0832221088
ref: 6
MODEL Z/D/K/M/N
WASHER
0832221088
€ 2.00
7
0832121088
ref: 7
MODEL Z/D/K/M/N
LOCK WASHER
0832121088
€ 2.00
8
5182136200
ref: 8
SPACER,HEADLAMP HOUSING
5182136200
€ 7.50
9
5182727302
ref: 9
CUSHION,HEADLAMP HOUSING
5182727302
€ 3.00
10
5184531031
ref: 10
MODEL Z/D/K/M/N
GROMMET,HEADLAMP HOUSING
5184531031
€ 4.00
11
9463133C01
ref: 11
MODEL R
MOLDING WINDSCREEN
9463133C01
€ 10.00
